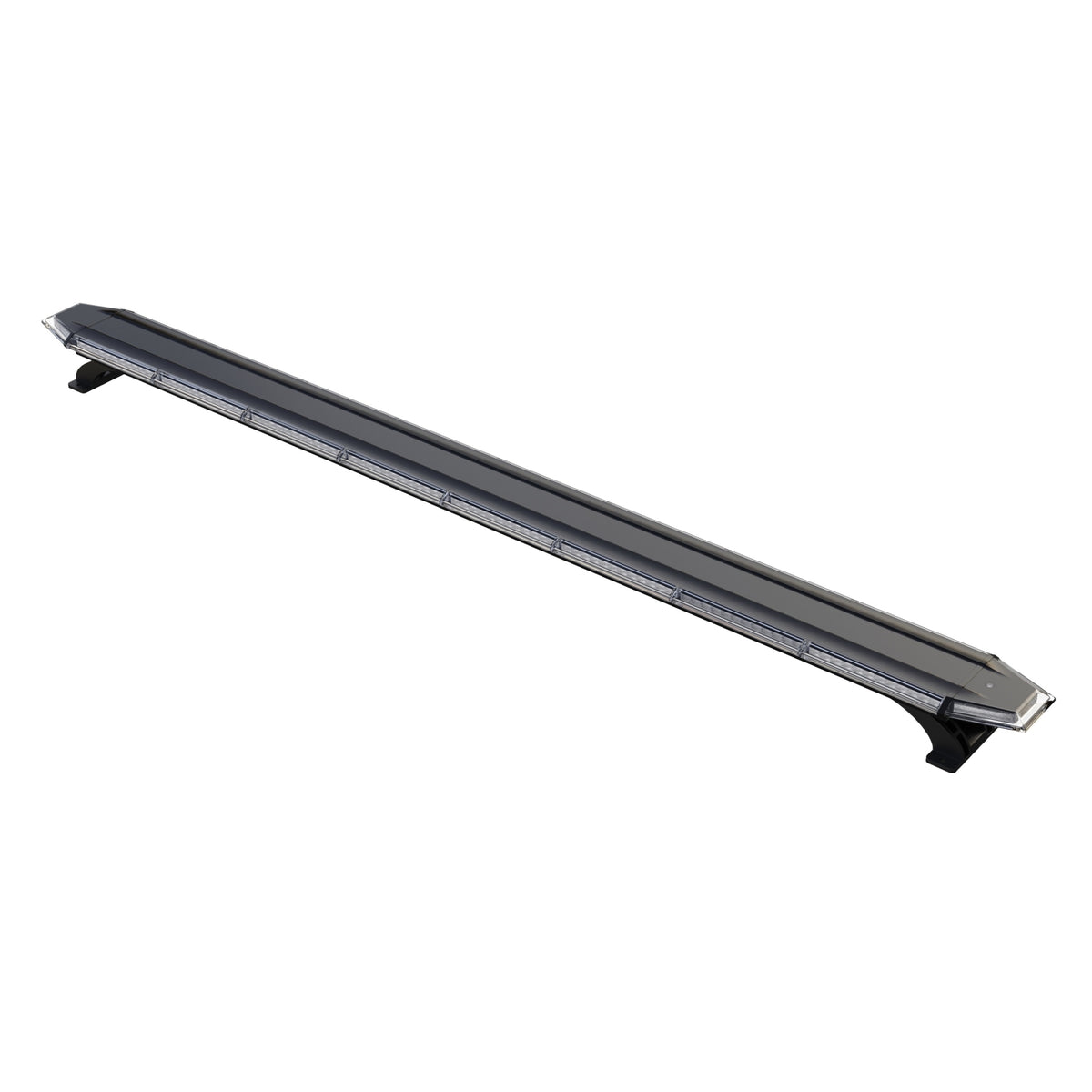

Ultra Slim Beacon Bar 12v 24v Auto dim sensor. 2 options 1200mm / 1370mm

Product description

The orange LED emergency light is designed for warning light signaling on trucks, vans, roadside assistance, construction and agricultural equipment, specialized and emergency vehicles.

The lamp operates in a wide range of 11-50V and has 14 light signaling modes , including flashing, rotating, sequential cruise modes and dynamic arrow modes.

The built-in light sensor allows automatic switching between day and night mode according to the ambient light. The maximum power reaches 83W in day modes .

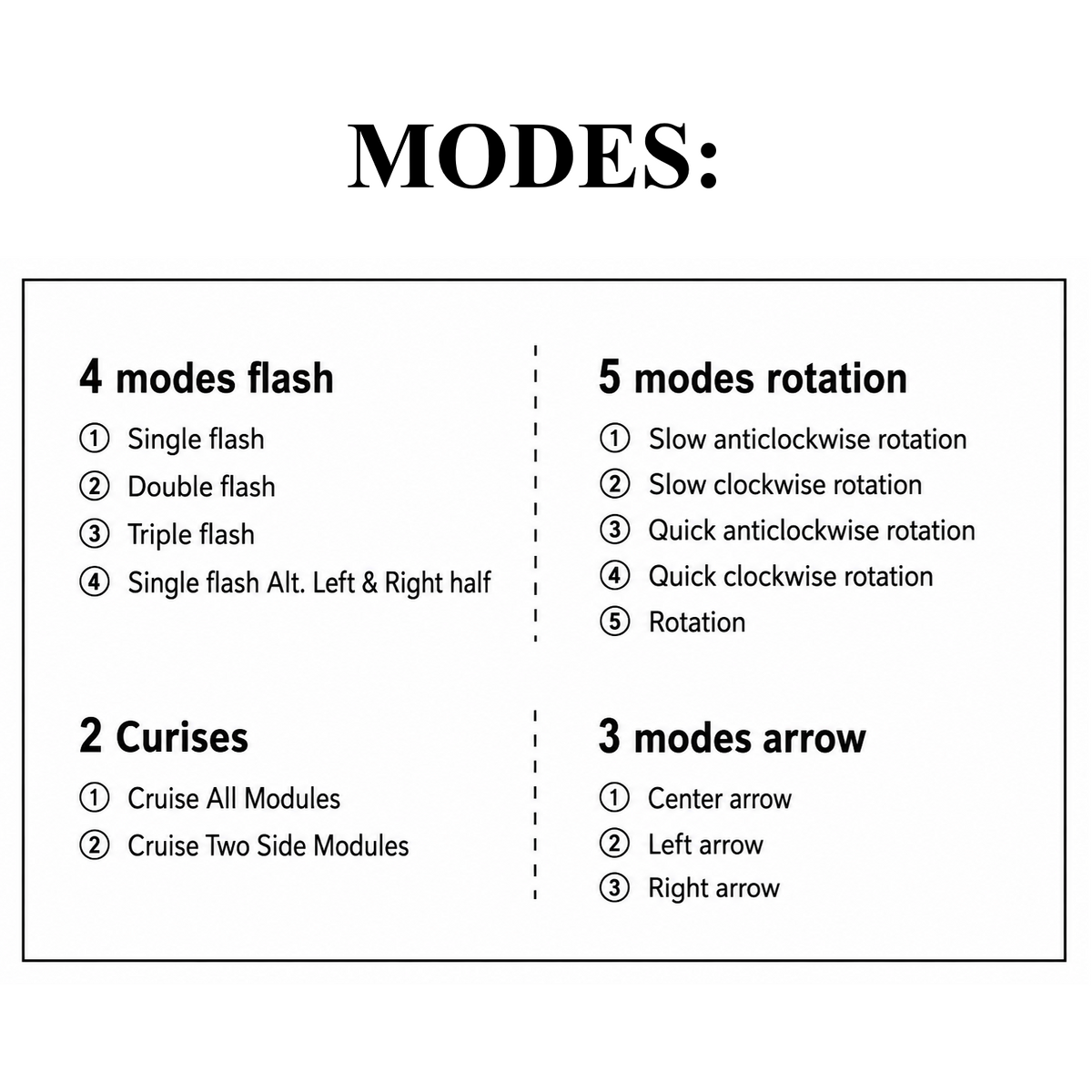

14 light signaling modes

The lamp has a total of 14 modes , divided into four groups:

4 flashing modes:

1. Single Flash
2. Double Flash – double flash
3. Triple Flash – triple flash
4. Single Flash Alternate Left & Right Half – alternating single flash between the left and right halves

5 rotation modes:

1. Slow Anticlockwise Rotation
2. Slow Clockwise Rotation
3. Quick Anticlockwise Rotation
4. Quick Clockwise Rotation
5. Rotation – rotation mode

2 consecutive Cruise modes:

1. Cruise All Modules – sequential operation of all LED modules
2. Cruise Two Side Modules – sequential operation of both side modules

3 dynamic arrow modes:

1. Center Arrow – dynamic signaling to the center
2. Left Arrow – dynamic left arrow
3. Right Arrow – dynamic right arrow

Automatic day and night mode

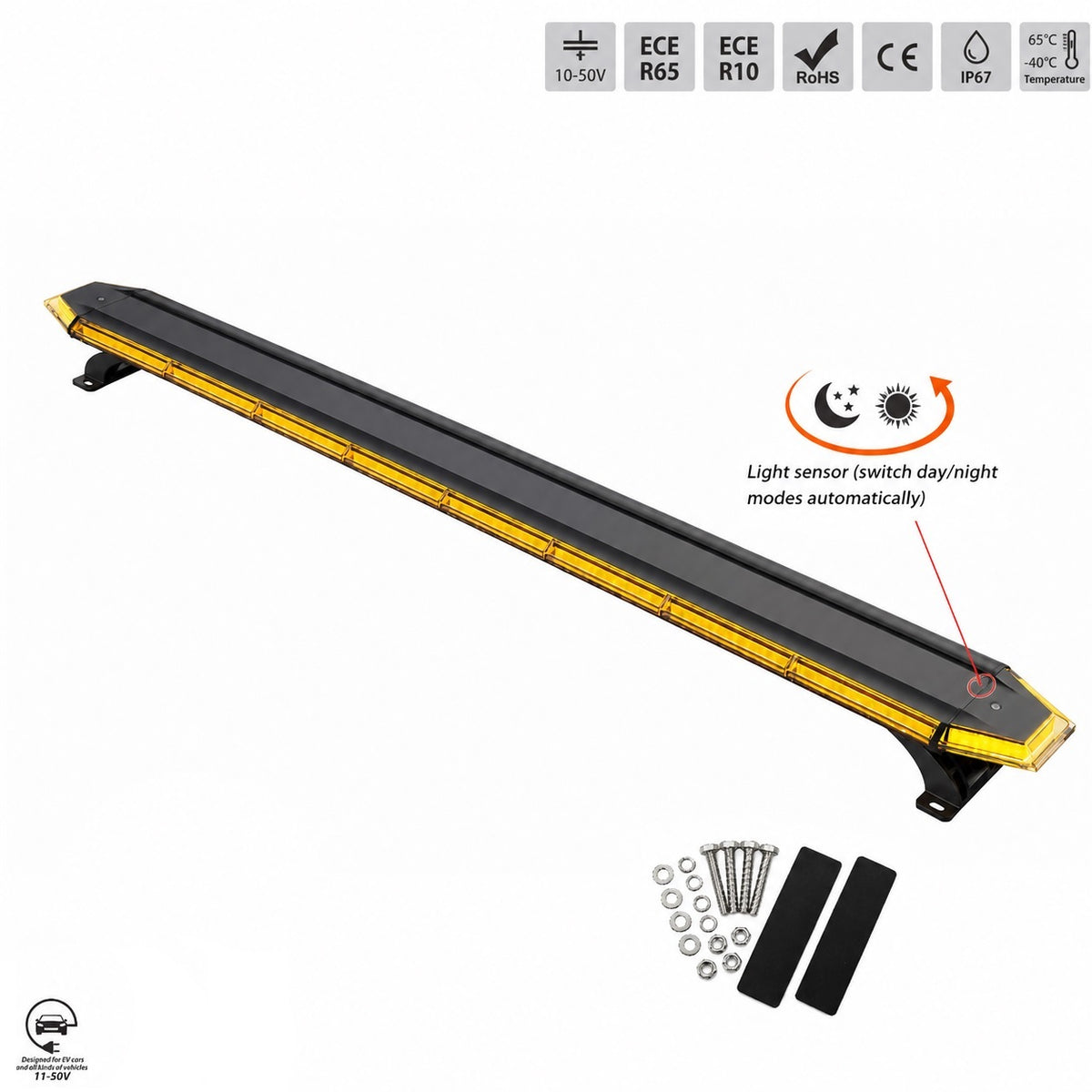

A light sensor is integrated into the housing , which detects the ambient light level and allows automatic switching between day and night mode .

The power adapts to the mode:

• Day modes: 58–83W
• Night mode: 25–30W

This provides high intensity warning light during the day and lower intensity when operating at night.

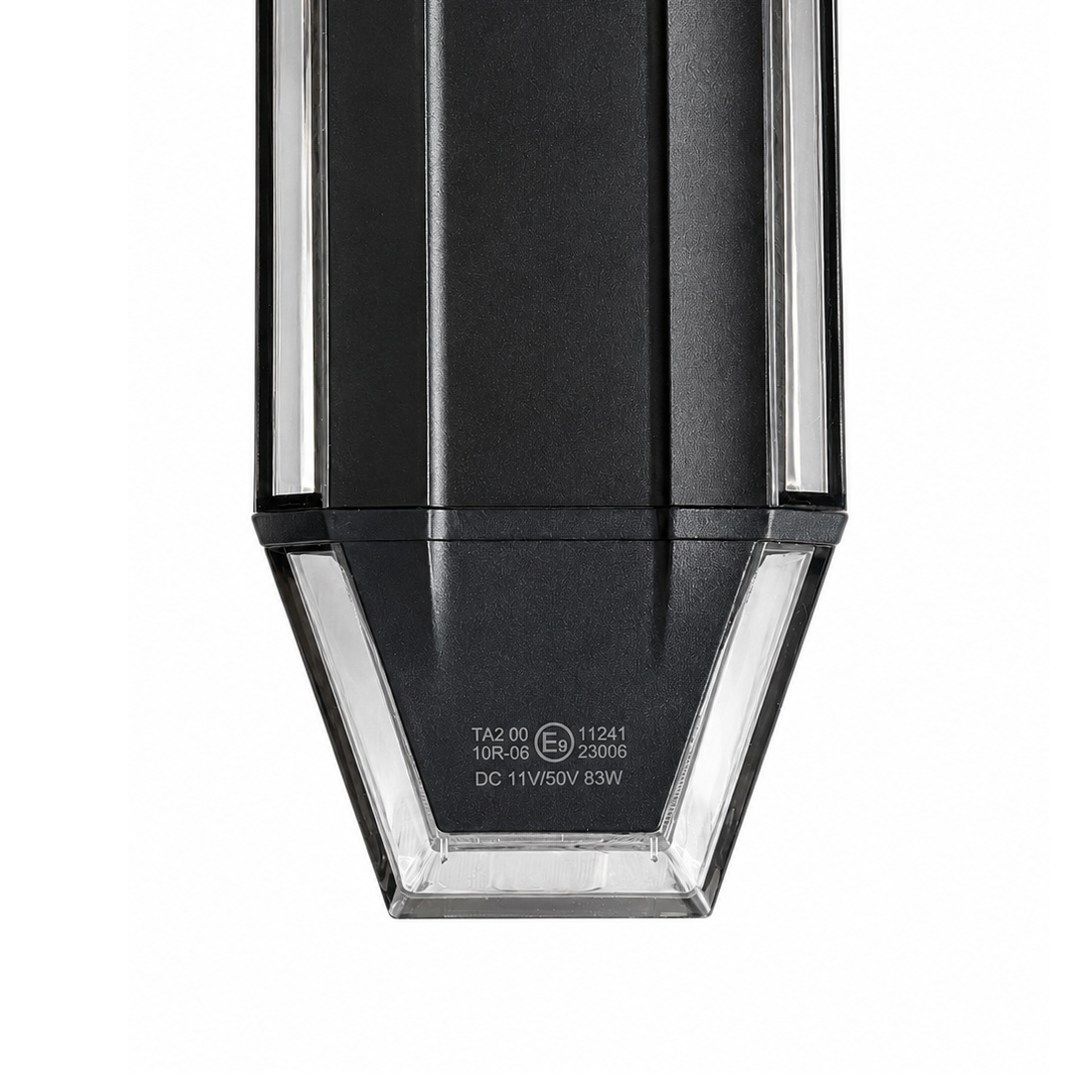

E-Mark E9 and certification

The emergency light has E-Mark E9 and is certified according to:

• ECE R65 – requirements for special warning lights
• ECE R10 – electromagnetic compatibility

IP67 protection

The lamp has an IP67 protection class , providing protection against dust and water ingress.

The operating temperature range is from -40°C to +65°C , which allows the lamp to be used in harsh weather and operating conditions.

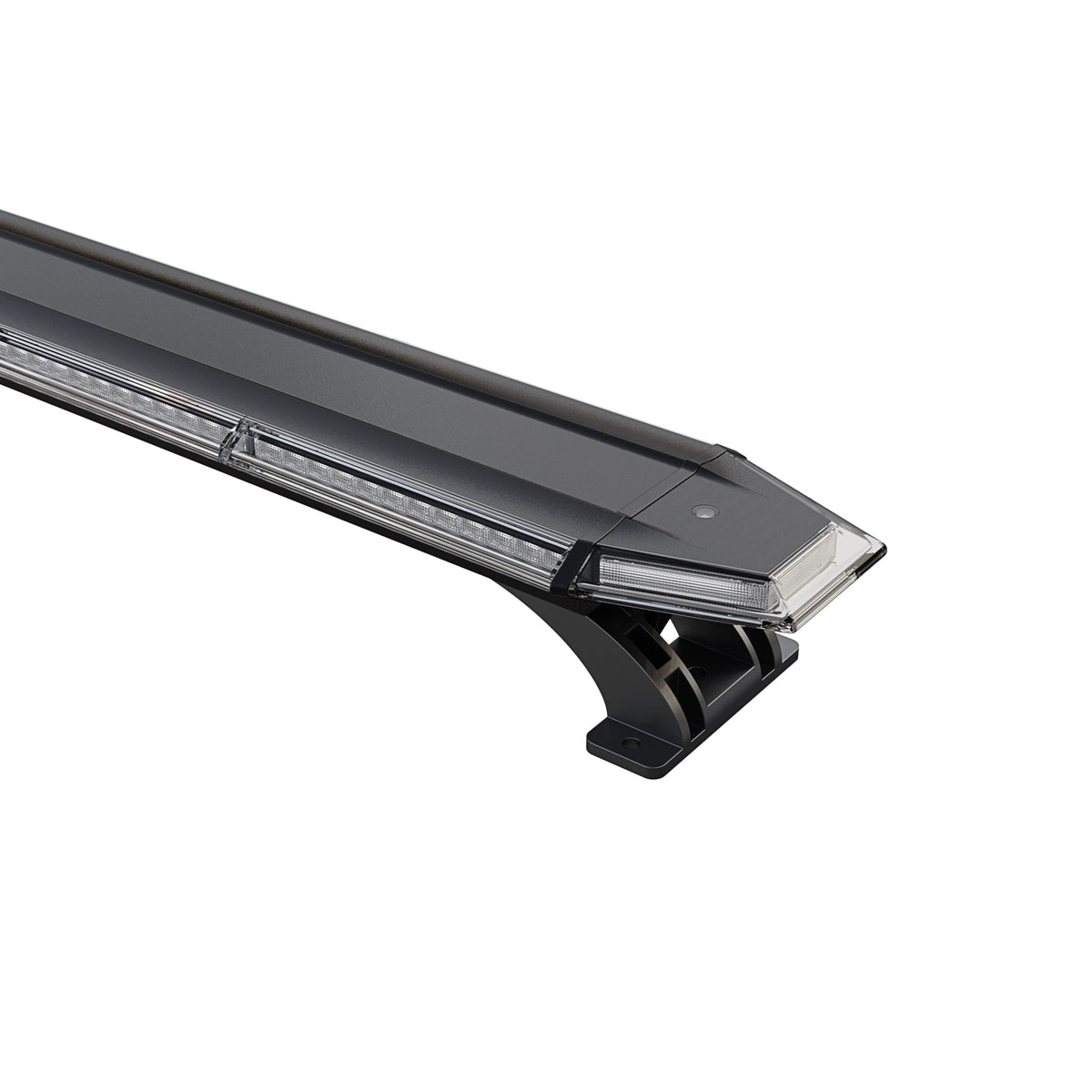

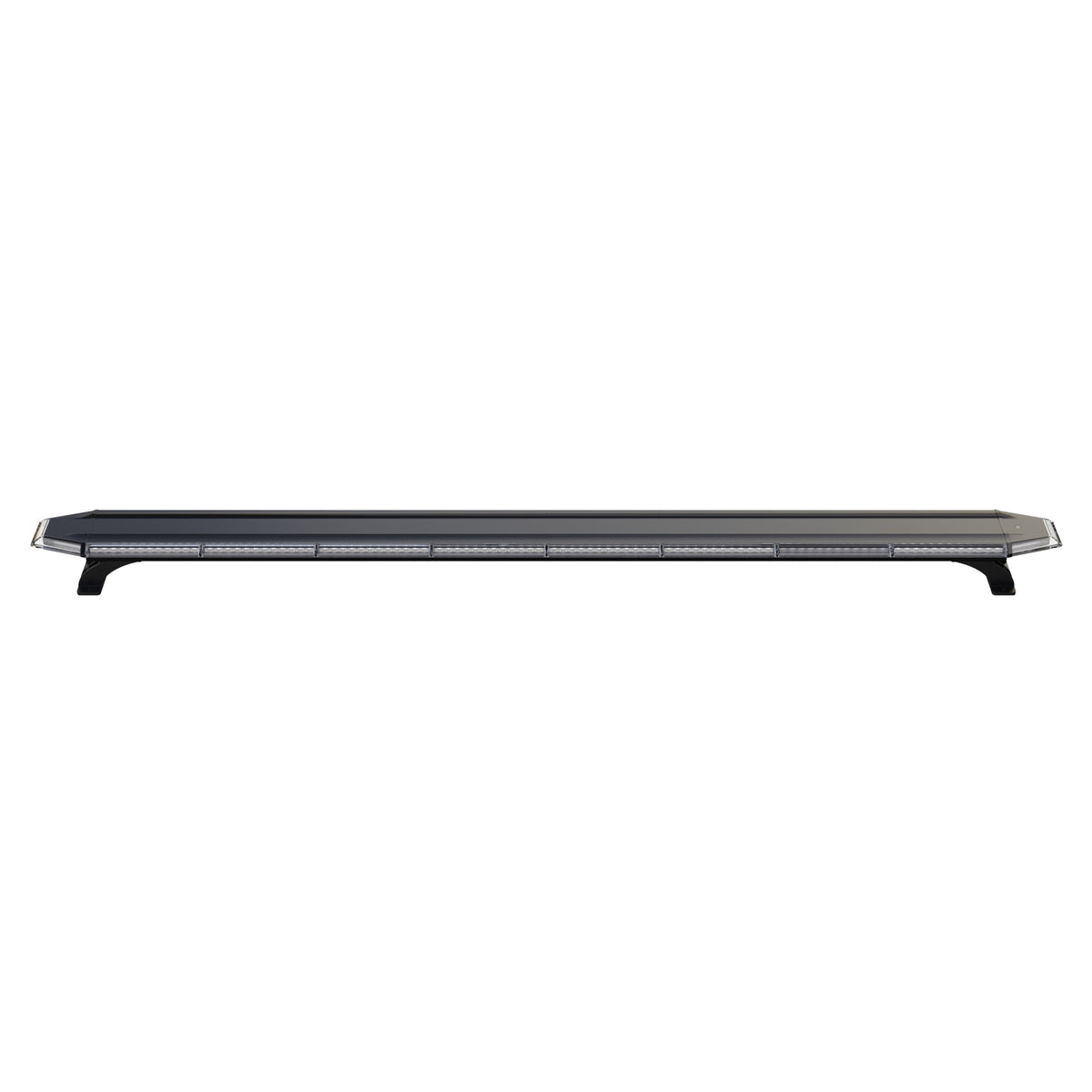

Low-profile design and stable mounting

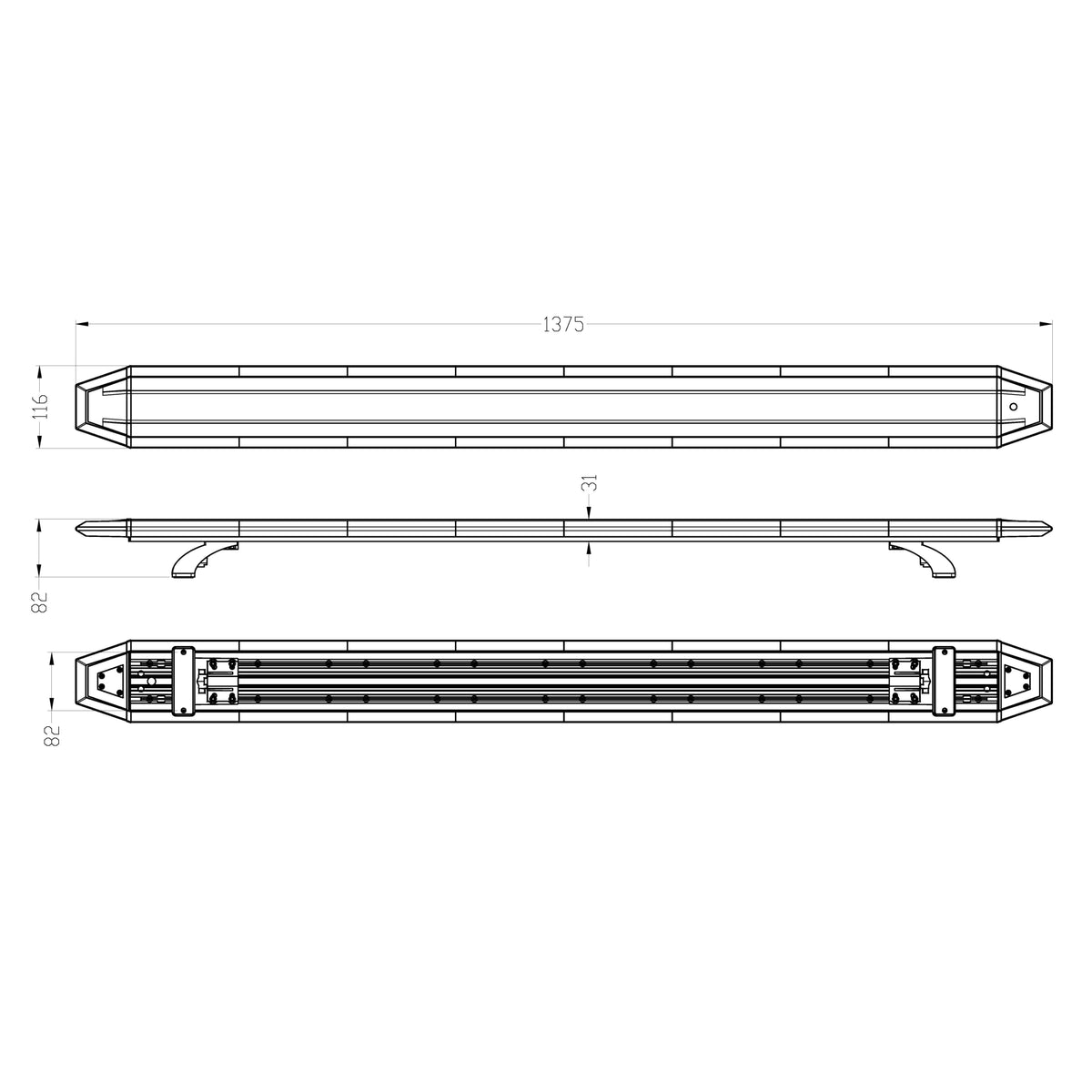

With a length of 137.5 cm , a width of 11.6 cm and a height of the main body of only 3.1 cm , the lamp has a low-profile design, suitable for installation on various types of vehicles.

It is mounted using two fixed stands , and the total height of the lamp with the stands is 8.2 cm .

The kit includes the necessary mounting hardware .

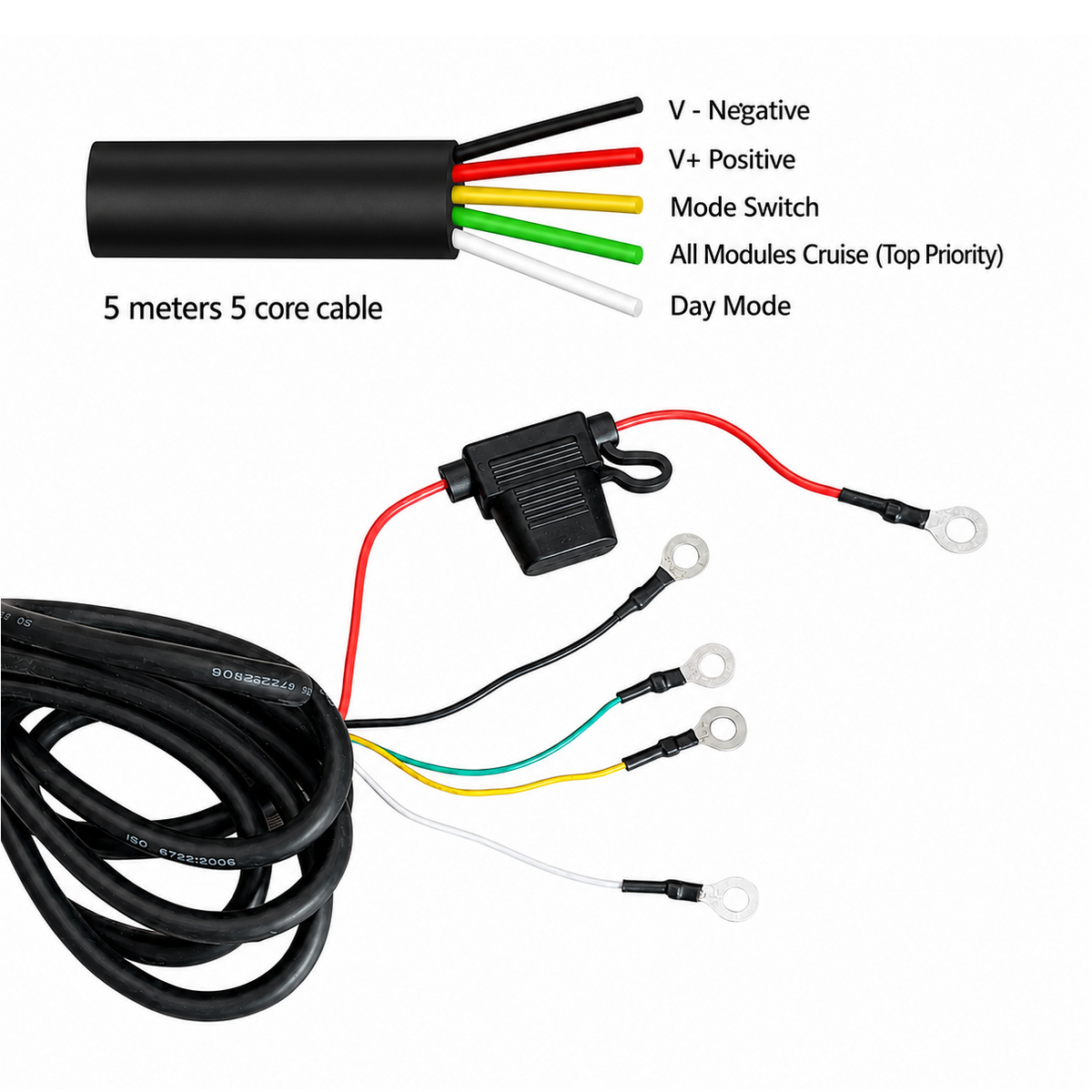

5-meter cable and connection

The lamp is equipped with a 5-meter 5-core cable , allowing power supply and control of the various lighting functions.

Connecting the wires:

• Black: V- / negative
• Red: V+ / positive
• Yellow: Mode Switch – switching between modes
• Green: All Modules Cruise (Top Priority) – all modules mode with priority
• White: Day Mode

Technical characteristics

• Light color: Amber
• Operating voltage: 11–50V
• Maximum power: 83W
• Power in daytime modes: 58–83W
• Power in night modes: 25–30W
• Number of modes: 14
• Flashing modes: 4
• Rotation modes: 5
• Sequential Cruise Modes: 2
• Dynamic arrow modes: 3
• Light sensor: Yes
• Automatic day/night mode: Yes
• E-Mark: E9
• Certification: ECE R65, ECE R10
• Protection class: IP67
• Operating temperature: -40°C to +65°C
• Cable length: 5 m
• Cable: 5-core
• Length: 137.5 cm / 120mm
• Width: 11.6 cm
• Body height: 3.1 cm
• Total height with stands: 8.2 cm
• Installation: with 2 fixed stands

Included

• 1 × orange LED emergency light
• 2 × mounting brackets
• Mounting fasteners
• 5 m 5-core connection cable
