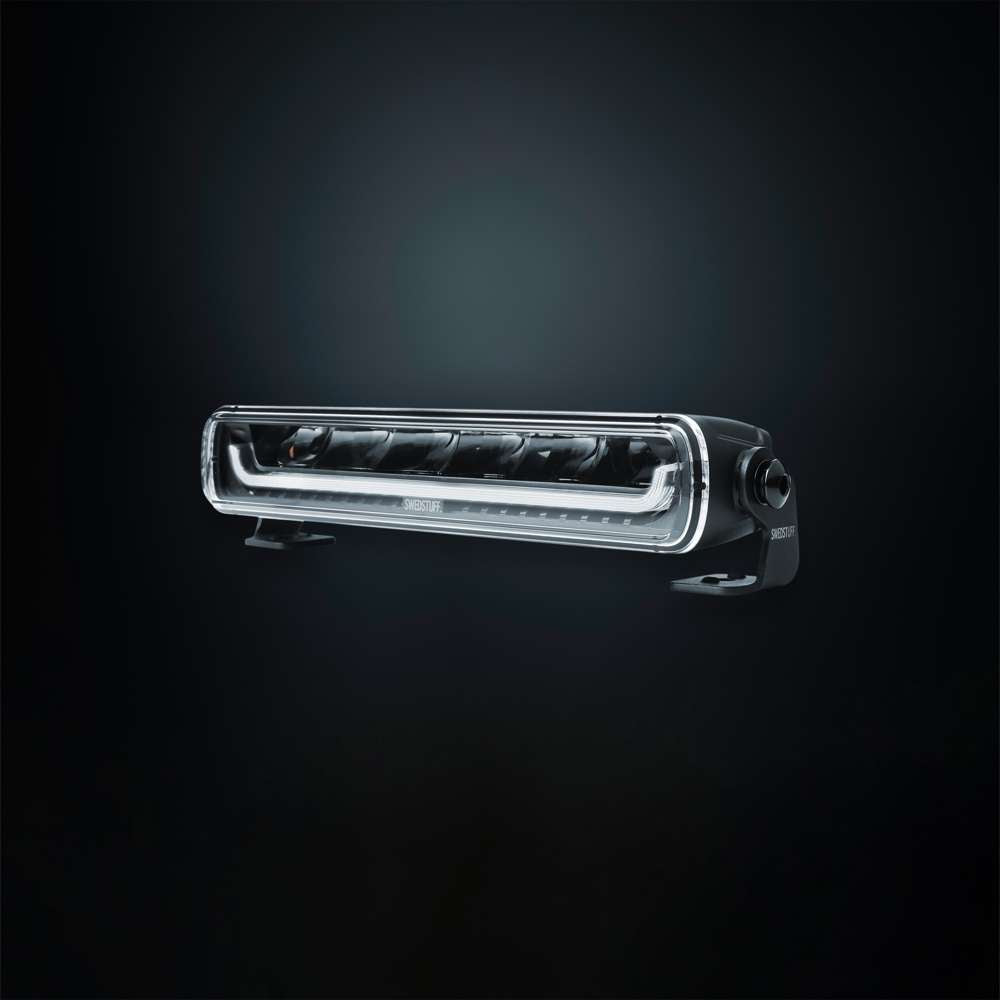

SWEDSTUFF SR LED BAR 22"

LED Bar 20” SR – Superior LED Lighting for Any Terrain:The LED Bar 20” SR offers top-tier performance, delivering powerful lighting that enhances visibility and safety in any environment. This LED bar is engineered for reliability and durability, making it a versatile choice for off-road adventures, work environments, or emergency vehicles. Key Features: • High Brightness Output: With a theoretical lumen output of 5300 and an actual lumen output of 5100, this LED bar provides intense, clear lighting for maximum visibility. • Optimized Beam Pattern: Designed to deliver a well-balanced, wide beam, it ensures superior coverage for both on- and off-road applications. • Dual Position Lights: Integrated white and amber position lights enhance both visibility and the overall look of your vehicle. • Durable Build: Featuring an aluminum housing and polycarbonate lens, this LED bar is built to endure harsh weather conditions and heavy use. • IP67 & IP69K Rated: Fully sealed against dust and water ingress, offering reliable performance even in the most extreme conditions.Ideal Applications: • Off-road and 4x4 vehicles • Heavy-duty trucks • Emergency and rescue vehicles • Construction and agricultural

Unit   PCS
Voltage (DC)   10-32V DC
Theoretical effect   85W
Consumption   75W

Functions

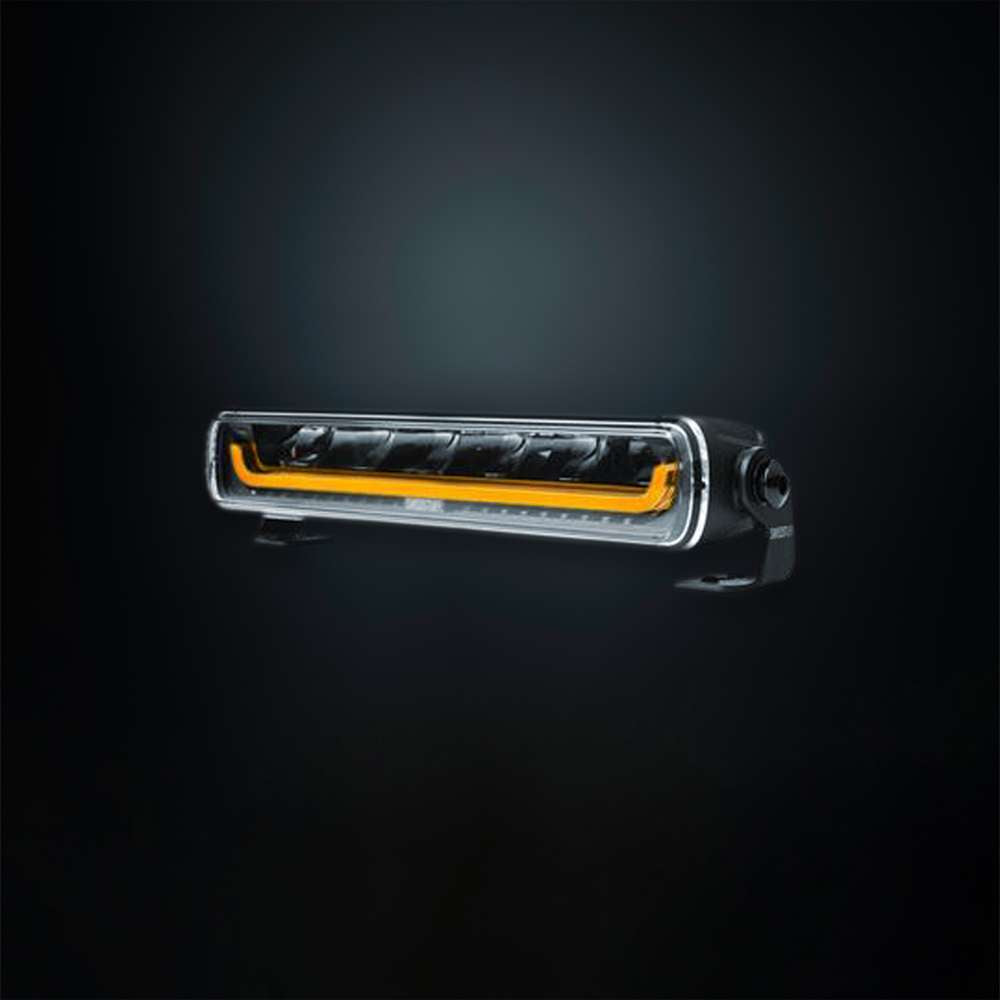

Amber Pos.
White pos.
Driving beam

Consumption specific function
White pos. 2W
Amber pos. 2W
Driving 75W

Theoretical lumen   6000lm
Actual lumen   5900lm

1 lux @ 353m
Color temperature   5700K
Beam pattern   Optimized beam

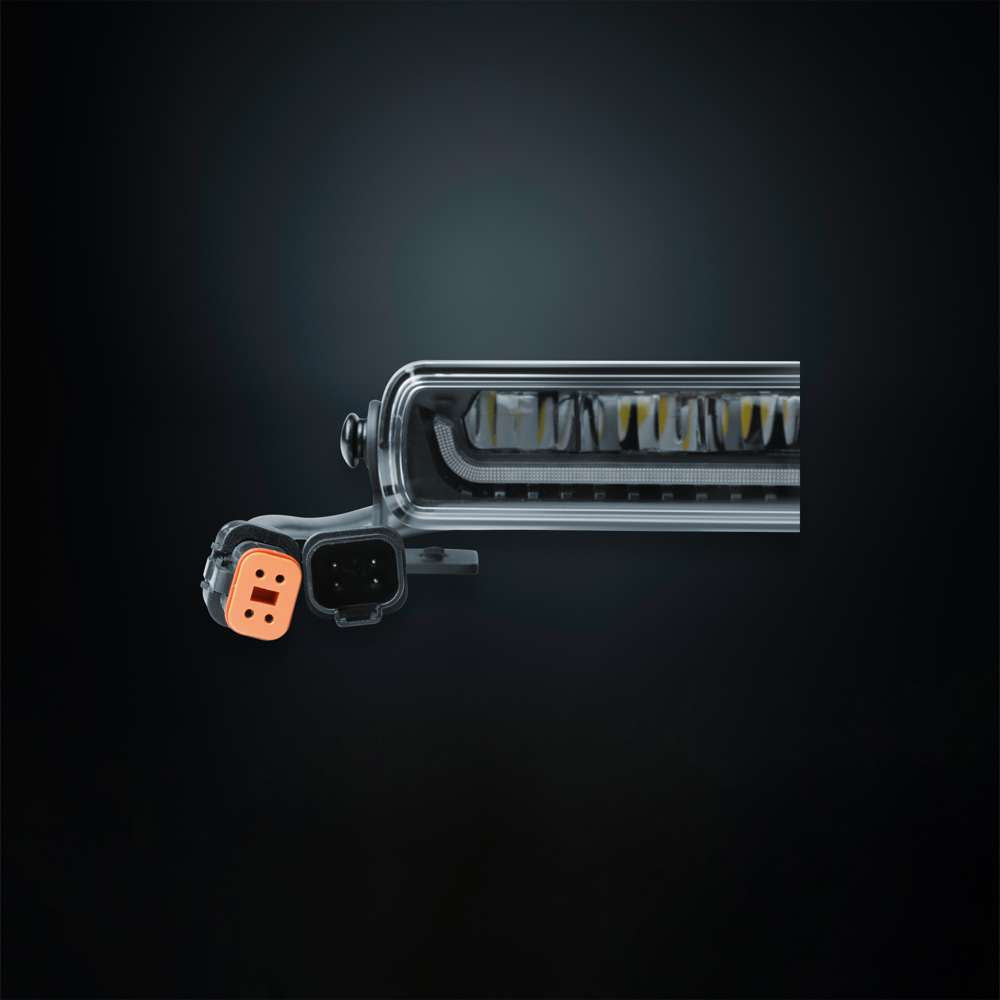

Connection   DT-4PIN
Cable length   1000mm
Color housing   Black
Color lens   Clear
Color LED's   White | Amber
Material bracket   Stainless steel for side
Aluminium for back   Material housing/chassi   Aluminium   Material lens   Polycarbonate
Length   468.4mm
Depth   76mm
Height   47mm
Height including bracket   62mm
Weight   1.44kg
IP-class   IP67/69K
Operating temperature   -35 - +60°°C

E-approved
Yes
ECE approval
R10.06
R148
R149
Reference number
45
Variable size   20"
