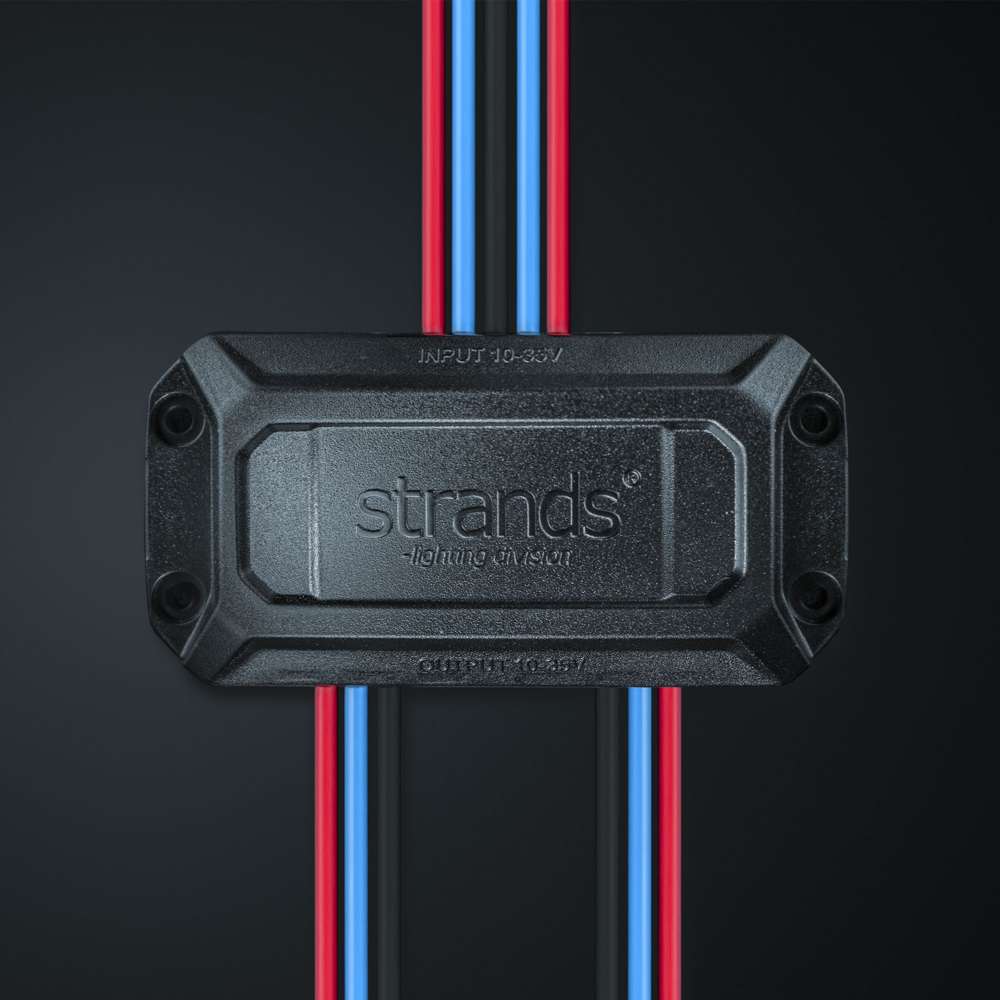

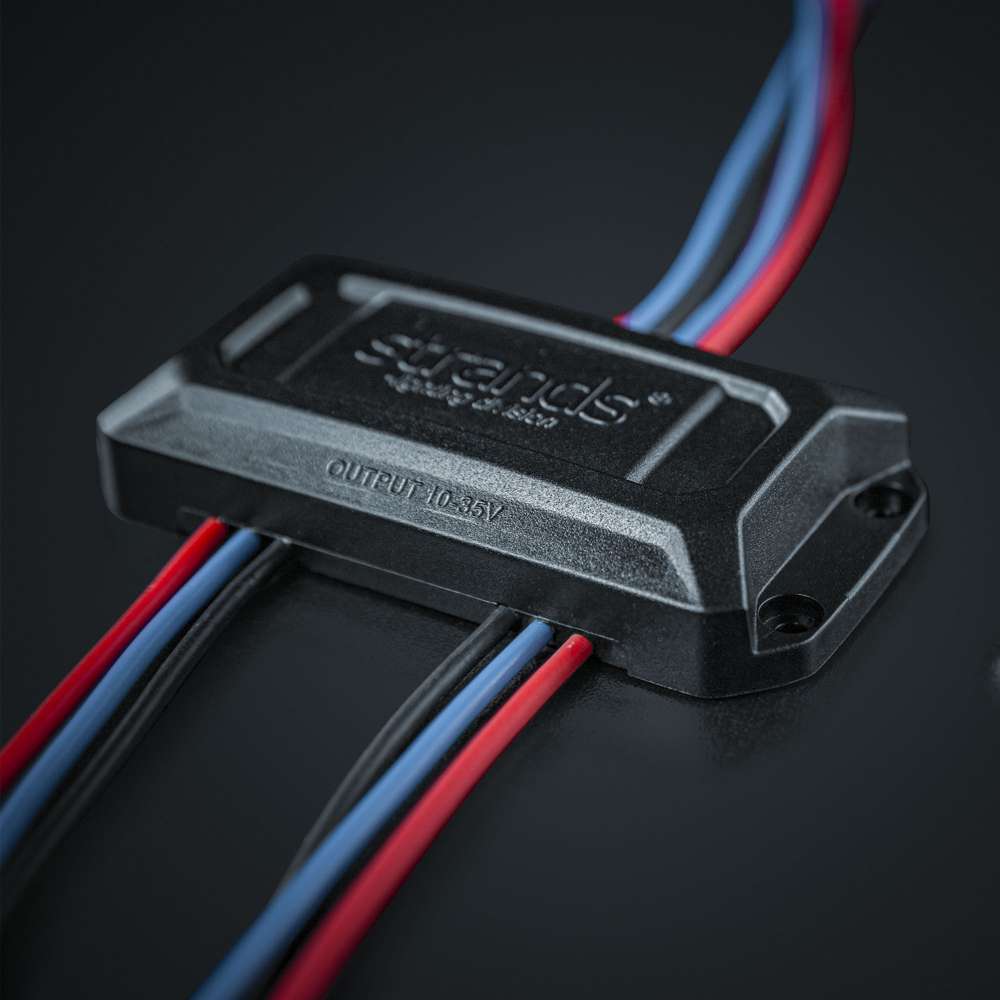

STRANDS PRO INDICATOR RELAY 2 X100W per channel | Indicator control SKU: 270493

Product Description

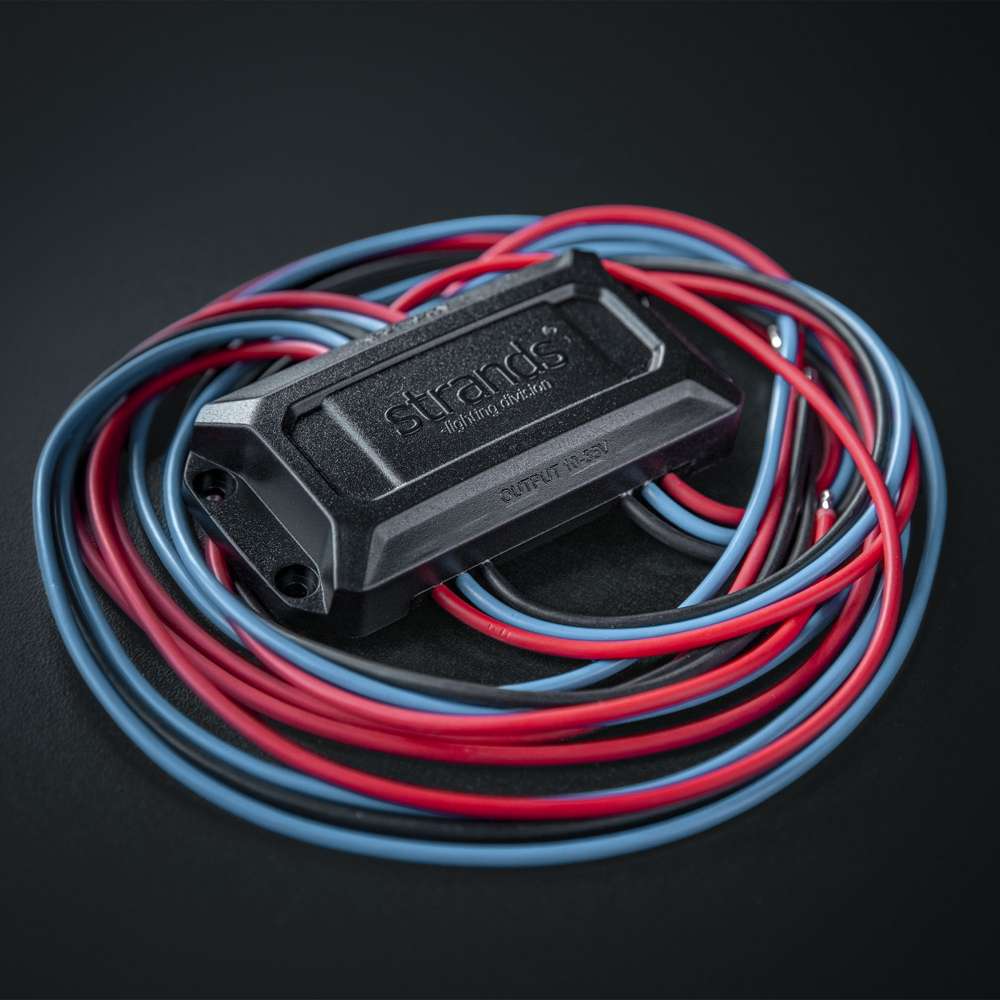

Strands Pro Indicator Relay features one input and two outputs. It synchronizes turn signals and position lights, and allows independent control of the left and right sides of the vehicle. Operating on 10–35 V systems, it features two output channels with a maximum load of 100 W per output (2 × 100 W), making it ideal for coordinating multiple lamps from a single control point. With an IP68 rating, a 500 mm cable, and mounting points with 25/90 mm CC measurement, it is built for reliable performance in demanding environments. Mounting screws are included.

Synchronize turn signals and position lights

The relay features one input and two outputs, allowing independent control of the left and right sides of the vehicle. It is designed to synchronize turn signal and position light functions across multiple connected lamps, creating a clean and consistent lighting pattern.

• One input, two outputs: Separate outputs for left and right side lighting
• Turn signal control: Manages synchronized indicator functionality
• Position light synchronization: Coordinates connected position lights for a uniform appearance
• Expandable setup: Connect multiple lamps to each channel

Built for professional installations

Designed for commercial vehicles, trucks, and custom lighting installations, the Strands Pro Indicator Relay offers reliable operation and easy integration.

• 10–35 V compatibility: Suitable for a wide range of vehicle electrical systems
• 100 W per output: Supports up to 200 W total load
• 500 mm cable: Simplifies installation and connection
• IP68 rated: Protected against dust and water ingress
• 25/90 mm CC measurement: Flexible mounting options

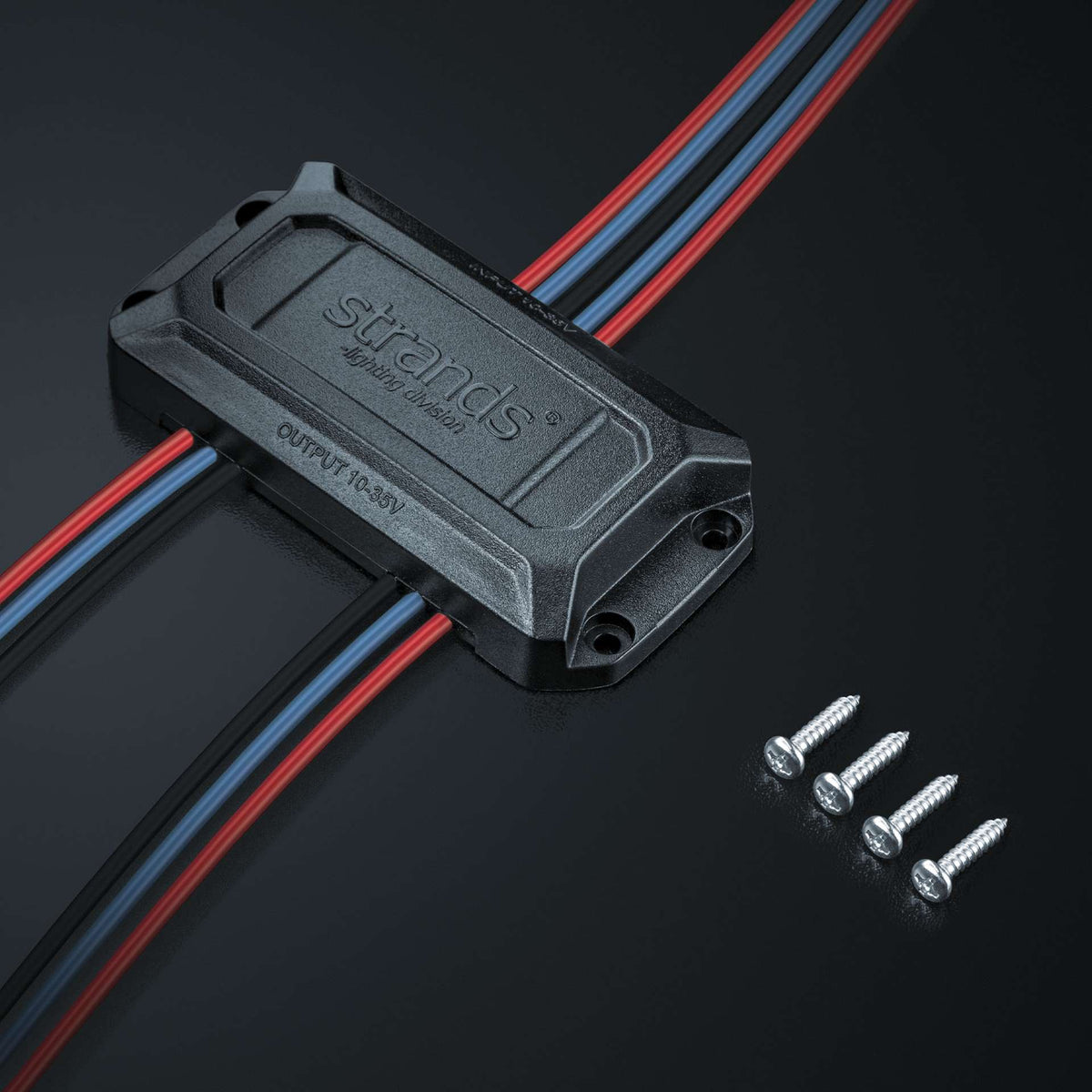

• Mounting screws included: Ready for installation out of the box

Reliable control for modern vehicle lighting

Whether you're building a custom lighting setup or synchronizing multiple position lights and indicators, the Strands Pro Indicator Relay provides a simple and effective solution for professional vehicle installations. Please consult the manual for advanced instructions.
