STRANDS. NUUK D-LINE LED BAR WITH DRL AND NUMBER PLATE HOLDER

Product specifications

Installation specifications

Voltage. 9-36V DC

Theoretical effect. 130W

Consumption. 125,0W

Functions High beam, Amber and white position light

Consumption specific function

Xperience mode:124W / E-mode:32W / White Pos:8,8W / Amber Pos:9W

Theoretical lumen. 13000lm

Actual lumen. E-mode:3300lm / Xperience mode:9600lm

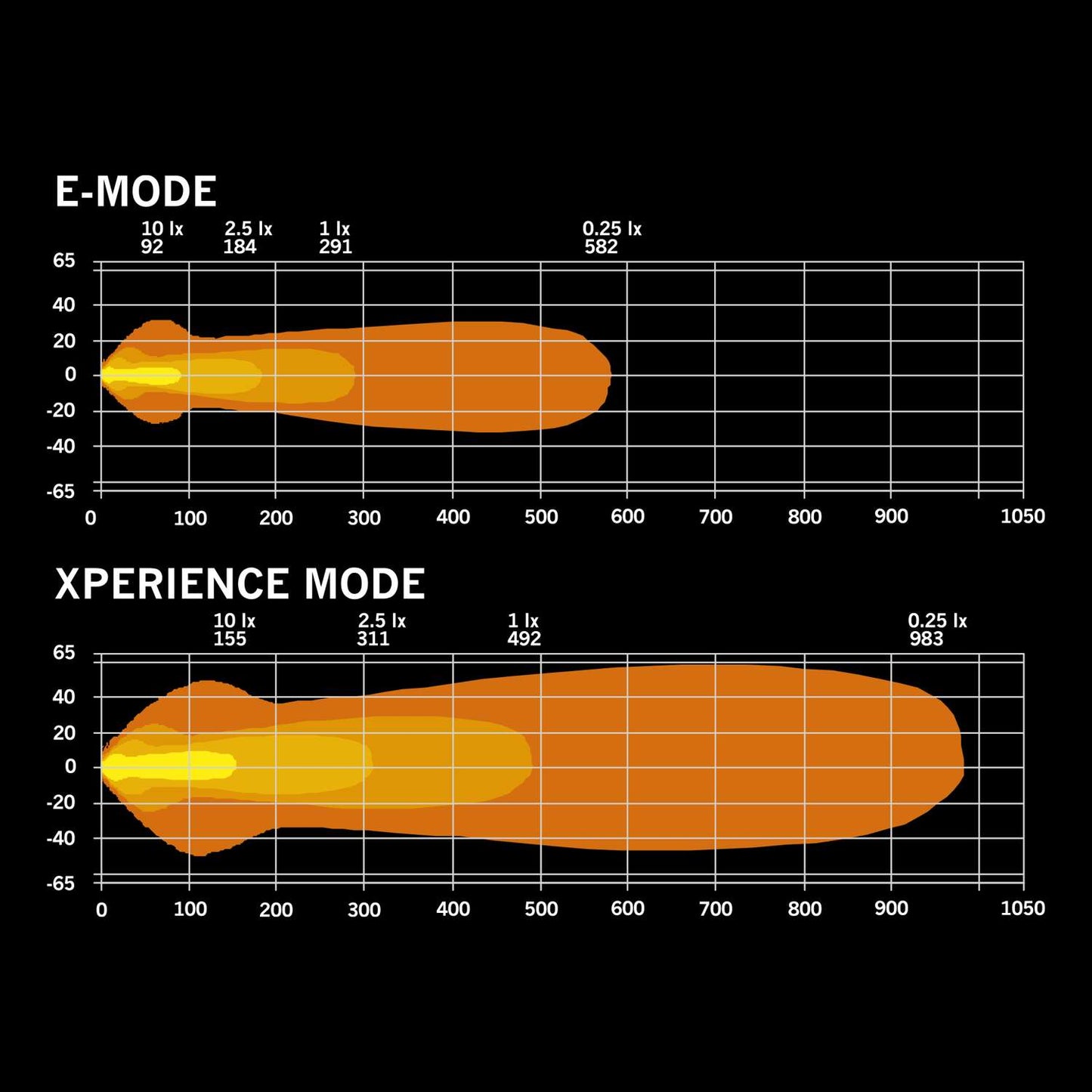

1 lux @E-mode:291m / Xperience mode:492m

Color temperature. 5000K

Beam pattern. Optimized beam

Connection. Cable

Cable length. 2500mm

Color housing. Black

Color lens. Black

Material bracket. Plastic

Material housing/chassis. Aluminium

Material lens. Polycarbonate

Length. 544mm

Depth. 51mm

Height. 162mm

Weight 1,9kg

IP-class IP68/69K

Operating temperature -40 - +60°C

E-approved Yes

According to regulation ECE R148, R149

ECE R10The Nuuk D-Line 20” LED bar has an optimized beam with a range of more than 492 meters and 9600 actual lumens in Xperience mode. It’s incredibly lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. D-Line is an ideal addition to your built-in high beam. A standard high beam is usually quite broad, illuminating the sides of the road. With the D-Line, you’ll get more output in front for more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience. The E-mode is E-approved R148/149 with reference number 20. Many drivers prefer this mode when driving in rainy or snowy weather, as it reduces the glare from water particles. With Xperience mode, you’ll discover a powerful output ideal for the darkest nights. The Nuuk D-Line has a slim black housing and lens, underlined by the glow of the white and amber position light. It’s easy to use, lightweight, has a built-in relay, and everything you need for installation is included.

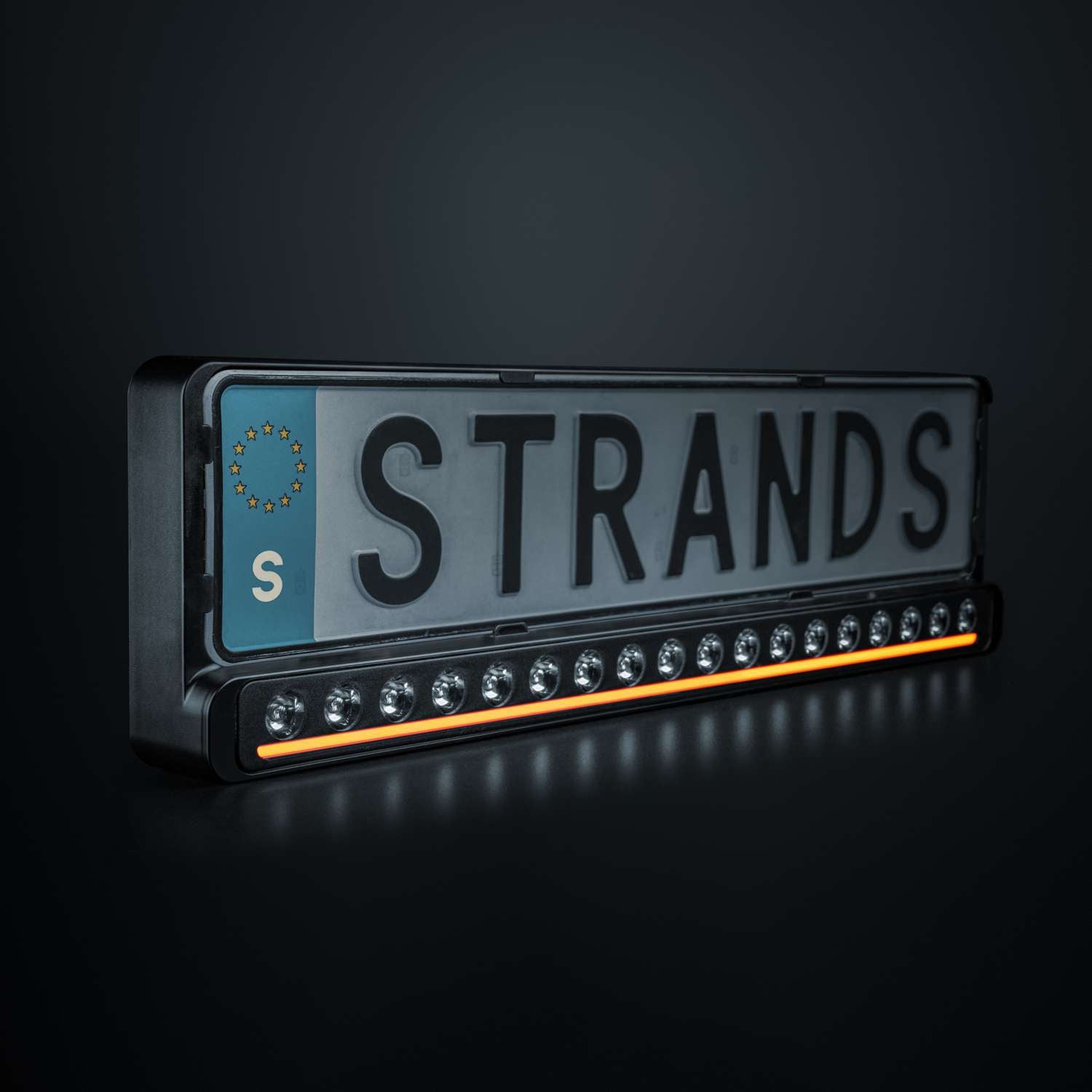

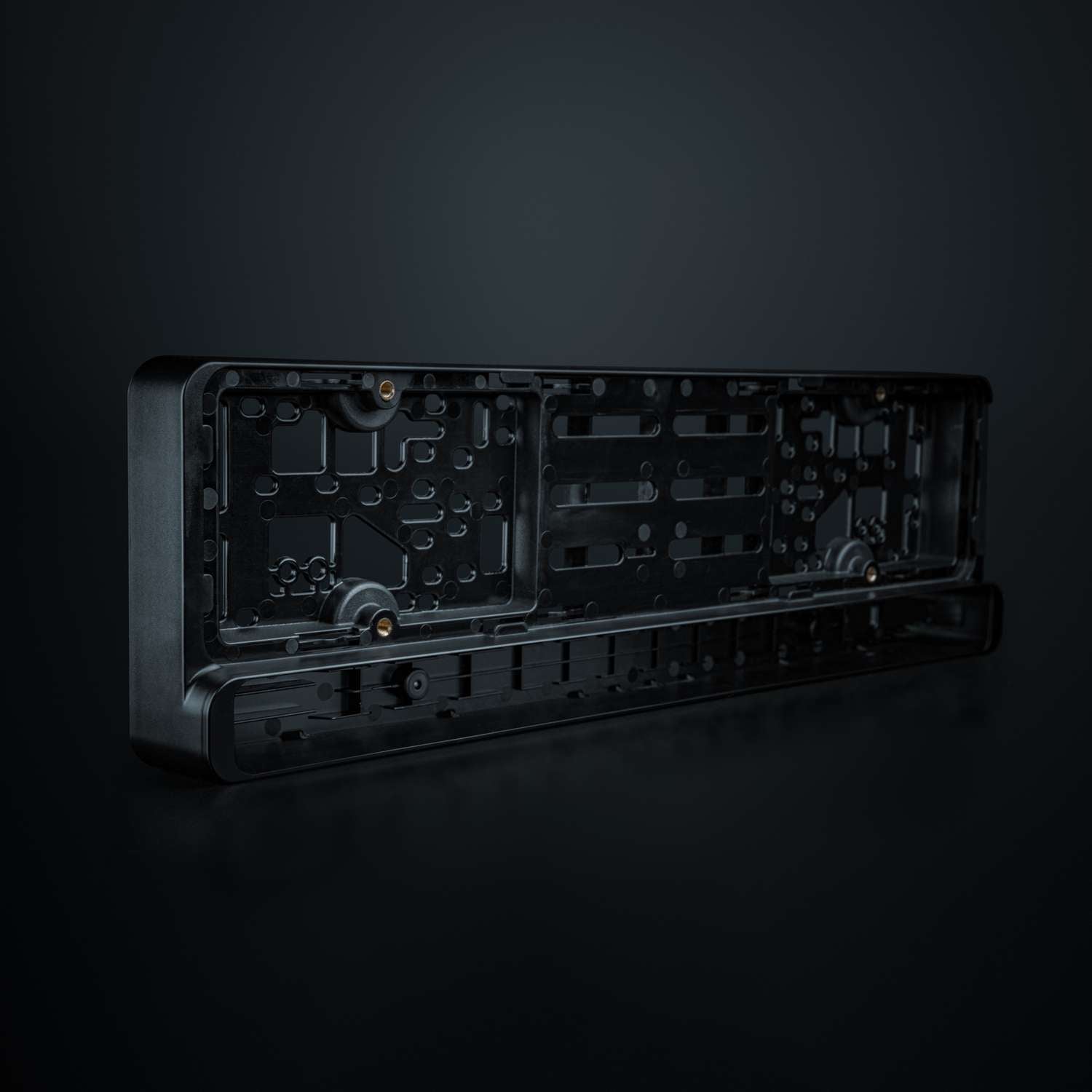

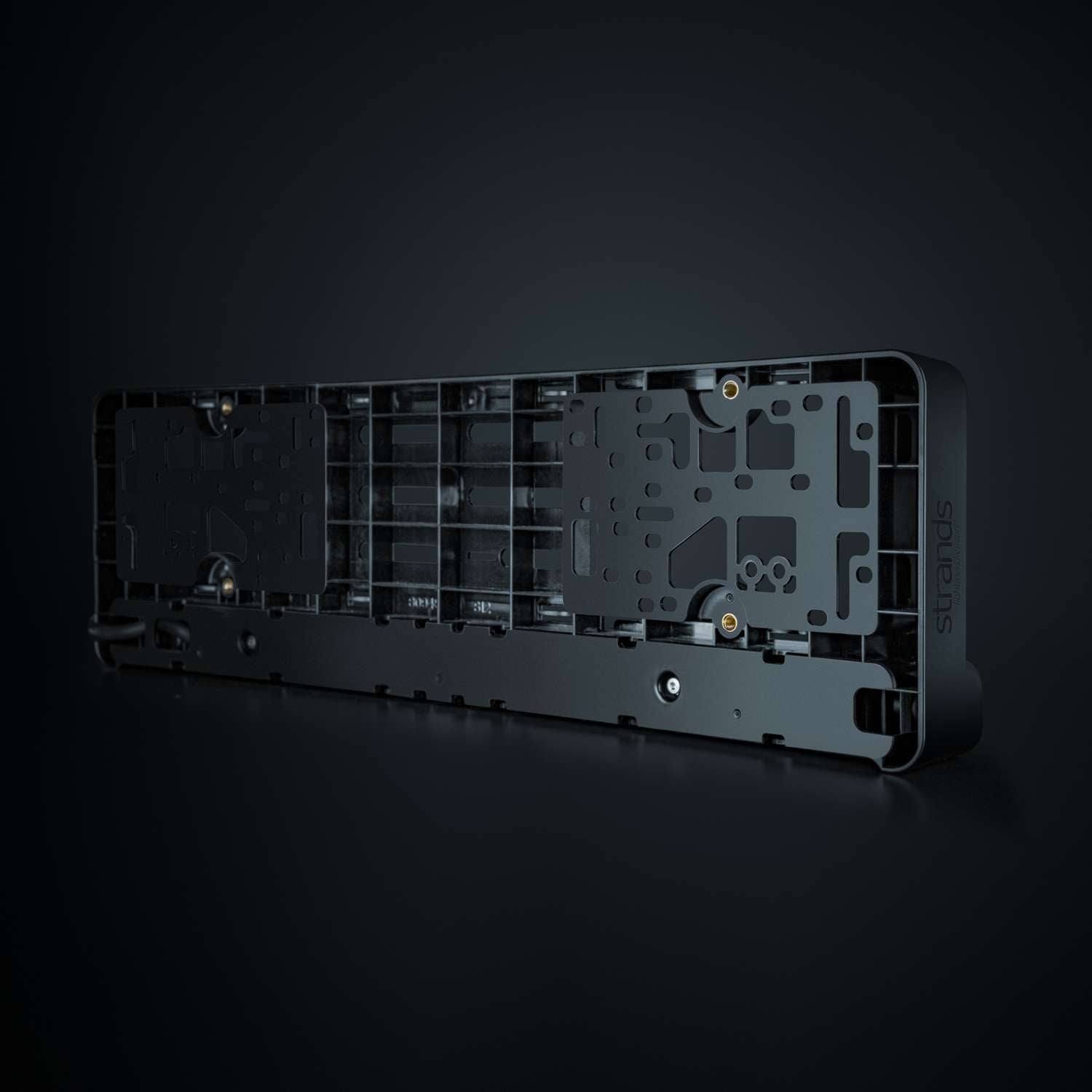

This kit includes the Nuuk D-Line 20” LED bar (Part No. 809452) and the license plate bracket (Part No. 809450). It’s an easy and innovative way to install your LED bar. Fasten your LED bar into the bracket and replace your old license plate holder. The bracket has a slightly curved shape and follows the lines of your car. Thanks to the screw pattern you can attach it without unnecessary impact to your vehicle.

New black lens

Contemporary design

Embrace simplicity, elegance, and safety. The new Nuuk D-Line LED bar is inspired by the design of modern vehicles. Its clean, contemporary lines and dark lens blend seamlessly wherever you install it. It’ll fit even in the narrowest places thanks to the slim fit and 4,5 cm height (including the bracket). The duo-color position light in white and amber adds an attention-grabbing touch, underlining the dark look of the housing and lens. The glowing line is a stylish statement. Any driver can achieve increased safety and visibility with 10”-40” LED bar models, Xperience mode, and optimized or extended beam patterns. The increased sight ahead will improve your reaction time when encountering animals or other difficulties on the road.

Perfect match for any driver

As a retailer, you’ll find that the Nuuk D-Line series is a good fit for any customer looking for a compact and stylish LED bar. Thanks to the slim housing and variety of sizes, drivers of cars, LCVs, and trucks can all find a D-Line to fit their needs. The E-approved mode is suitable for European roads. With the Xperience mode, the output gets a massive boost that is suitable for the darkest nights. The Nuuk D-Line is covered by Strands’ market-leading 3-year warranty, providing guaranteed peace of mind for yourself and your customers. For any questions regarding warranty, installation, and use, our expert support team is ready to provide professional customer care.

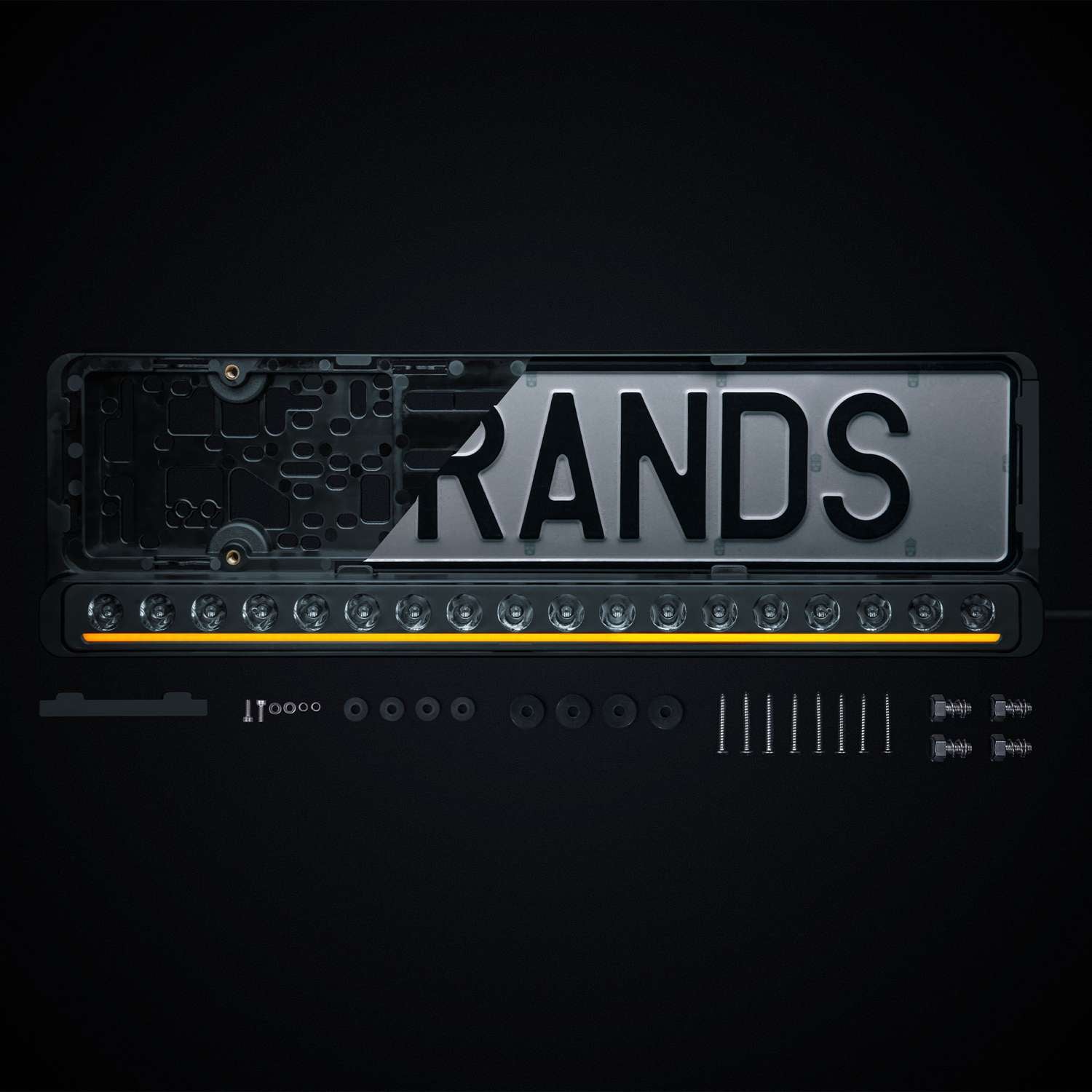

Everything is included

An LED bar shouldn’t just be easy to use; it needs to be easy to install. That’s why the Nuuk D-Line has a built-in relay and cable harness. It’s slim and lightweight, which makes it easy to place. You’ll also find everything you need for installation included in the package: side and hanging brackets, screws, bolts, nuts, washers, 3 pcs dura seal, and silicone pads. The 2,5 m cable ensures plenty of reach, and it’s used with 9-36 V.

Benefits of Xperience mode

The Nuuk D-Line was developed with design and ease-of-use foremost in mind. We wanted to achieve a single-row LED bar with flawless contemporary lines and design that is lightweight and easy to install. The beam pattern should be superb and perfectly tailored to boost the high beam, adding range and brightness. We added the Xperience mode, a powerful feature, so you can adapt quickly to changing weather conditions. The E-mode dramatically improves the range of the built-in high beam and is E-approved R148/149, suitable for European roads or driving in rainy or snowy weather, lessening the glare from water particles.
