STRANDS IZE LED AMBER DOUBLE BURNER

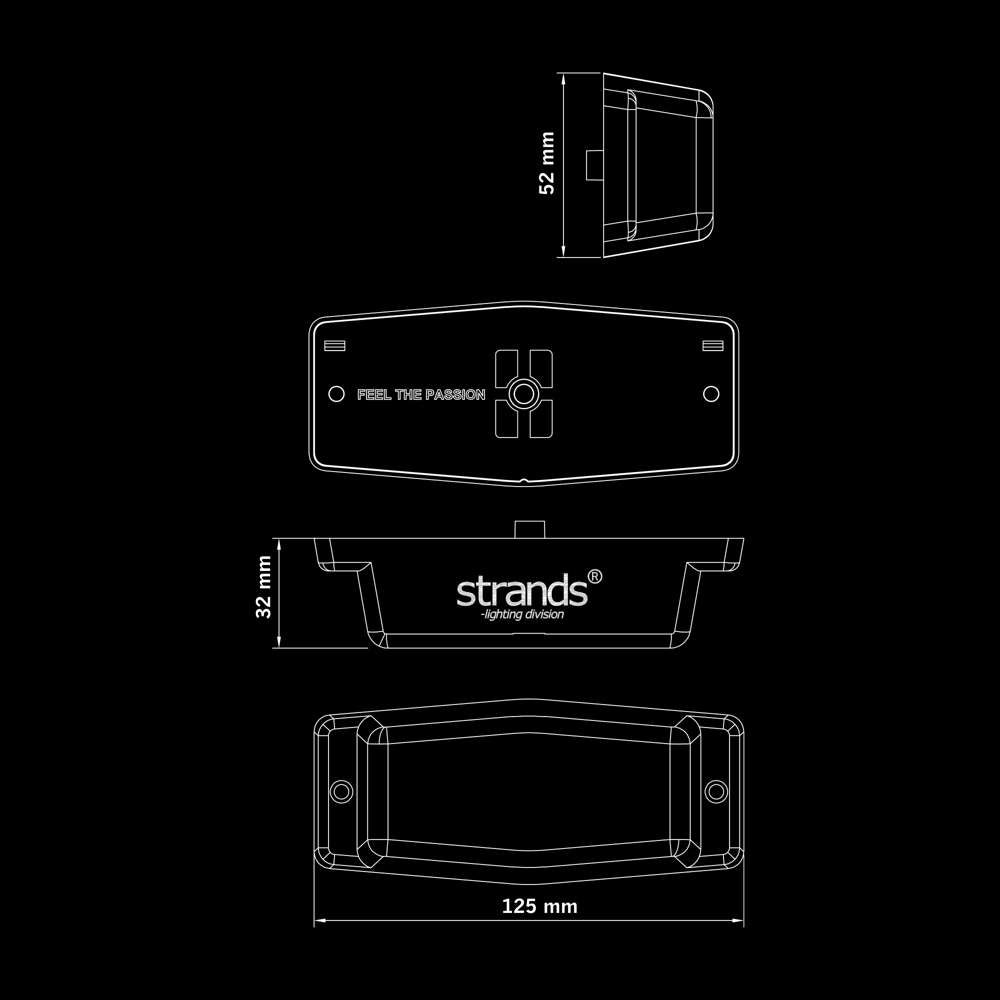

You want it old-school, we make it pro. This amber side marker, featuring a built-in warning light with 19 patterns, an amber lens, and lasting quality, makes this light a perfect companion for years to come. Strands’ 3-year function warranty guarantees the quality. Made from corrosion-free polycarbonate and IP-rated IP69K, you can be sure this light will withstand heavy rain, dirt, and extreme temperatures with ease. The IZE LED Double Burner is E-approved (R148) and EMC-certified ECE R10. It measures 125 x 52 x 32 mm and 109 mm CC, with a 1000 mm cable.

Unit   PCS
Voltage (DC)   10-32V DC
Theoretical effect   8W
Consumption   5.5W

Functions
Side marker
Warning light

Consumption specific function
Warning 2.5W
Side marker 3W

Patterns
19

Connection
Cable
Cable length
1000mm
Color housing  Black
Color lens   Amber
Color LED's   Amber
Material housing/chassi   Polycarbonate
Material lens   Polycarbonate
Length   125mm
Depth    32mm
Height   52mm
Weight   0.096kg
CC   109mm
IP-class   IP69K
Operating temperature   -30 - +60°C

E-approved
Yes
ECE approval
R10.06
R148
