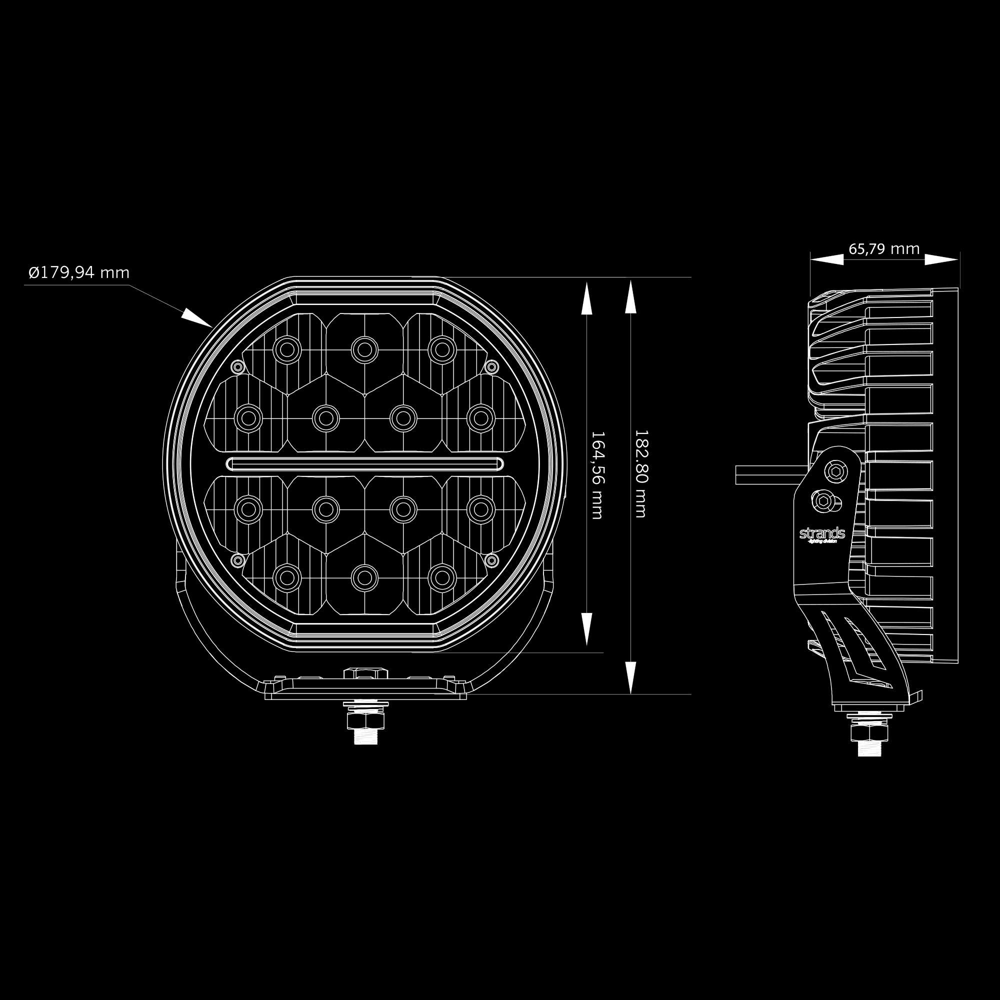

Voltage (DC) 10-32V DC Theoretical effect 70W Consumption 60W Functions Amber Pos. White pos. Driving beam Consumption specific function White pos. 5W Amber pos. 5W Driving 60W Theoretical lumen 6000lm Actual lumen 5600lm 1 lux @ 465m Color temperature 5700K Beam pattern Optimized beam Beam angle 15.7° Connection DT-4PIN Cable length 1000mm Color housing Black Color lens Clear Material bracket Stainless Steel Material housing/chassis Aluminium Material lens Polycarbonate Length 179.9mm Depth 65.8mm Height 164.6mm Height including bracket 182.8mm Weight 1.35kg Diameter 179.9mm IP-class IP67/69K Operating temperature -35 - +60°C E-approved Yes ECE approval R10.06 R148 R149

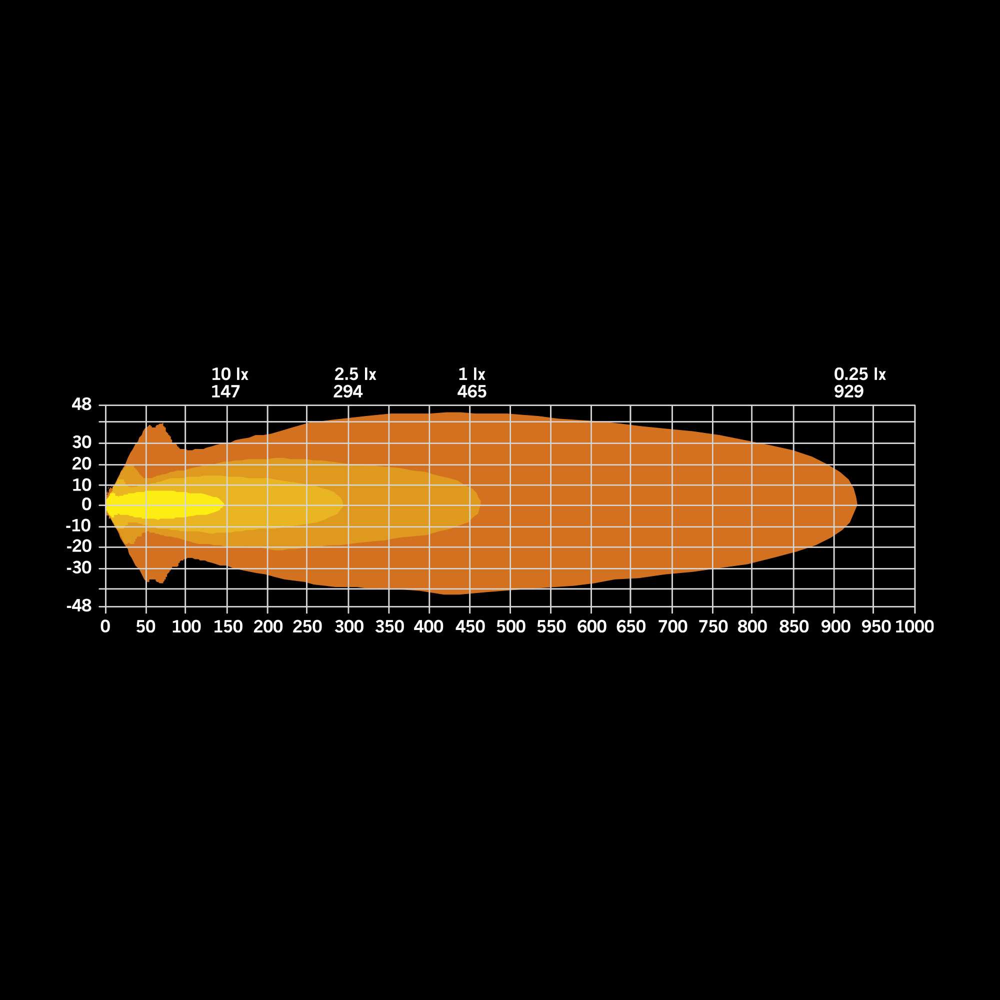

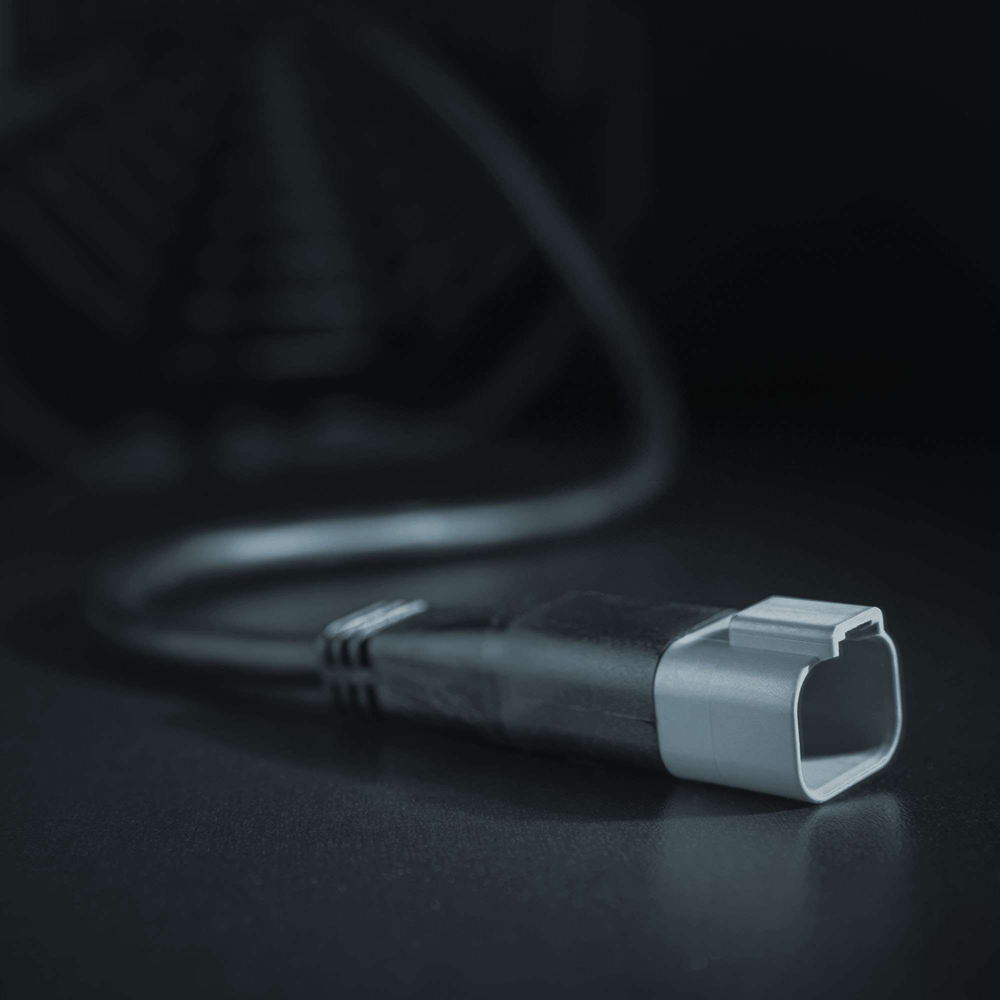

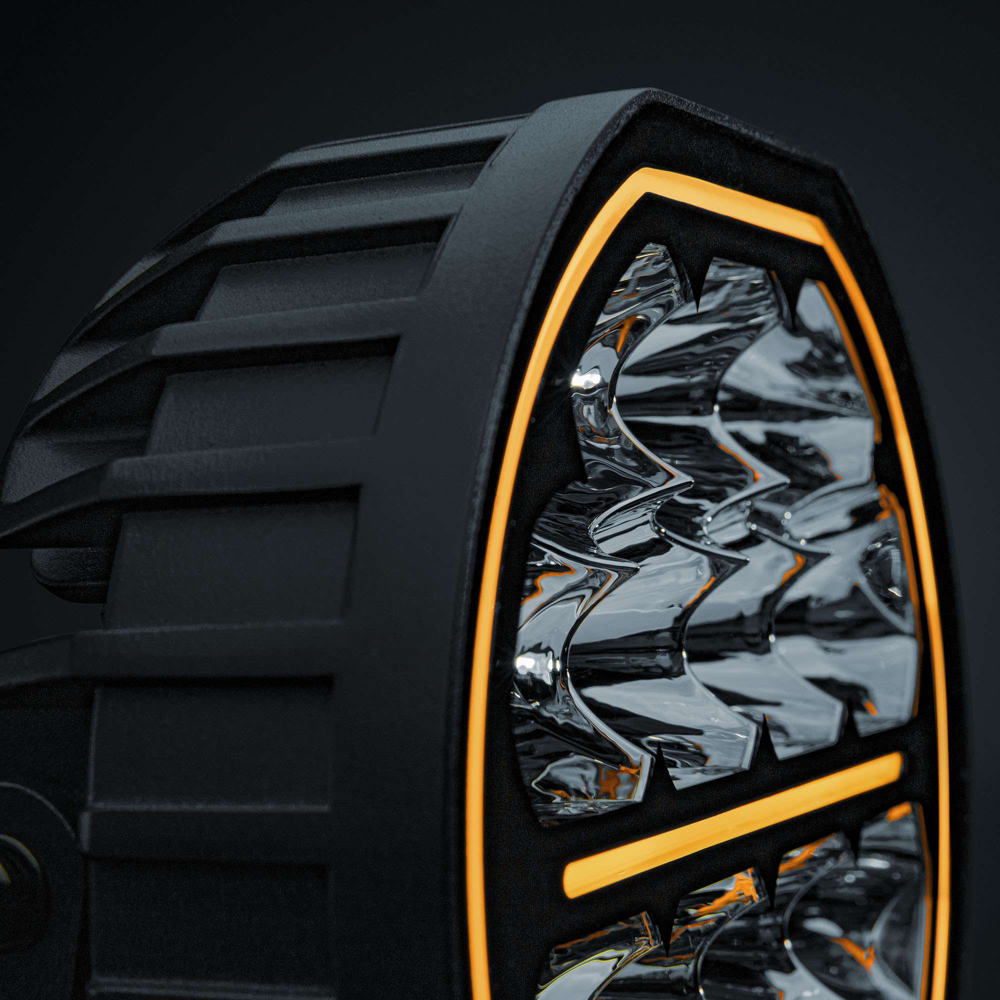

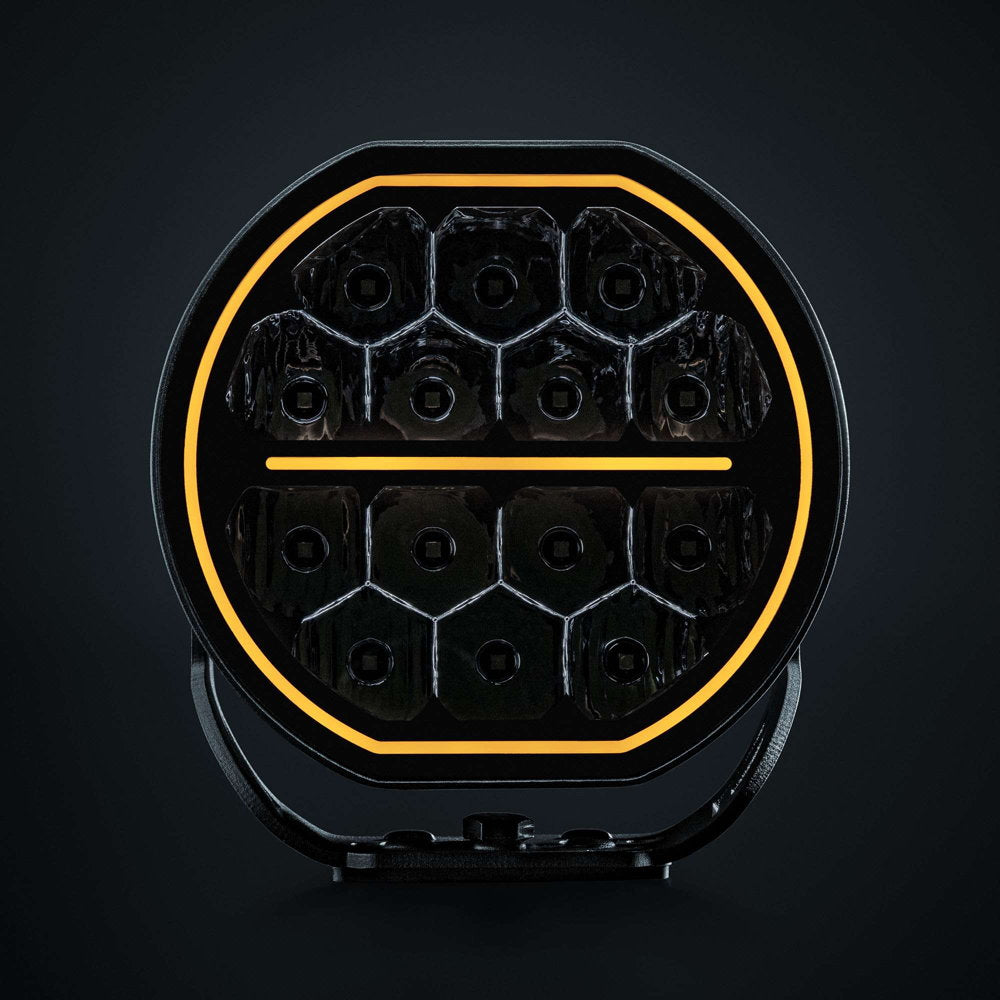

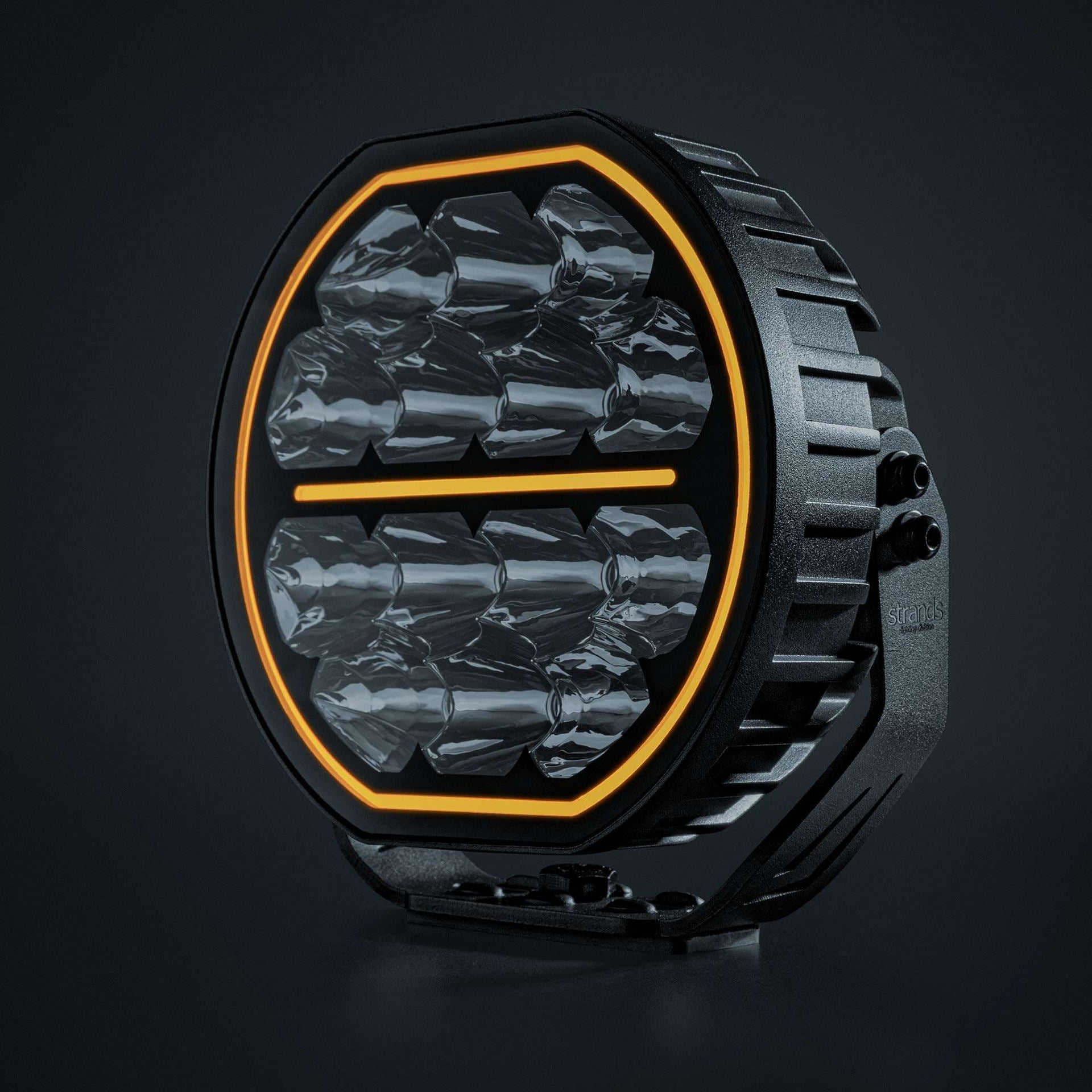

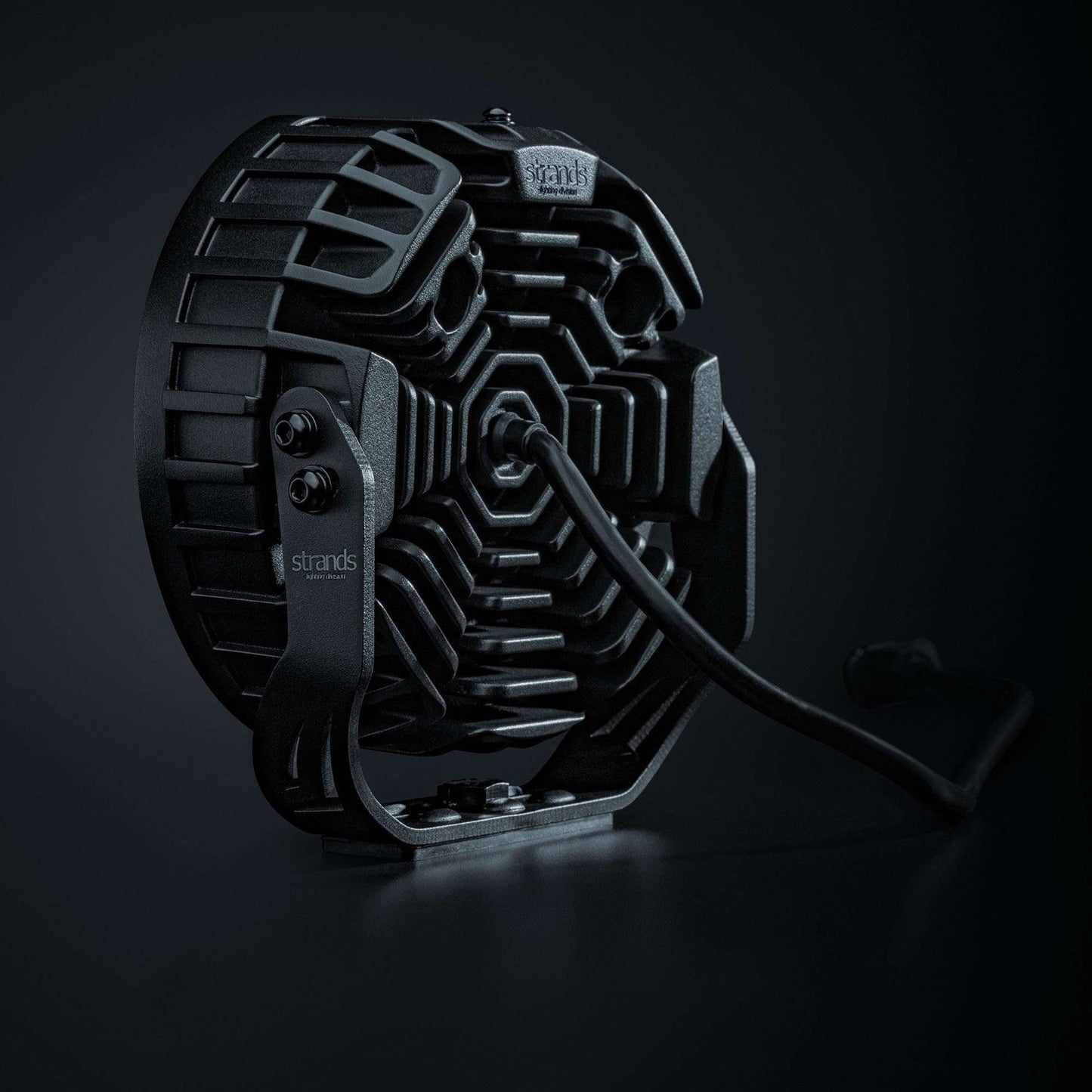

If you’re curious about how a driving light can improve your driving experience or prefer a 7” driving light, Big Energy is it. With more than 5600 lumens and 5700 kelvins, it’s a big boost to your high beam. The optimized beam is 40 meters wide and reaches more than 465 meters @ 1 Lux. It has a 1000 mm cable with a DT-4 connector for easy installation, and the slim design and low weight make it a good fit for cars or LCVs. Made from aluminum and polycarbonate and IP-rated IP67/IP69K, it will be a durable addition to your vehicle. It’s E-approved R148/R149 with reference number 50. Choose between the white and amber position lights to achieve your desired look. You’ll be blown away by the design and output without breaking the bank.
