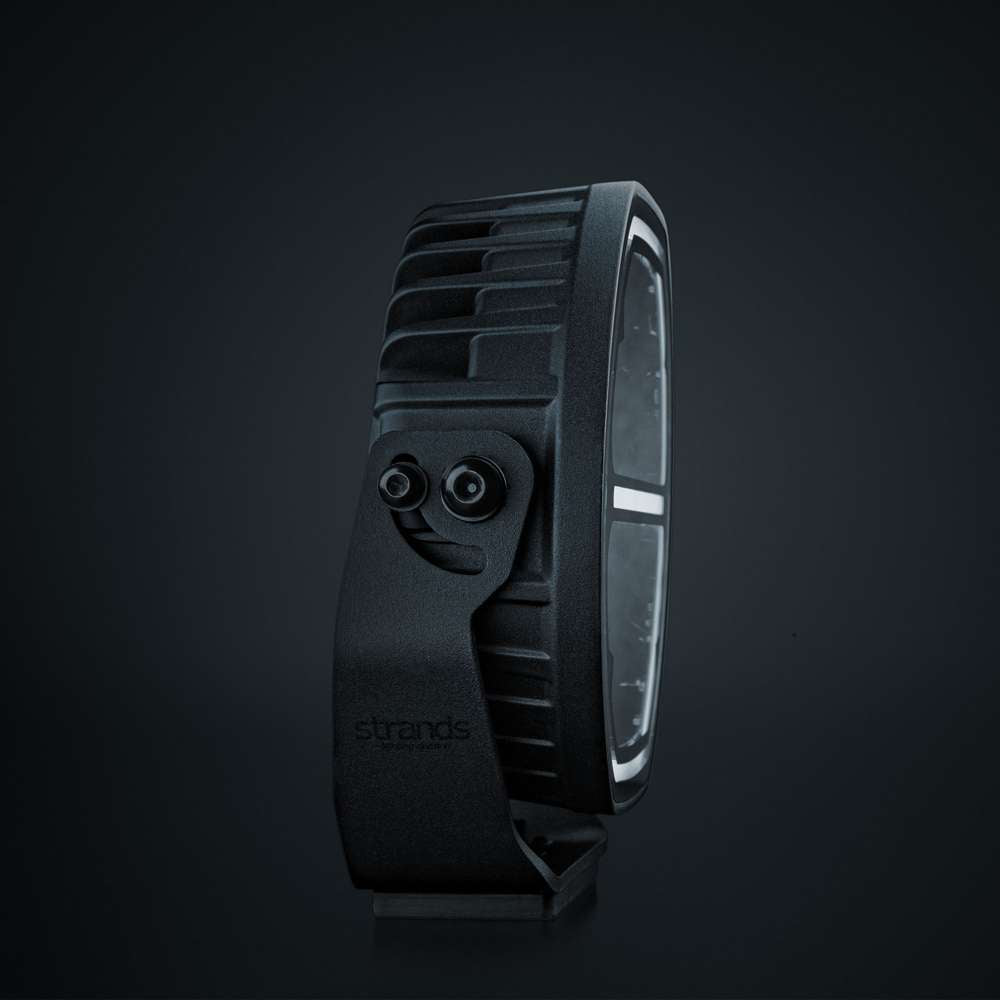

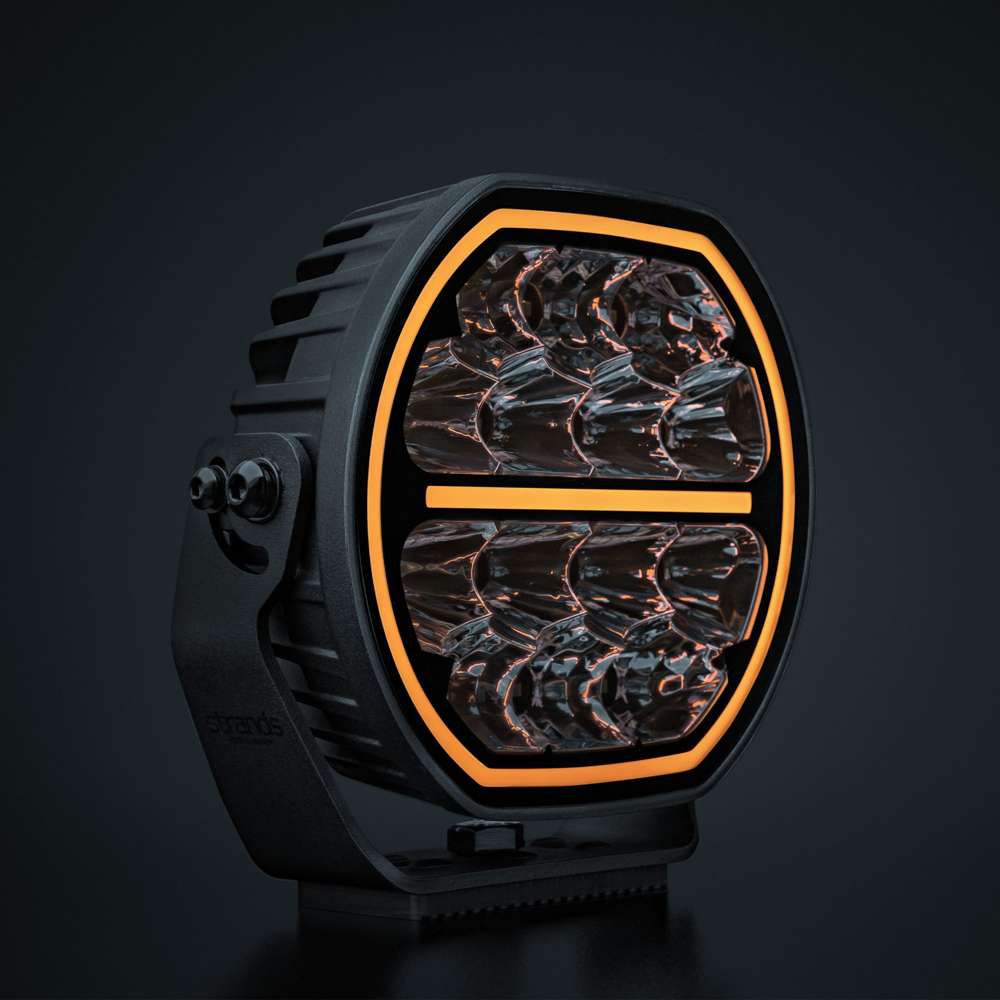

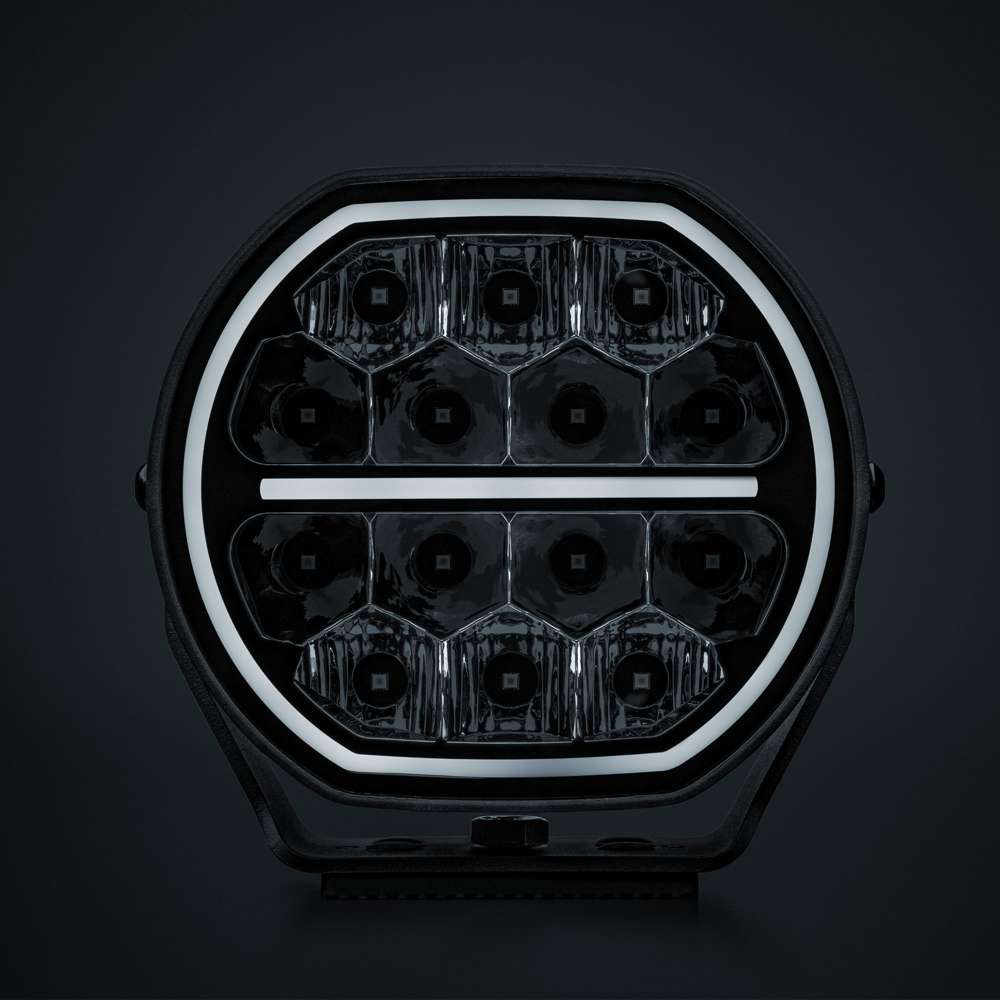

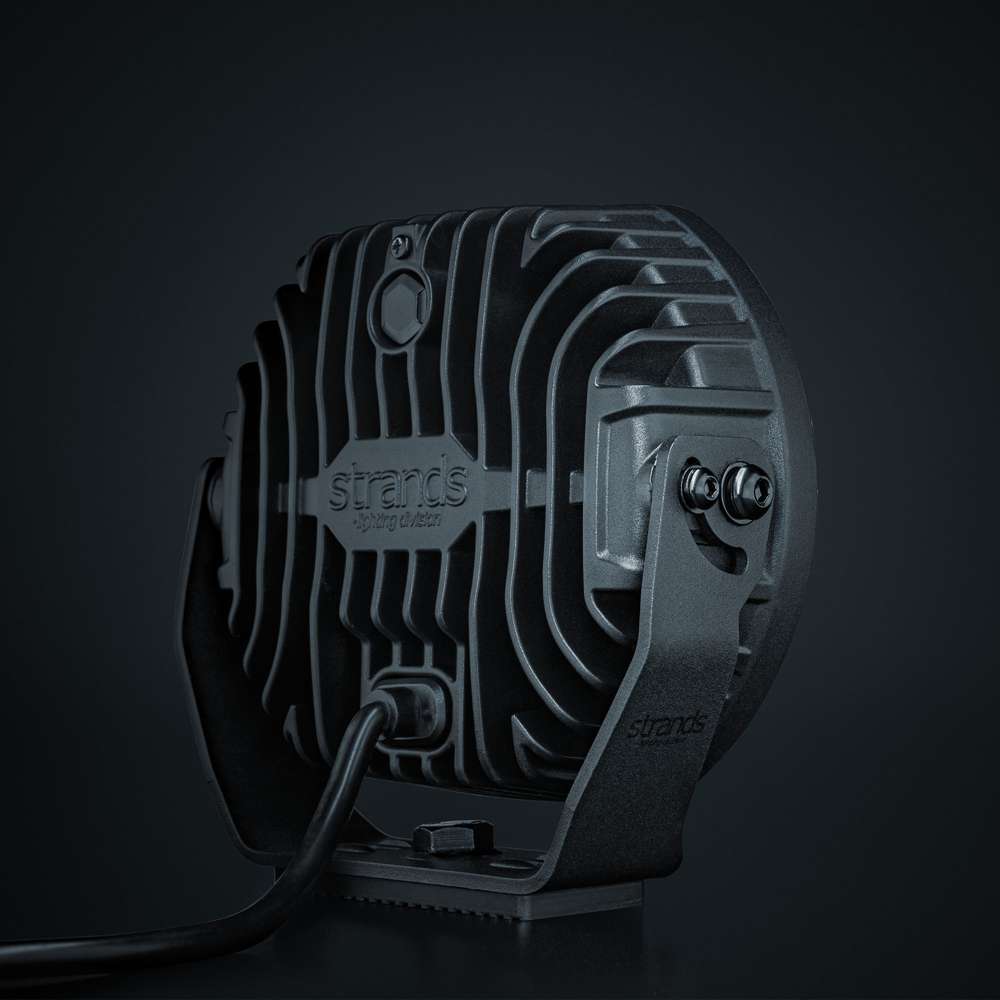

STRANDS BIG ENERGY 2.0 DRIVING LIGHT 7"

The new generation of Big Energy driving lights is here. With improved range and a new beam pattern, the Big Energy 2.0 is a perfect place to start exploring what a driving light can do for your driving experience. With its 9100 actual lumens and 600-meter range in Xperience mode, this 7” driving light packs a real punch. The E-mode is E-approved R148/149 with reference number 20. The light has white and amber position lights. It’s a good fit for cars and LCVs and is connected with a DT4 connector. It’s IP-rated IP69K and made from durable materials. It is also covered by Strands’ 3-year warranty.

Unit   PCS
Voltage (DC)   10-32V DC
Theoretical effect   105W
Consumption   98W

Functions
Amber Pos.
White pos.
Driving beam
Consumption specific function
X-mode 98W
E-mode 24W
Amber pos. 6
5W
White pos. 6

Theoretical lumen   10000lm
Actual lumen   9100lm
1 lux @   601m
Color temperature   5700K

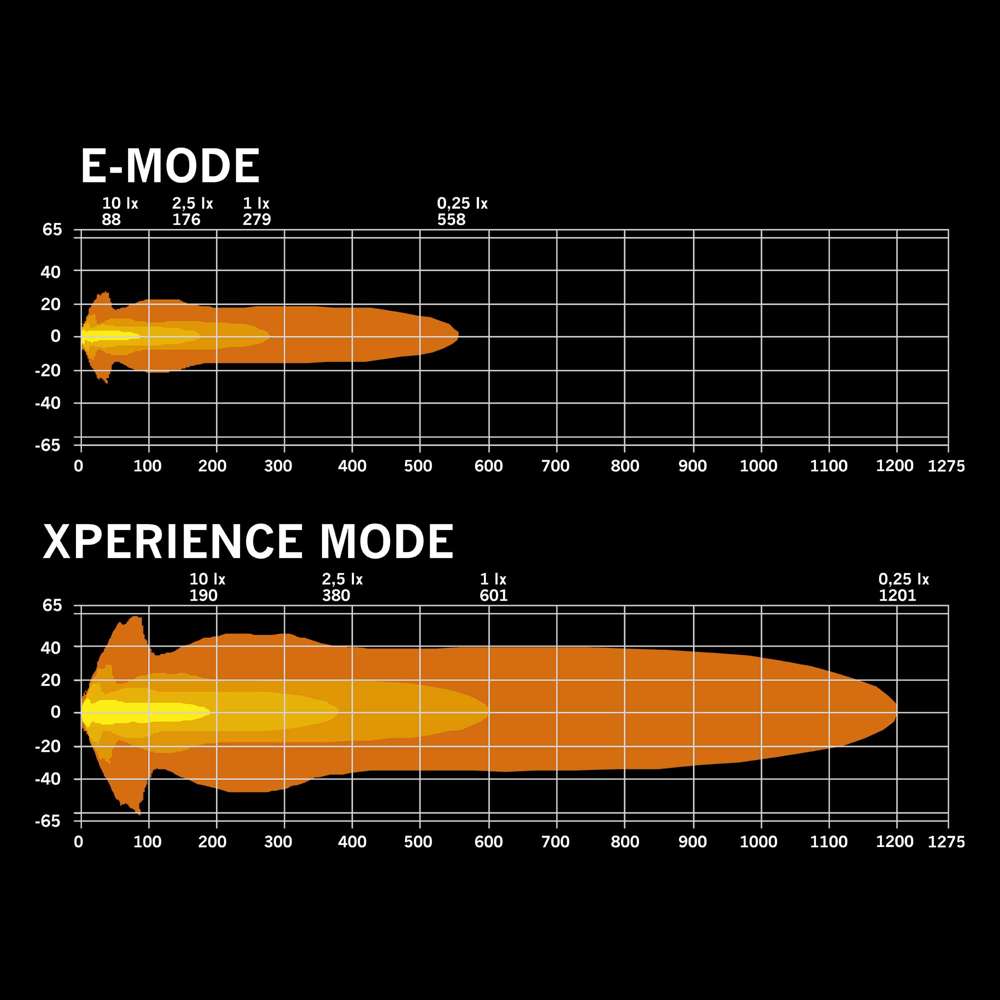

Beam pattern   Extended Beam
Beam angle   11.7°
Connection   DT-4PIN
Cable length   550mm
Color housing   Black
Color lens   Clear
Color LED's   White | Amber

Material bracket   Stainless Steel
Material housing/chassi   Aluminum
Material lens   Polycarbonate
Length   176.7mm
Depth   66.6mm
Height   162.4mm
Height including bracket   184.6mm
Weight   1.88kg
IP-class   IP69K
Operating temperature   -40 - +60°C

E-approved   Yes
ECE approval
R10.06
R148
R149
Reference number
20
