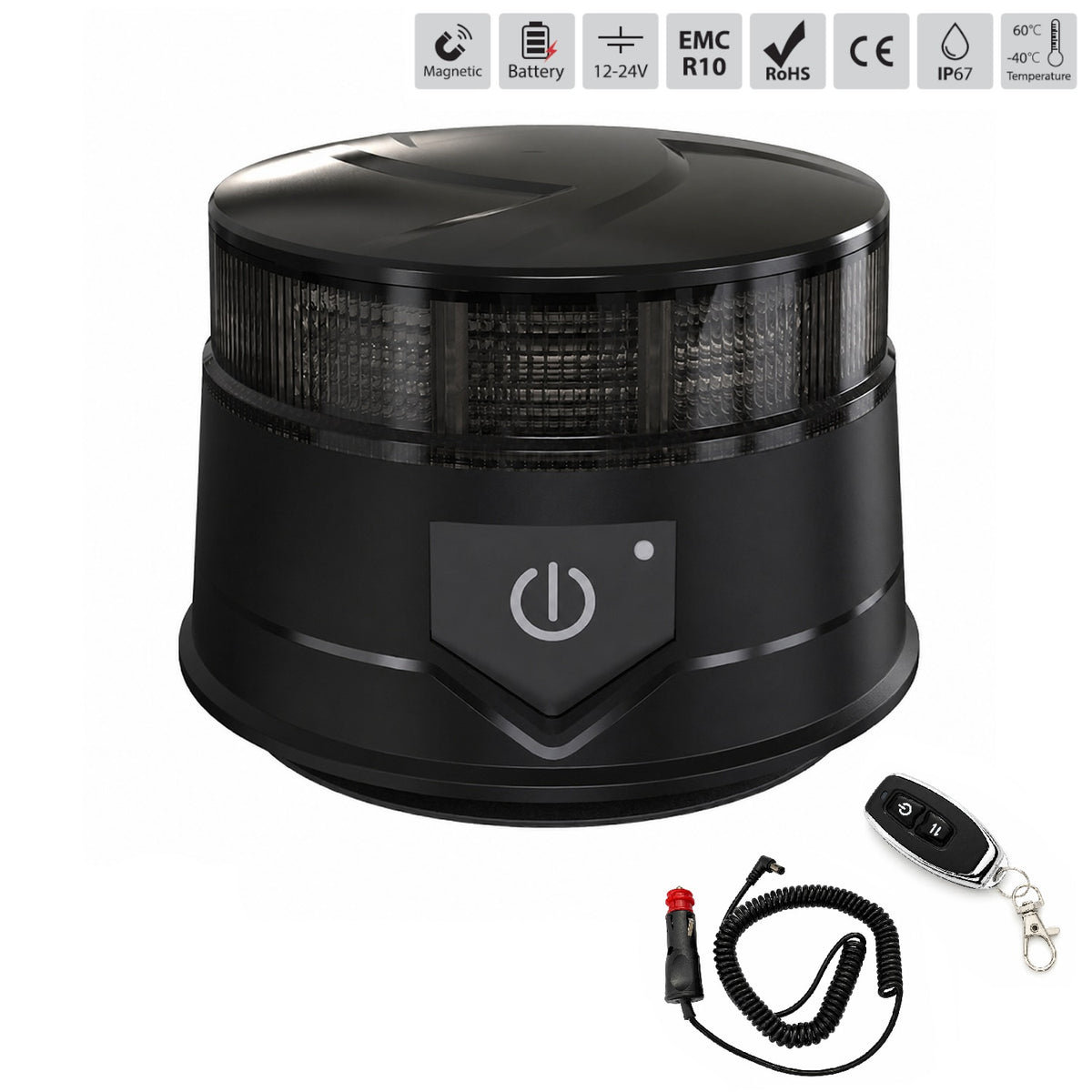

Orange LED emergency light with smoked housing, 36 LED, 19W, 7 modes, remote control, built-in battery, magnet and suction cup, E-Mark E9, ECE R10, IP67, 12–24V

Product description

LED orange emergency light with smoked housing is a compact warning light for vehicles with a 12-24V electrical system, equipped with 36 LED diodes , 19W power, built-in battery and remote control.

It has 7 operating modes - 3 flashing and 4 rotating , and the magnetic base with suction cup allows quick installation without drilling.

It is suitable for cars, vans, trucks, roadside assistance, specialized vehicles, construction and agricultural equipment.

Main functions

• Orange LED warning light
• 36 LEDs
• Power 19W
• 7 modes of operation
• 3 flashing modes
• 4 rotation modes
• Built-in rechargeable battery
• Remote control
• Control button on the housing
• Magnetic mounting with suction cup
• Smoky light housing – Smoky Lens
• Power supply/charging from 12–24V
• IP67 protection

E-Mark E9 and certification

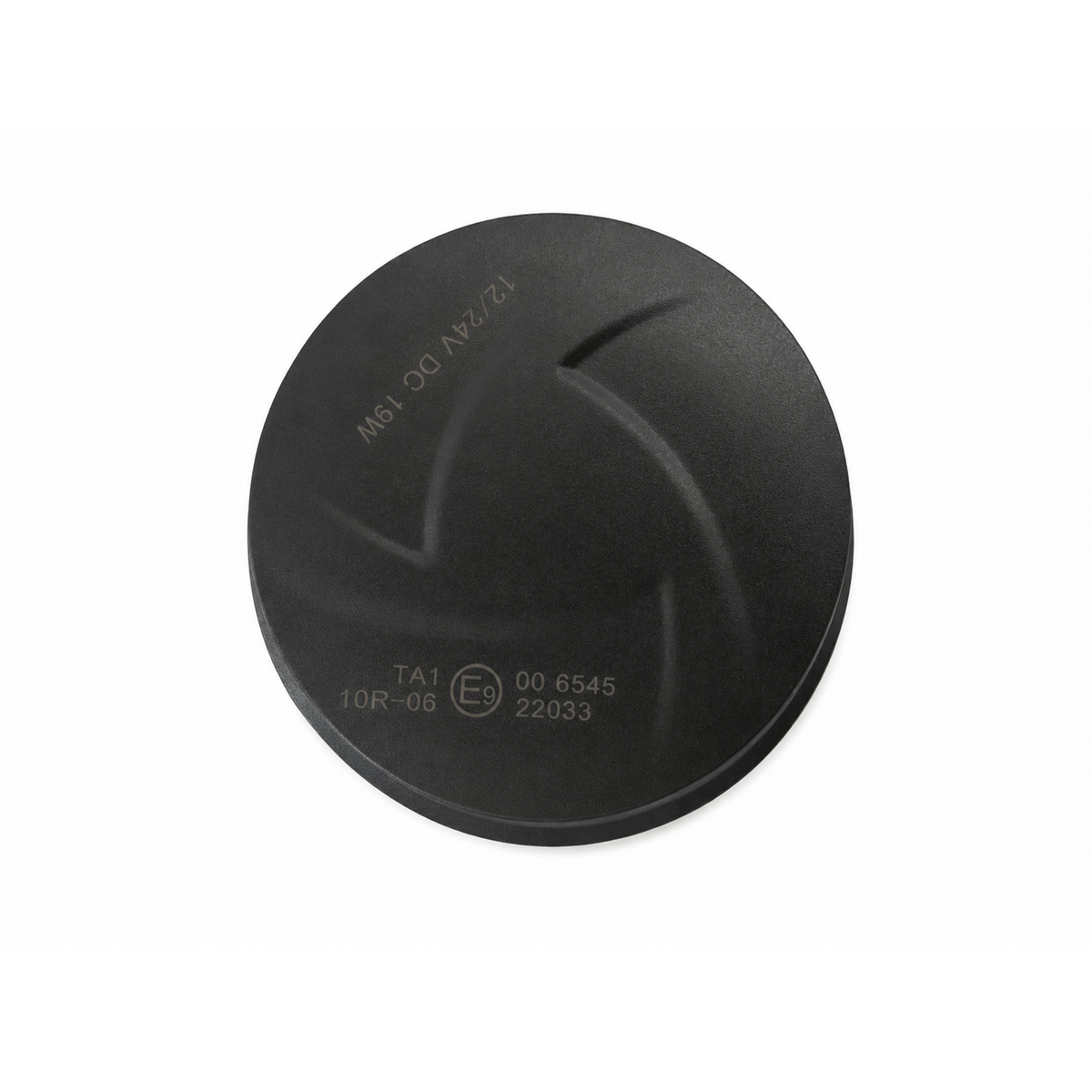

The emergency light has the E-Mark E9 marking, marked directly on the housing.

The marking is visible on the product:

TA1 / E9 / 00 6545 / 22033 / 10R-06

The product is labeled according to:

• ECE R10
• CE
• RoHS

The 10R-06 marking indicates approval under UNECE Regulation No. 10 for electromagnetic compatibility.

7 modes of operation

The emergency light has a total of 7 light signaling modes - 3 flashing and 4 rotating .

The LED sections located on the periphery provide orange warning signaling, and the different modes allow selection according to the specific situation.

Control can be done via the button on the housing or via the included wireless remote control .

Built-in battery and remote control

The lamp has a built-in rechargeable battery , which allows it to be used without a permanently connected power cable.

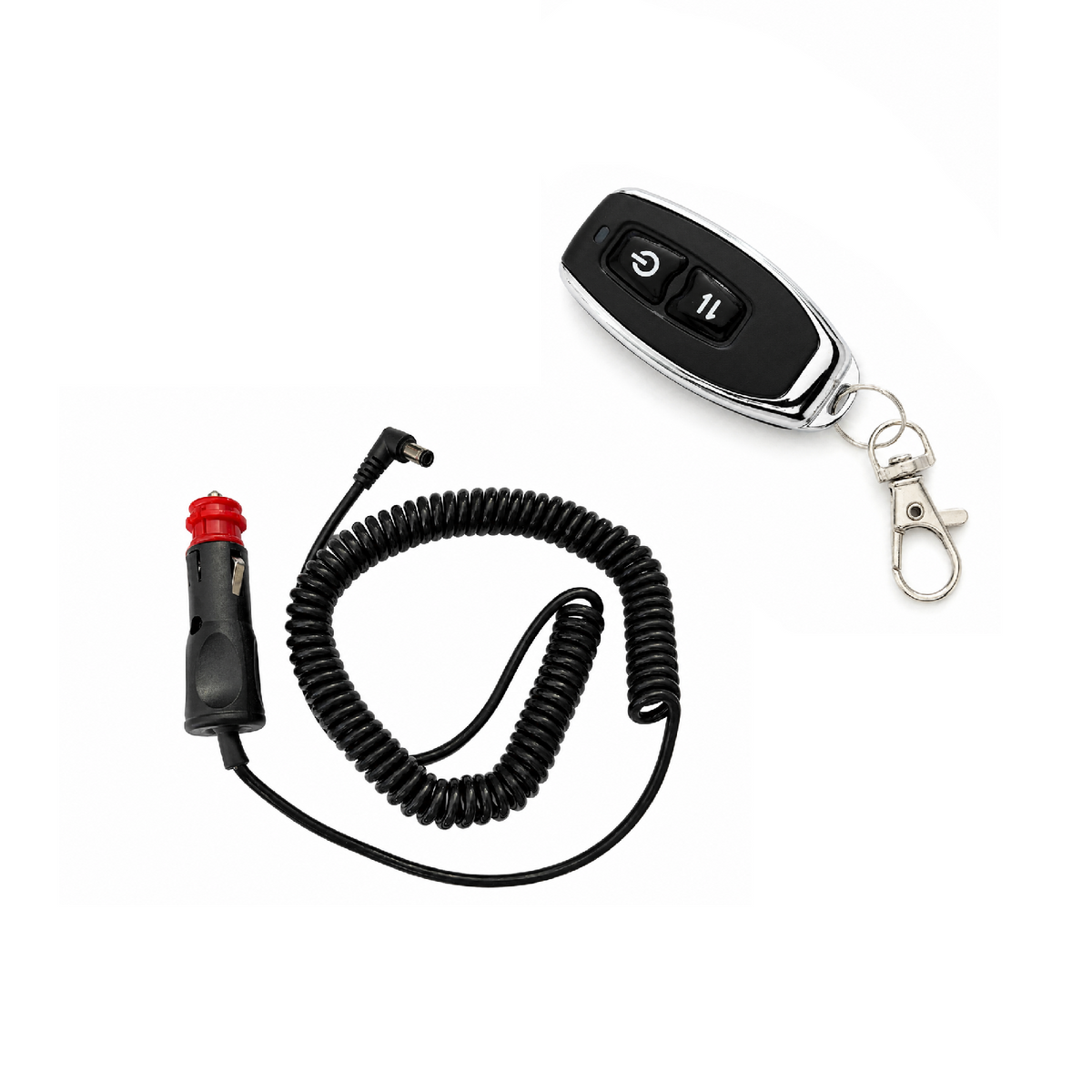

The kit includes a wireless remote control , as well as a 3.5 m spiral cable with a car cigarette lighter plug for powering/charging from a 12–24V electrical system.

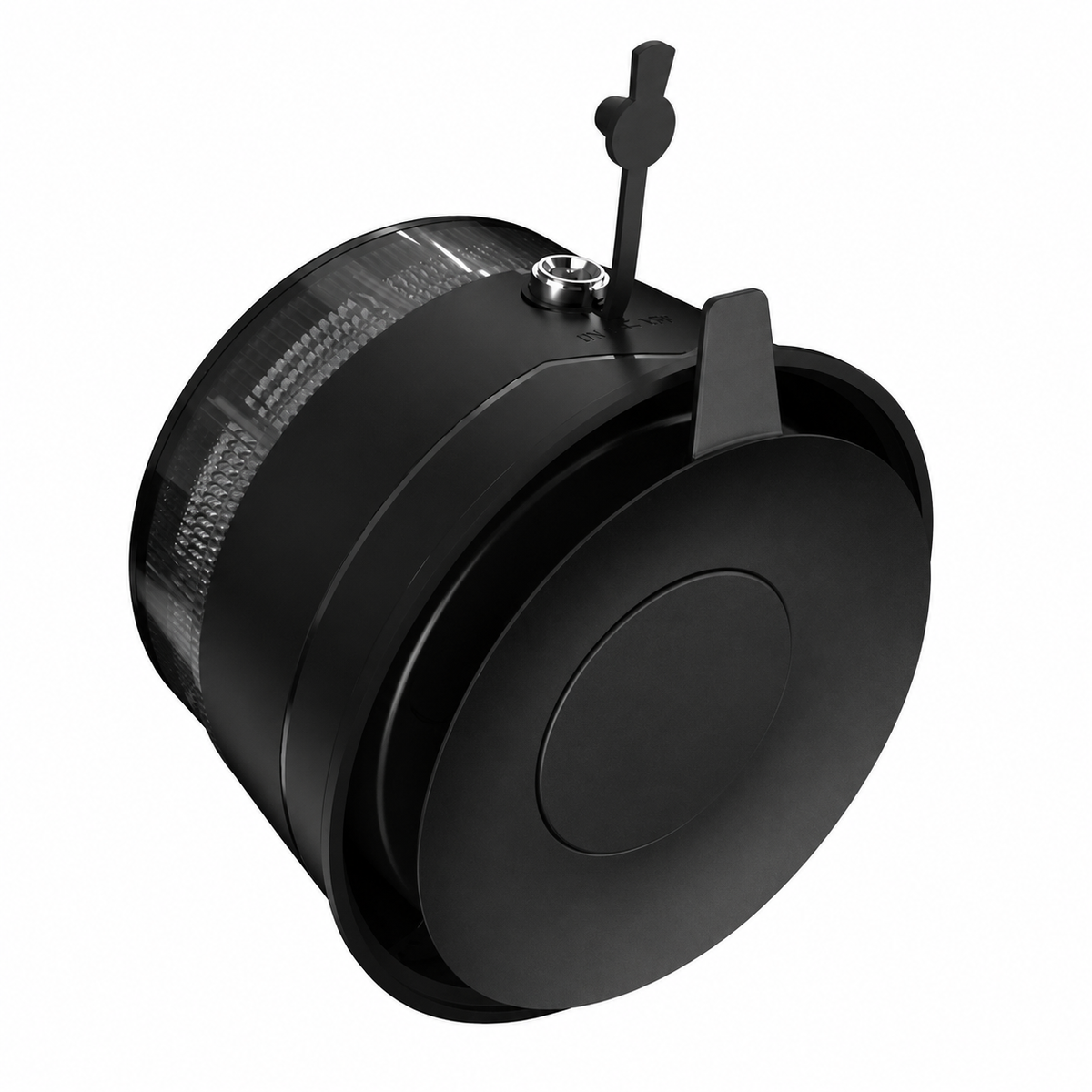

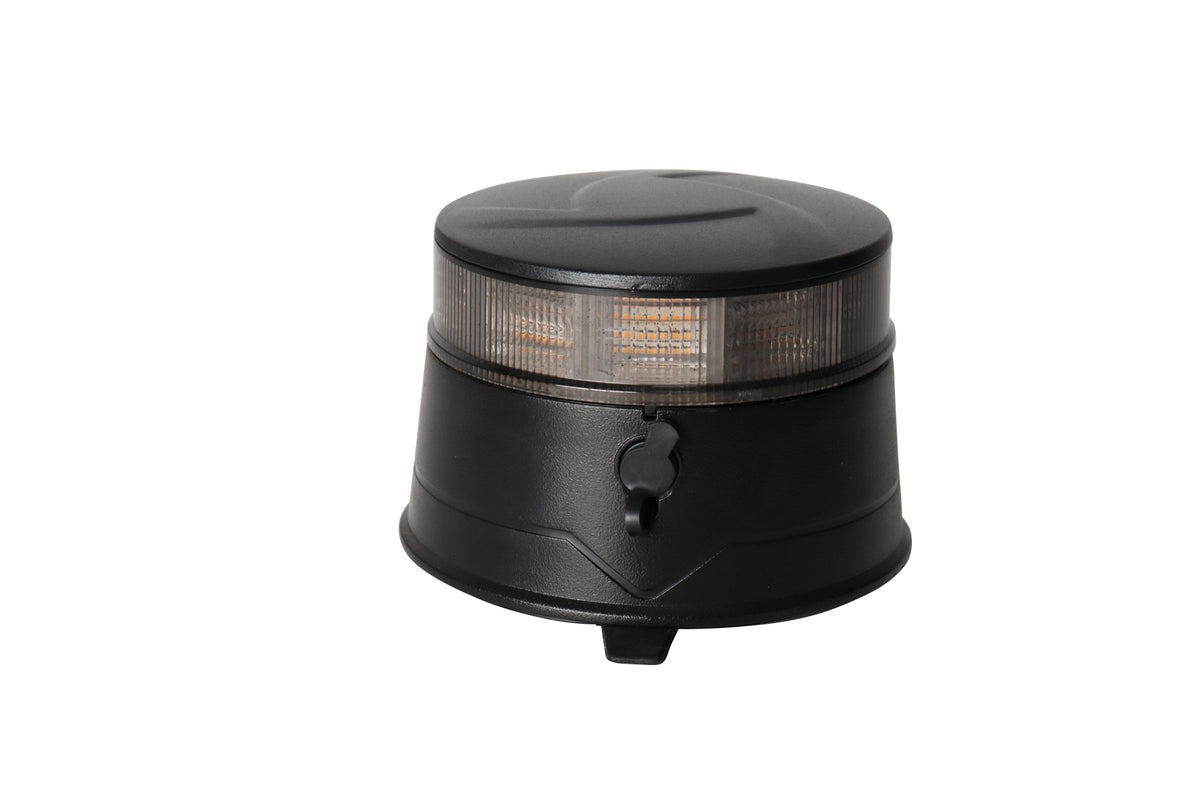

There is a separate socket on the housing with a protective rubber cap.

Smoked housing and magnetic mounting

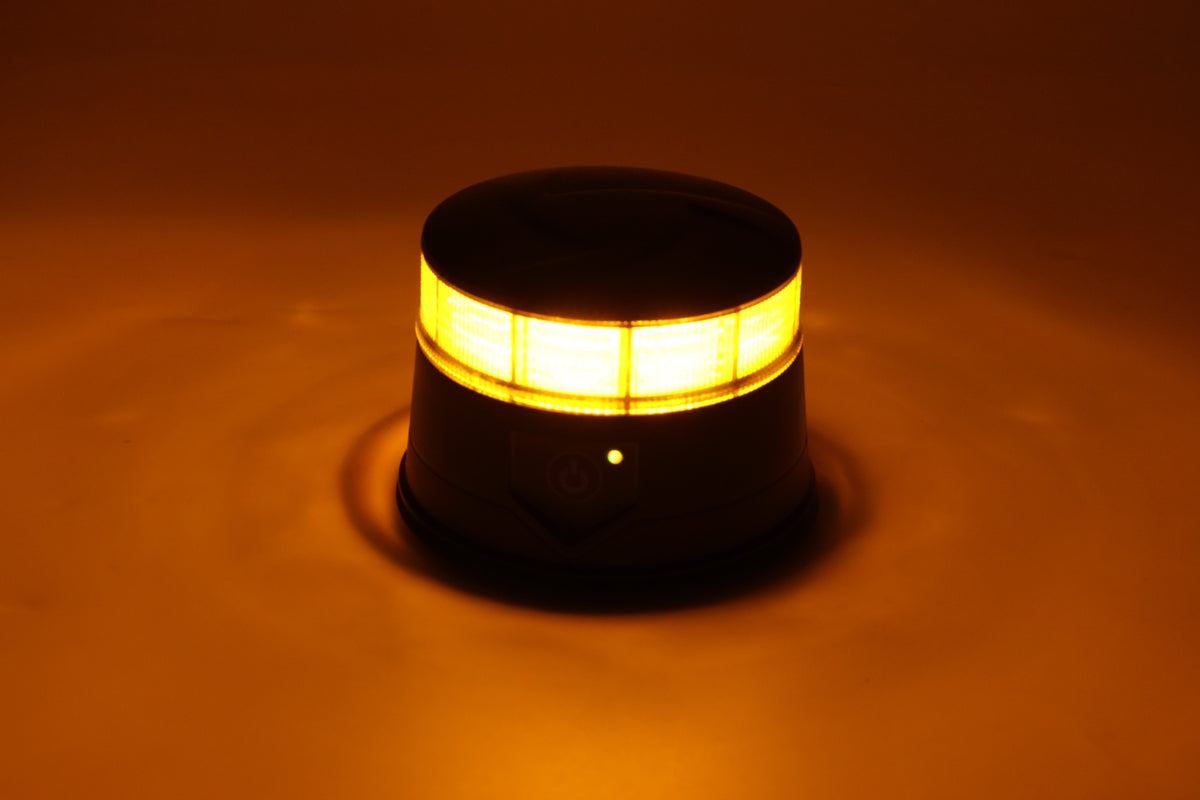

The light part has a smoky lens , which has a dark appearance when the lamp is off, and when turned on, it lets in the bright orange LED warning light.

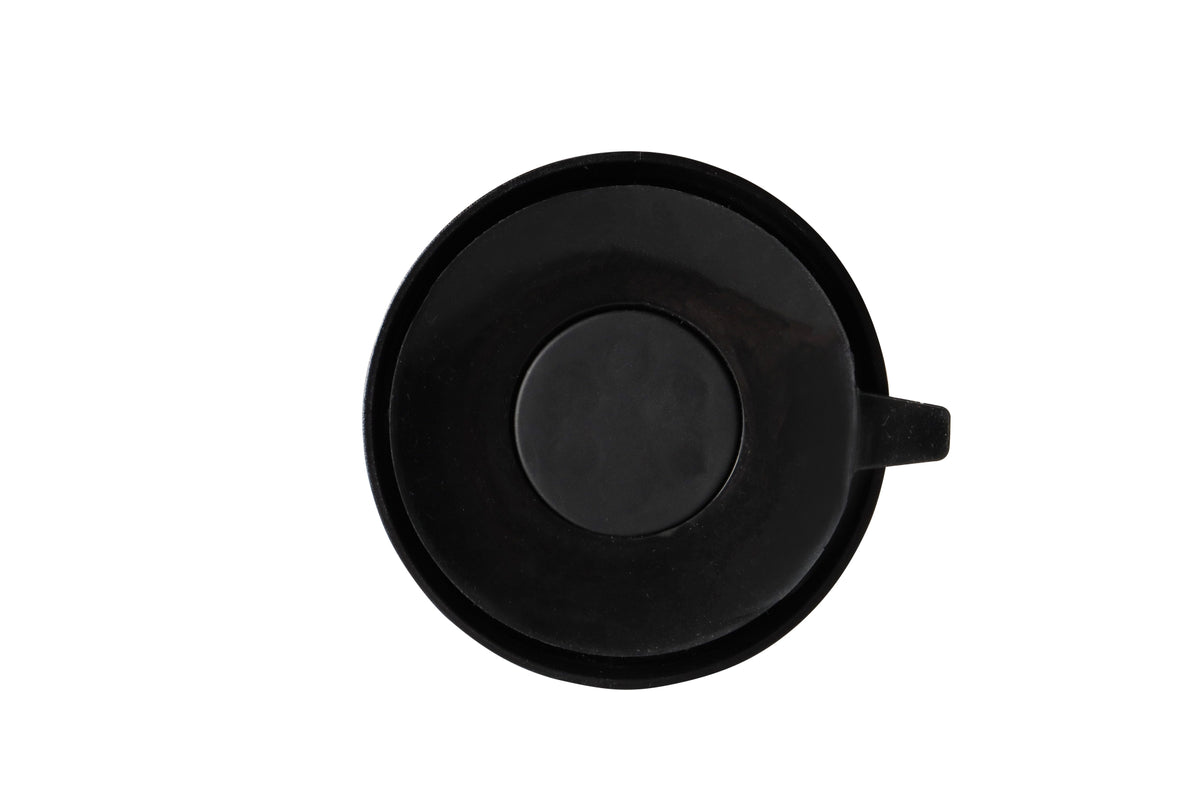

The installation is done via a magnetic base with a suction cup , which allows for quick installation and removal of the lamp without drilling and without permanent installation.

The housing has IP67 protection, and the specified operating temperature range is from -40°C to +60°C .

Technical characteristics

• Voltage: 12–24V
• Power: 19W
• Light color: Orange/Amber
• Light body: Smoky Lens
• Number of diodes: 36 LED
• Number of modes: 7
• Flashing modes: 3
• Rotation modes: 4
• Built-in battery: yes
• Remote control: yes
• Control from the housing: yes
• E-Mark: E9
• Marking: 10R-06
• Certificates / designations: ECE R10, CE, RoHS
• Water resistance: IP67
• Operating temperature: -40°C to +60°C

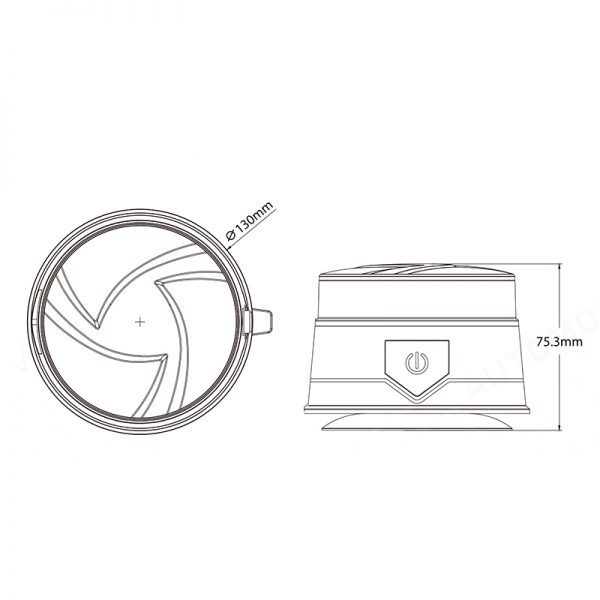

• Diameter: 130 mm
• Height: 75.3 mm
• Mounting: magnet + suction cup
• Cable length: 3.5 m
• Power connector: car cigarette lighter socket

Included

• 1 × smoked LED emergency light with orange light
• 1 × remote control
• 1 × 3.5 m spiral cable with car cigarette lighter plug
• Magnetic base with suction cup
