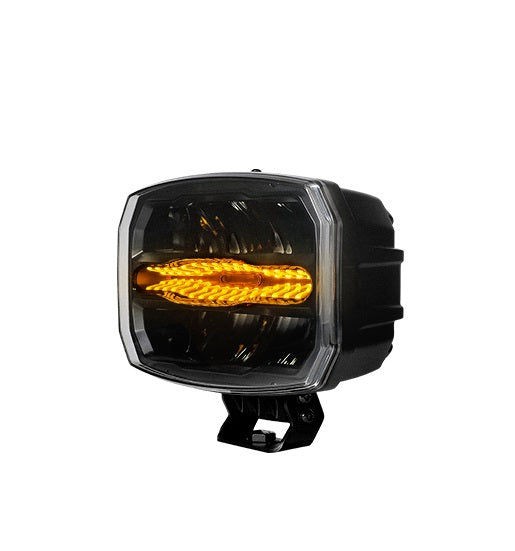

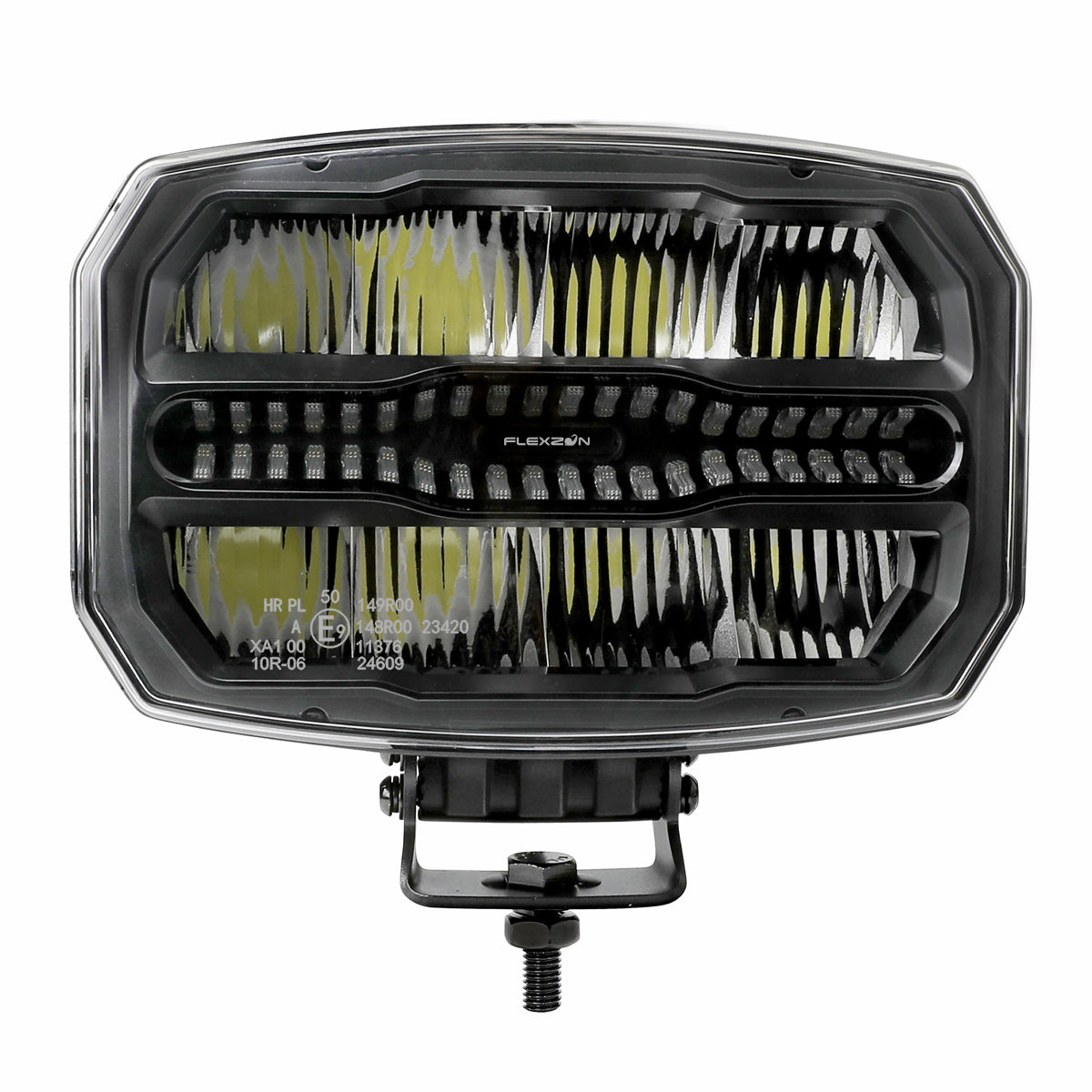

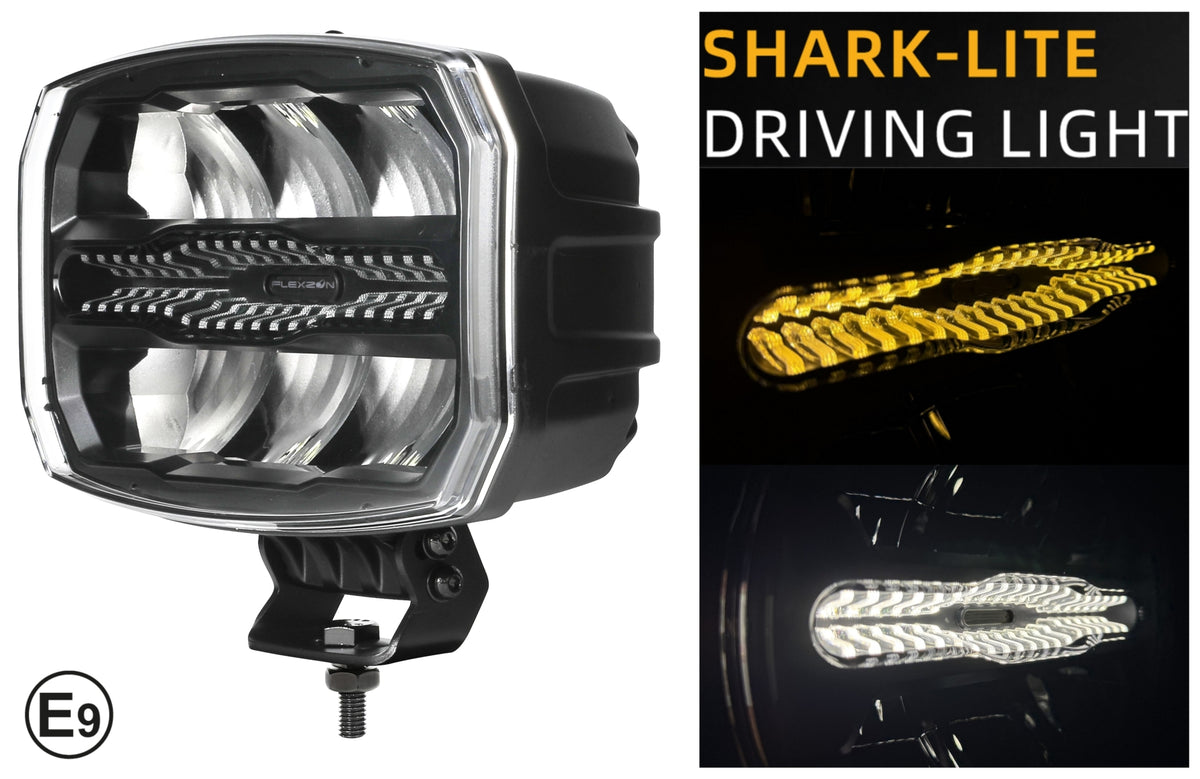

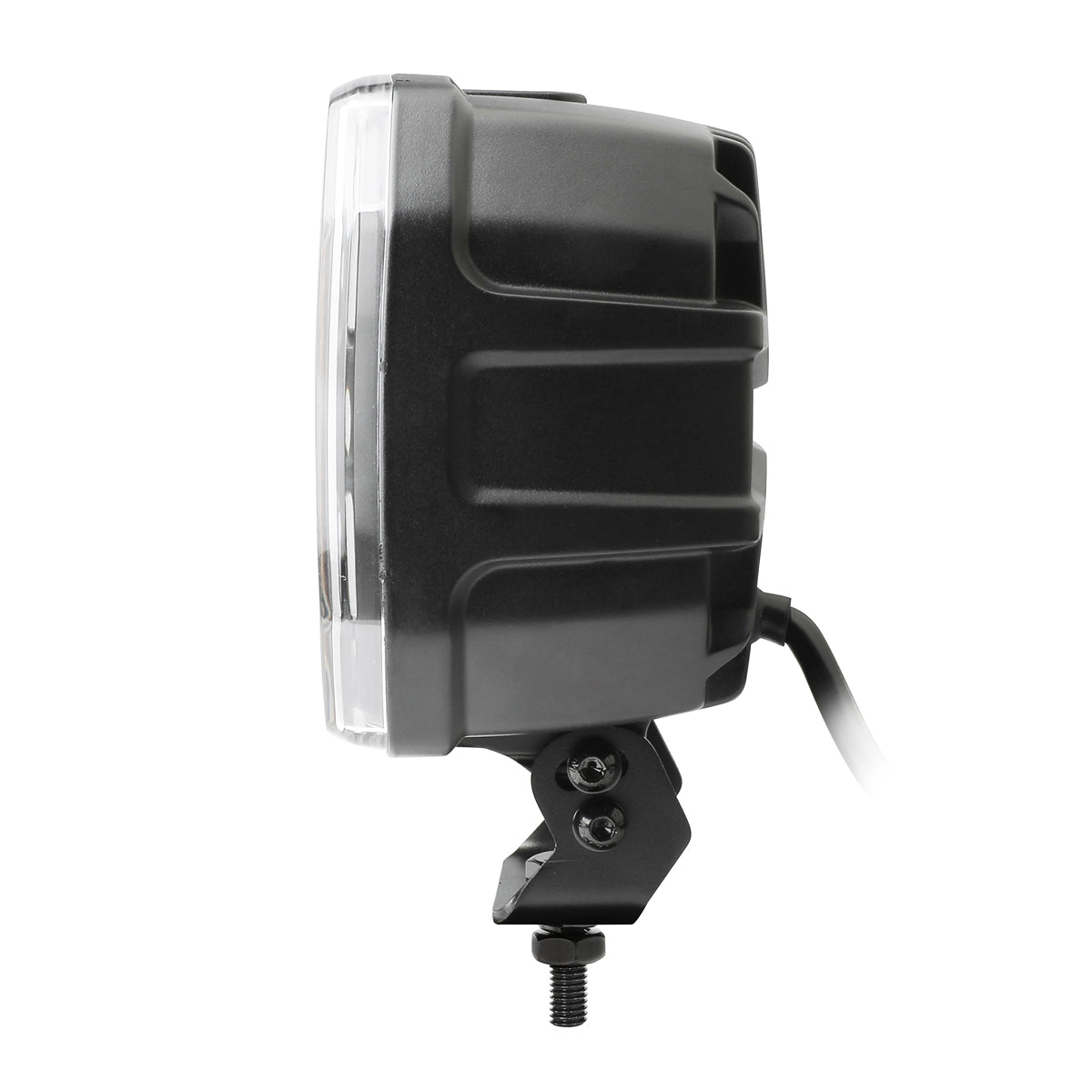

LED combined halogen Flexzon 12–24V, 175W, 11000 lm, orange/white DRL and emergency flash light with 4 modes

SHARK-LITE Flexzon LED halogen with combined functionality - powerful high beam, dynamic DRL in white or orange and built-in warning (flash) light.
Designed for professional use in harsh conditions - off-road, trucks, SUVs, 4x4, agricultural machinery and specialized vehicles.

Main advantages

• Two power modes: E-mode and Boost
• Extremely long and concentrated light beam
• DRL position: white or orange
• Built-in warning light with 4 flashing modes
• European ECE certificates
• High protection against water, dust and high-pressure washing

Technical specifications

Electrical parameters

• Operating voltage: 10–30V DC (12–24V)
• Actual power (13.5V):
  • E-mode: 100W
  • Boost: 175W
• Theoretical luminous flux:
  • E-mode: 7500 lm
  • Boost: 15000 lm
• Actual luminous flux:
  • E-mode: 5800 lm
  • Boost: 11000 lm

Light characteristics

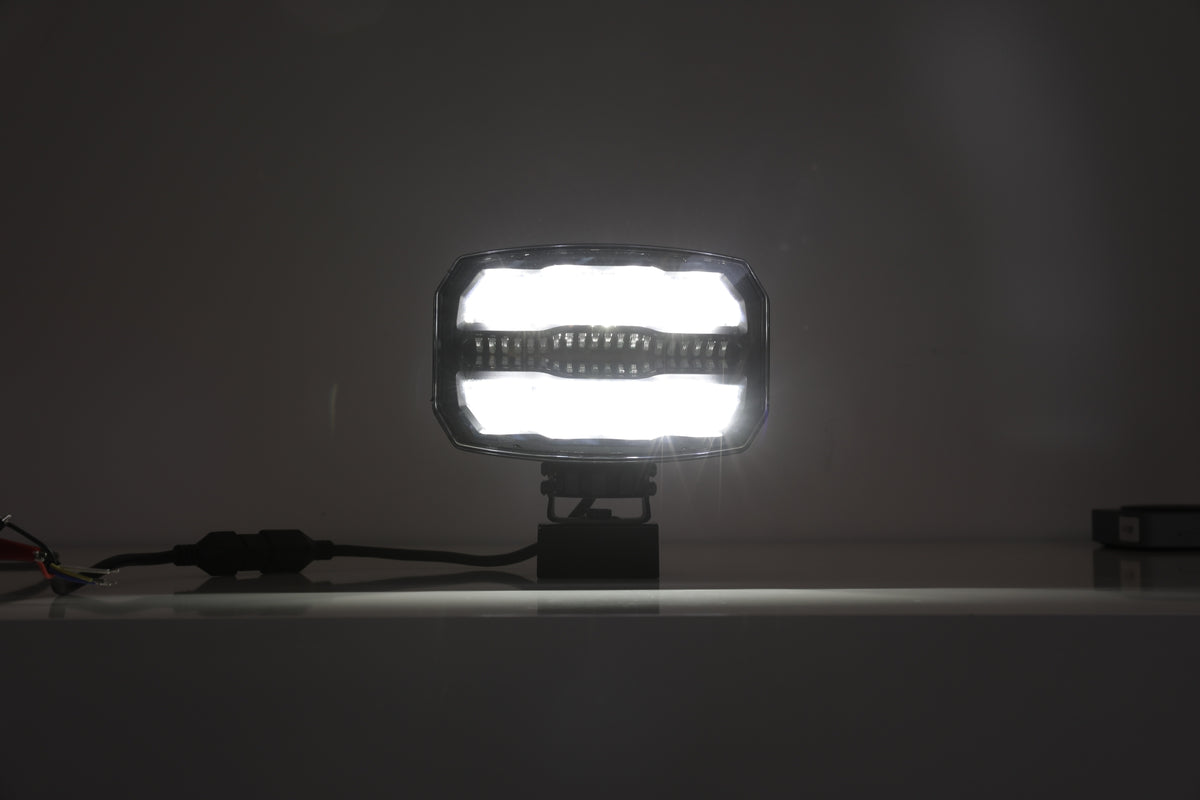

• Beam type: high beam (Driving Beam)
• 1 Lux:
  • E-mode: 420 m
  • Boost: 610 m
• Color temperature: 5000–5500K

Position and signal functions

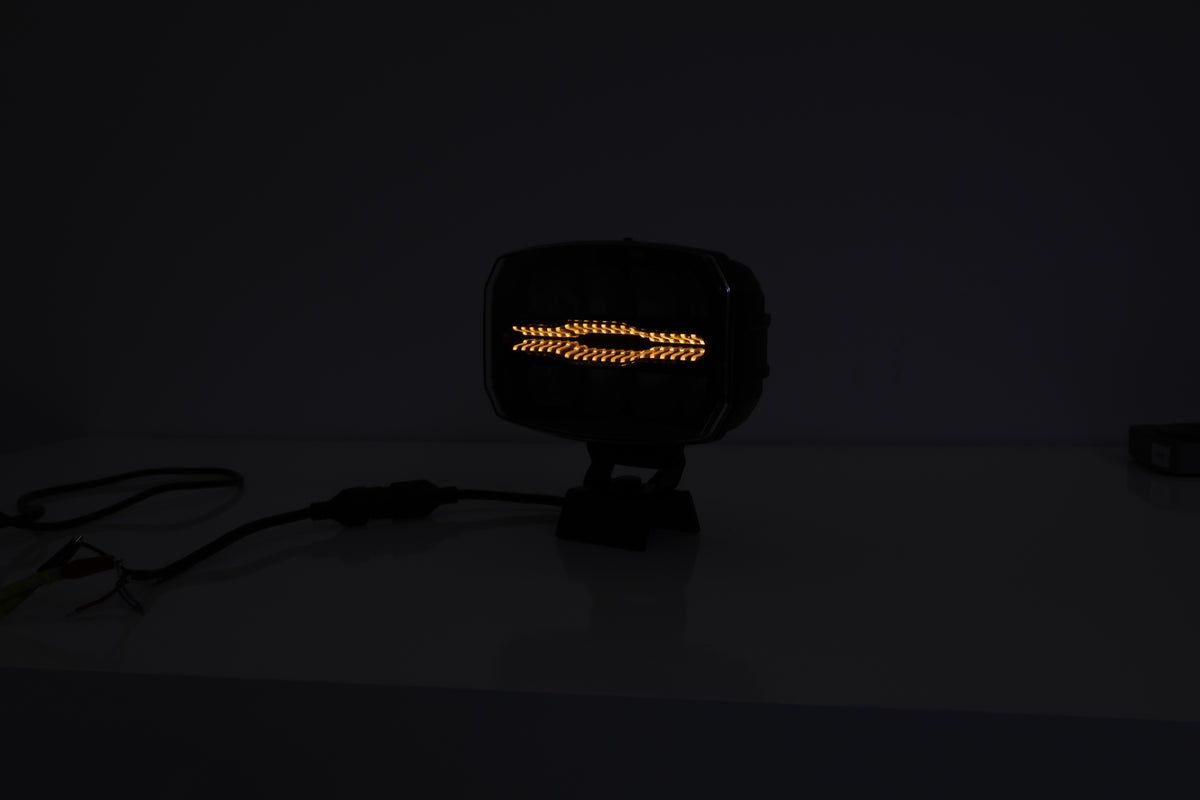

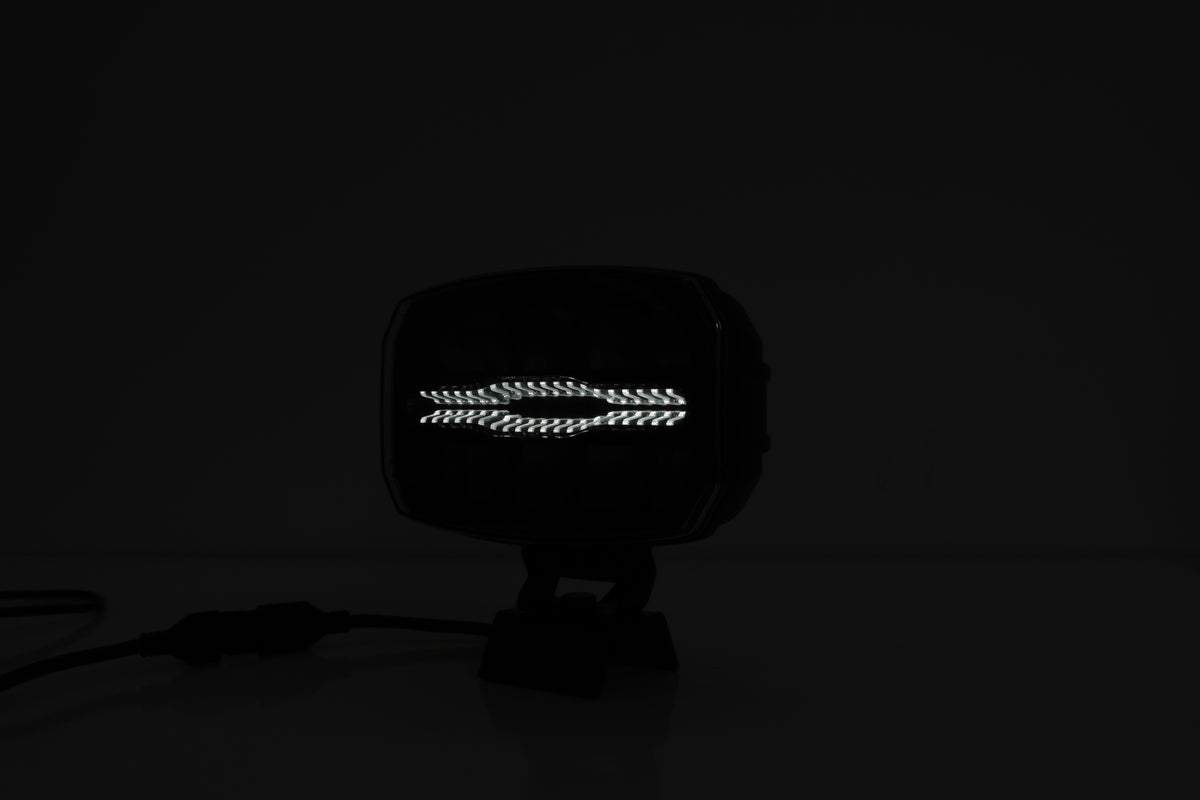

• DRL: dynamic white/orange
• Warning light: 4 flashing modes

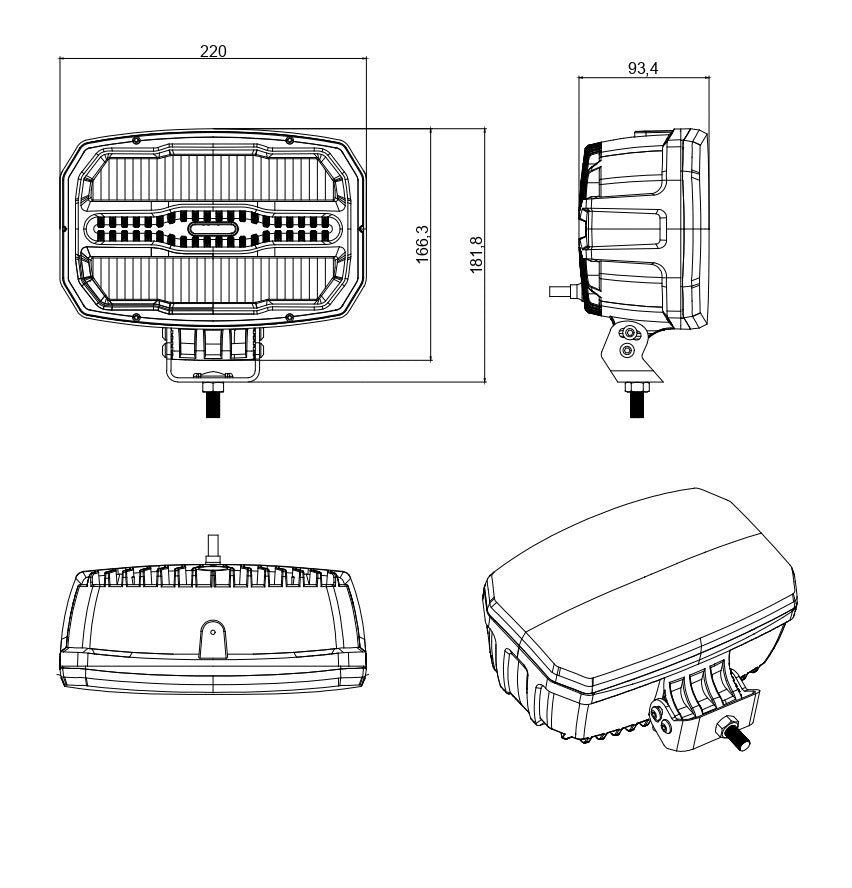

Construction

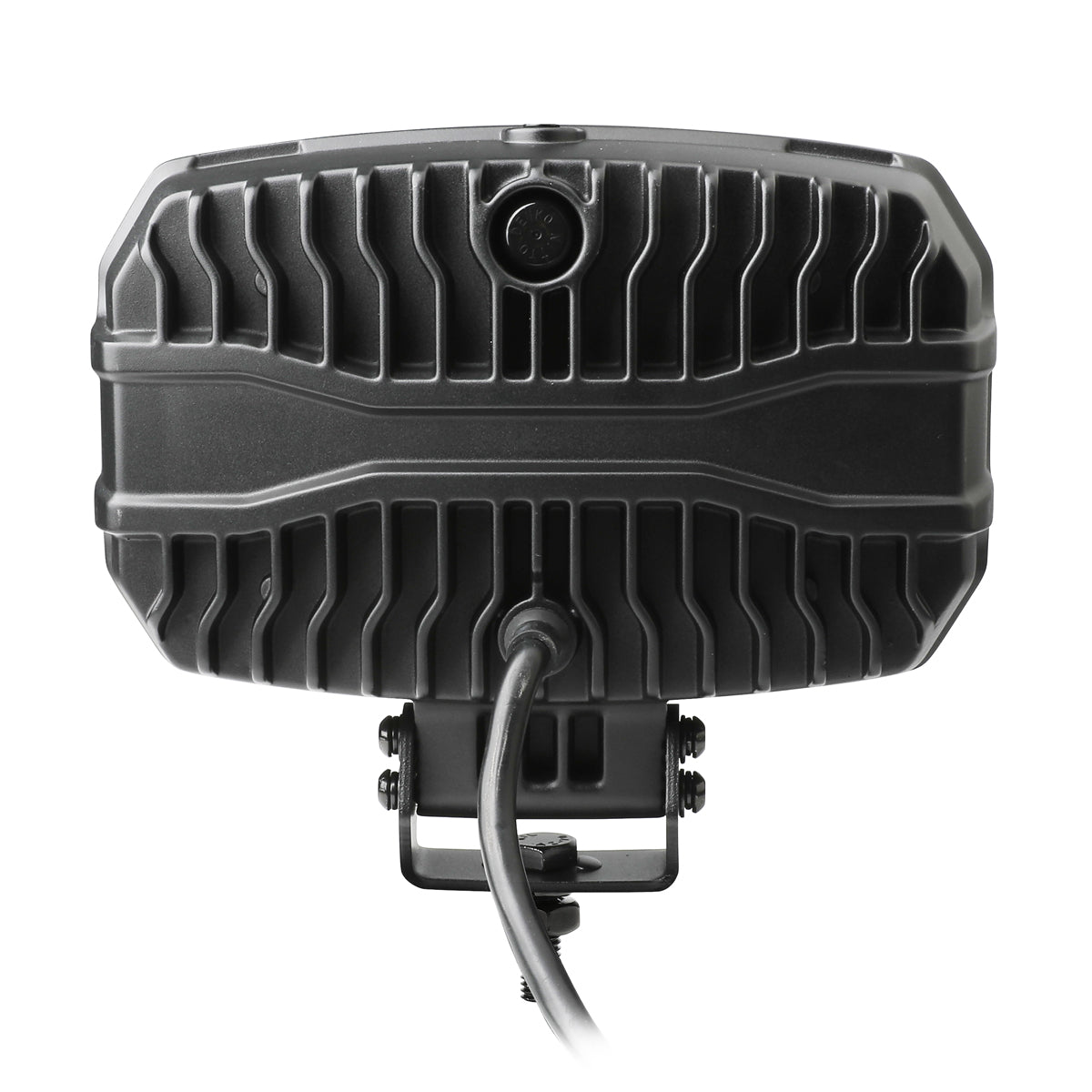

• Housing: aluminum
• Lens: polycarbonate
• Stand: stainless steel
• Cable: 30–35 cm

Working conditions

• Operating temperature: from -40°C to +60°C
• Protection level: IP67 and IP69K

Certificates

• E-mark: R149, R148, R65
• EMC: ECE R10
• Reference number: 50

Connecting cables

• Black – ground (minus)
• Red – main light
• Yellow-orange DRL
• White – white DRL
• Gray – warning light
• Blue – synchronization / mode change

Applications
Suitable for:

• Trucks and tractors
• SUVs and off-road vehicles
• Jeeps and 4x4s
• Agricultural machinery
• Specialized and emergency vehicles
