LED Bar Flexzon SHARK-LITE BOOST 47 cm, 125W, 11000 lm, white/orange DRL, emergency flash light with 4 modes

Product description

The Flexzon SHARK-LITE BOOST LED bar is a multifunctional LED bar for vehicles with a 10–24V DC electrical system , which combines powerful main lighting, white and orange gauges and emergency warning signaling.

It has two main lighting modes – Boost 125W / 11000 lm and E-mode 65W / 6500 lm , as well as dynamic start .

It is suitable for cars, SUVs, vans, trucks, roadside assistance, specialized vehicles, construction and agricultural equipment.

Main functions

• Basic white LED light
• Boost mode – 125W / 11000 lm
• E-mode – 65W / 6500 lm

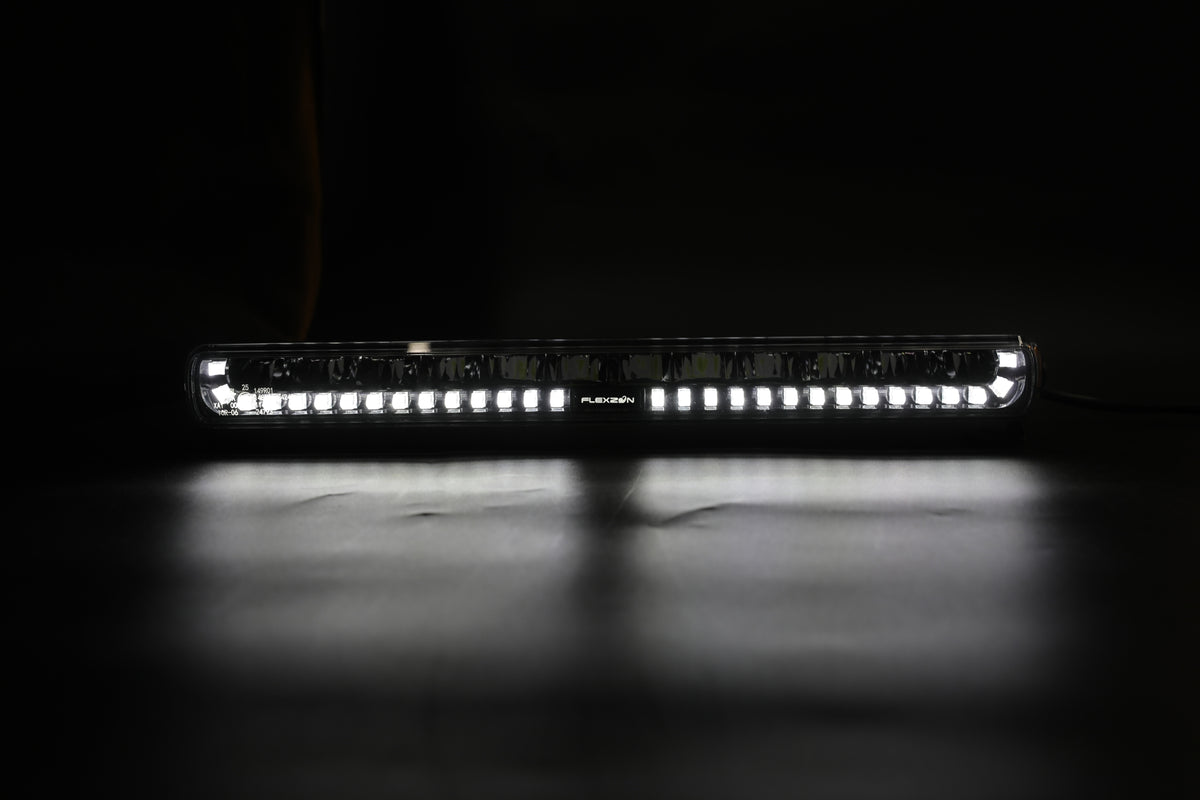

• White marker light

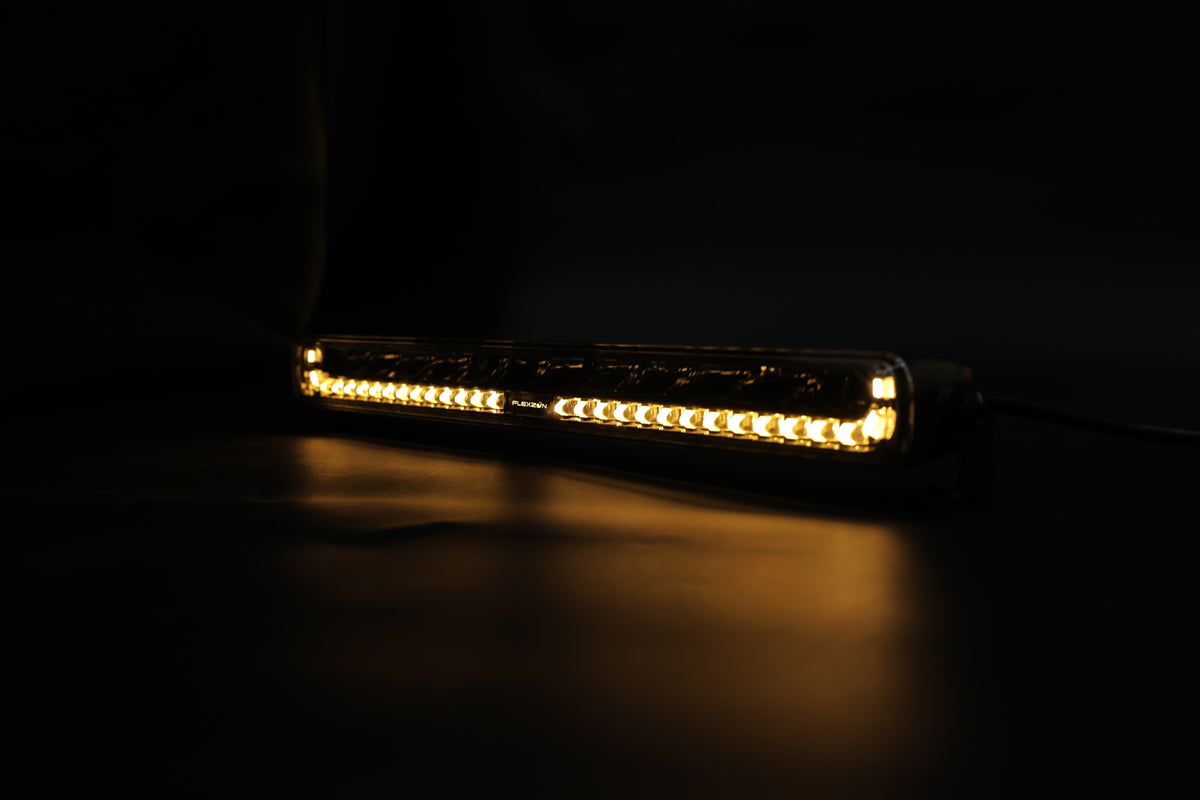

• Orange marker light
• Emergency warning light
• Dynamic start
• Synchronization and mode switching

E-Mark E9 and certification

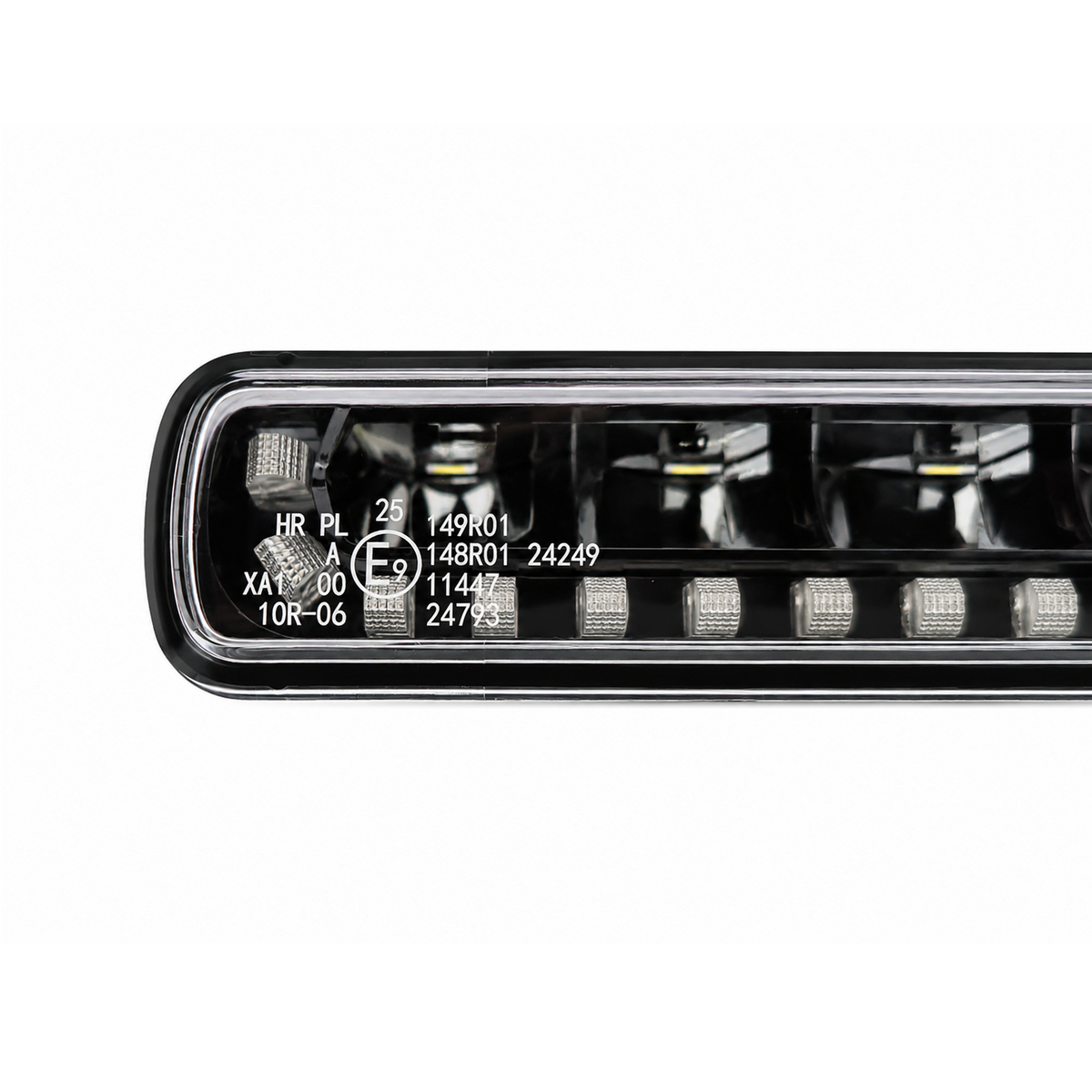

The LED bar has an E-Mark E9 marking , indicated on the front of the product.

It is certified according to:

• ECE R10
• ECE R65
• ECE R148
• ECE R149

Boost and E-mode

In Boost mode , the LED bar reaches a maximum power of 125W and a luminous flux of 11000 lm .

In E-mode it operates with a power of 65W and a luminous flux of 6500 lm .

The two modes allow the use of main lighting with different power levels according to specific conditions.

White and orange gauge

The integrated LED section provides white and amber marker lights , with both functions controlled via separate wires.

The LED bar also features a separate emergency warning light , certified to ECE R65 .

Aluminum housing

The housing is made of aluminum and features cooling fins at the back for effective heat dissipation.

The compact profile with a height of 5 cm allows the installation of various types of vehicles and work equipment.

Technical characteristics

• Voltage: 10–24V DC
• Boost Power: 125W
• E-mode power: 65W
• Boost luminous flux: 11000 lm
• Luminous flux E-mode: 6500 lm
• Marker light: white/orange

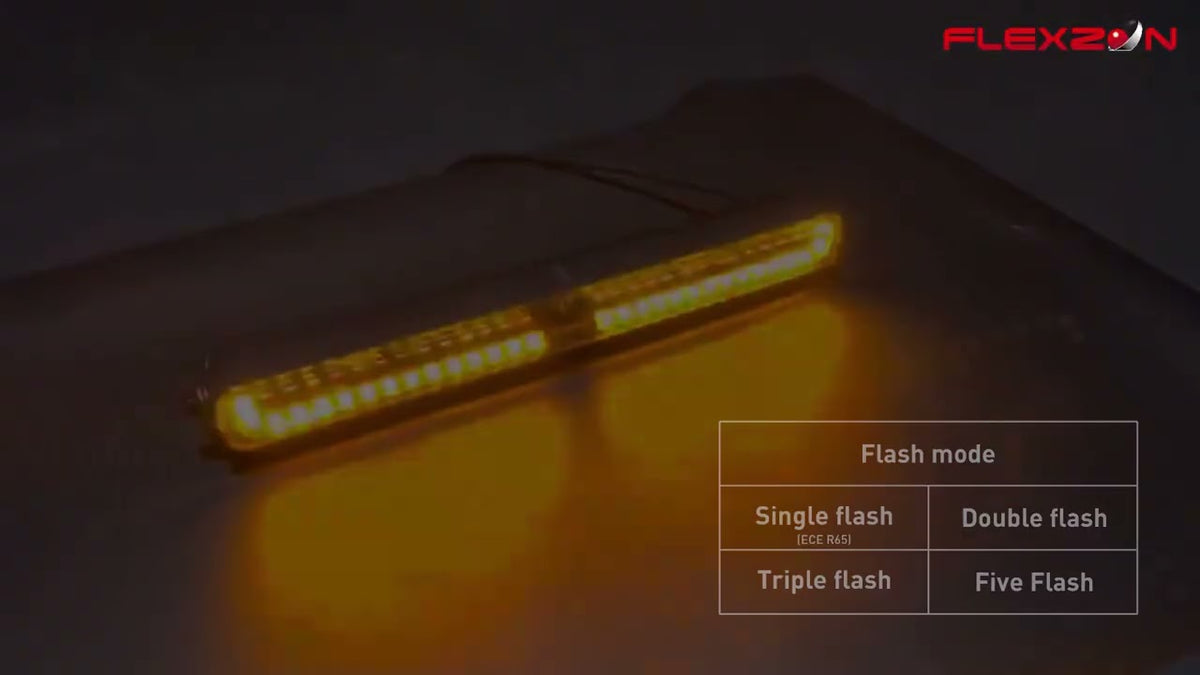

• Emergency signaling – 4 operating modes
  Single Flash – single sequential flashing
  Double Flash – two sequential flashing
  Triple Flash – three sequential flashing
  Five Flash – five sequential flashing
• Dynamic start: yes
• Synchronization / mode switching: yes
• E-Mark: E9
• Certificates: ECE R10, ECE R65, ECE R148, ECE R149
• Housing material: aluminum
• Case width: 47 cm
• Height: 5 cm
• Thickness: 7 cm

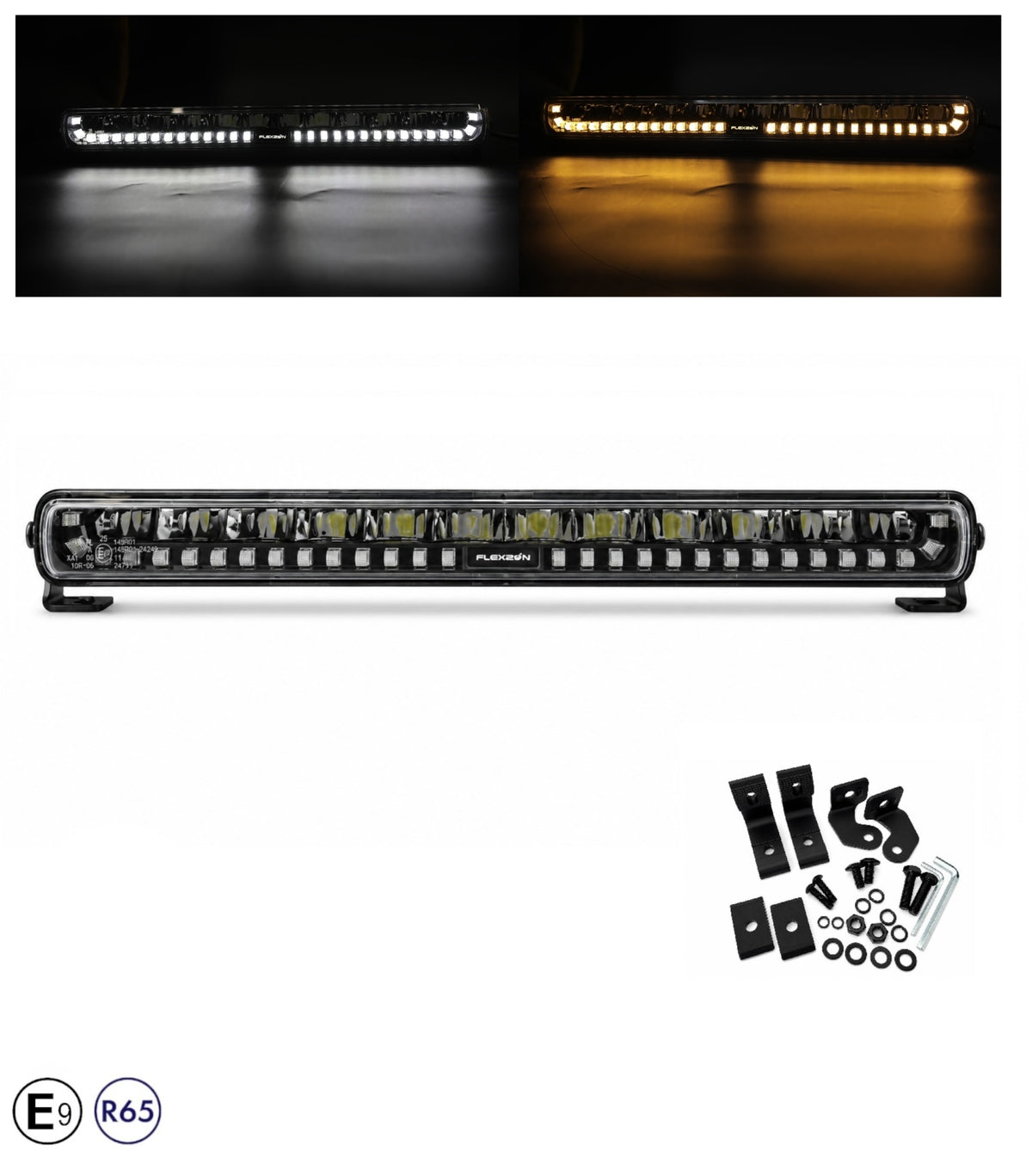

• Installation: with metal stands and fasteners

The 47 cm size is the width of the LED bar body only, without the mounting brackets.

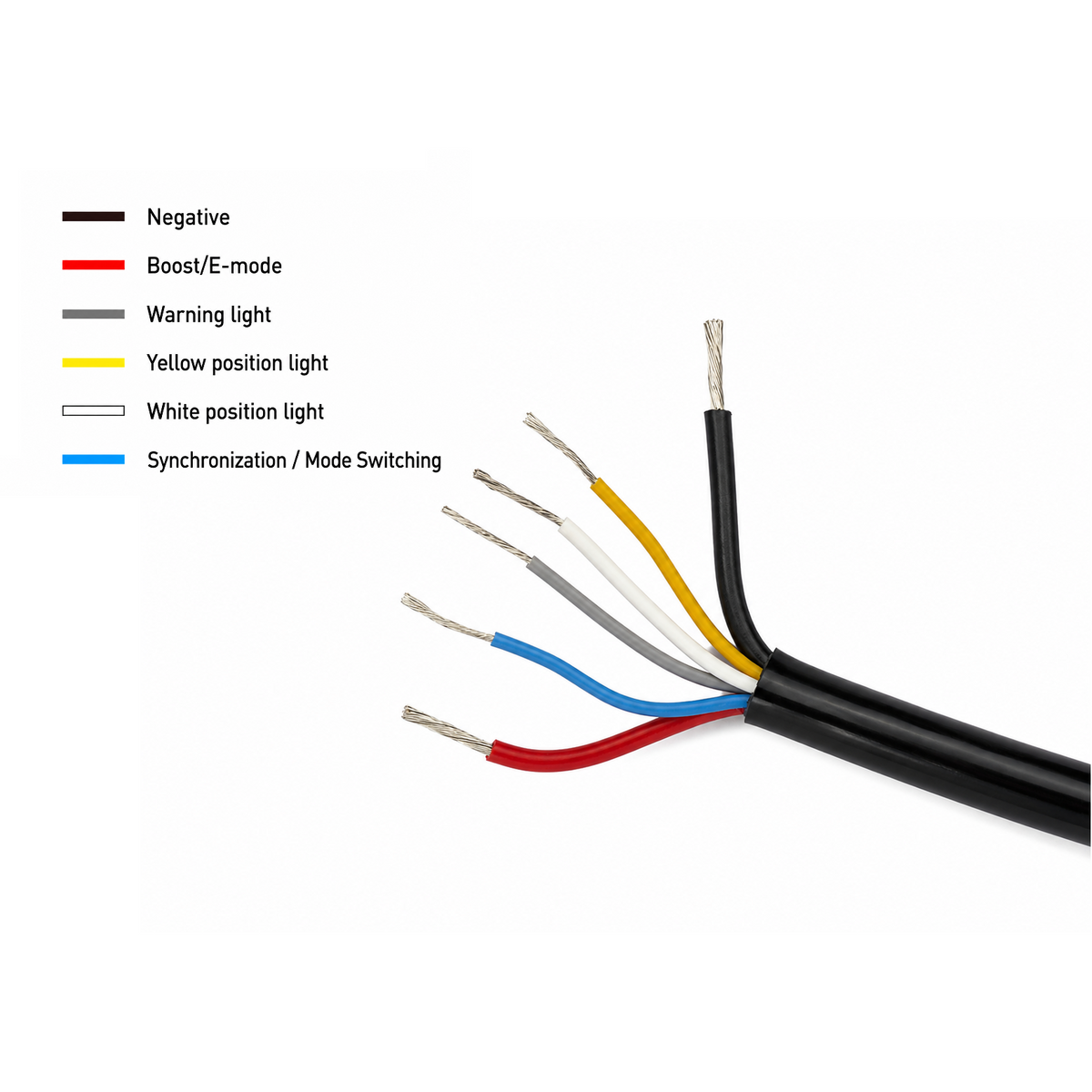

Connecting the cables

• Black: ground / Negative
• Red: Boost / E-mode
• Gray: emergency warning light
• Yellow: orange marker light
• White: white marker light
• Blue: synchronization / mode switching
