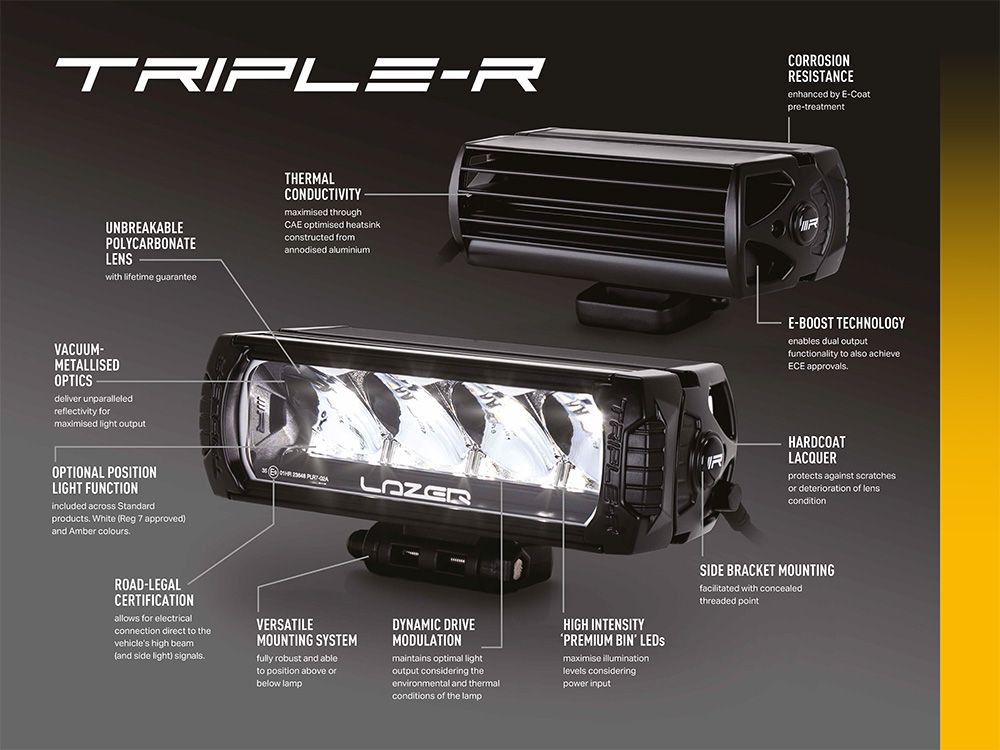

High-efficiency 11W LEDs with a 5000K colour temperature deliver maximum sharpness, definition, and long-range visibility.

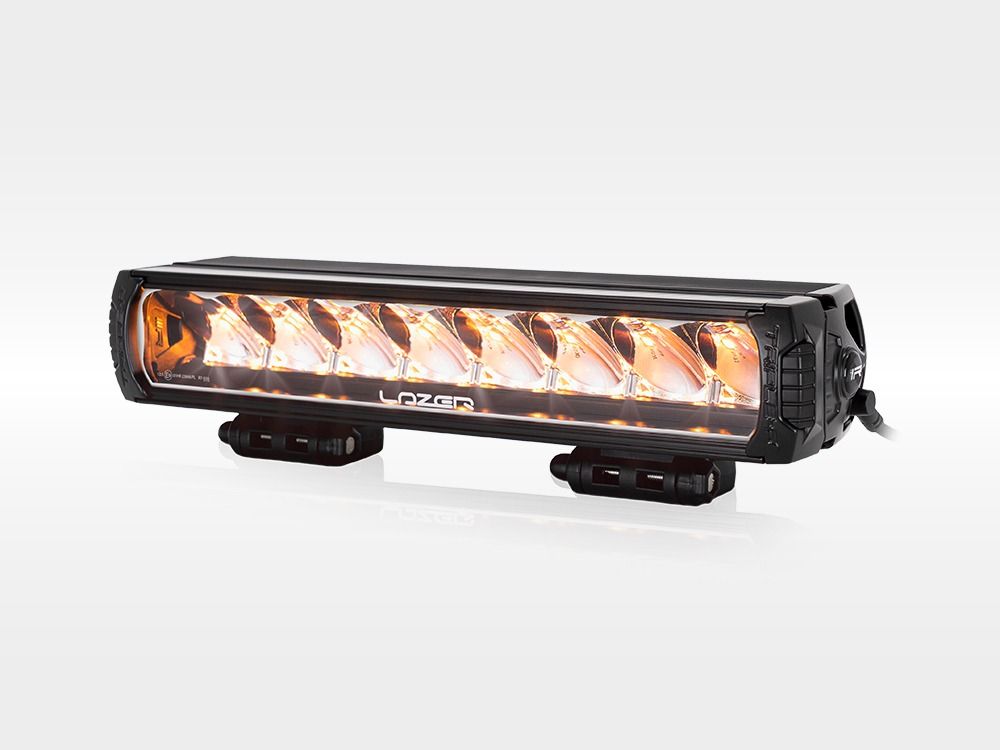

Integrated white and amber position light function (UNECE Reg148 approved – white only)
Gradual brightening and smooth colour transitions available via dynamic start-up/ welcome mode.
Ultra-reflective vacuum-metallised optics deliver spot beam pattern
UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Dual-output technology via flash-to-dim)
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage and reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty
Supplied with pre-wired male/female 3-pin Superseal connectors
Designed & manufactured in UK

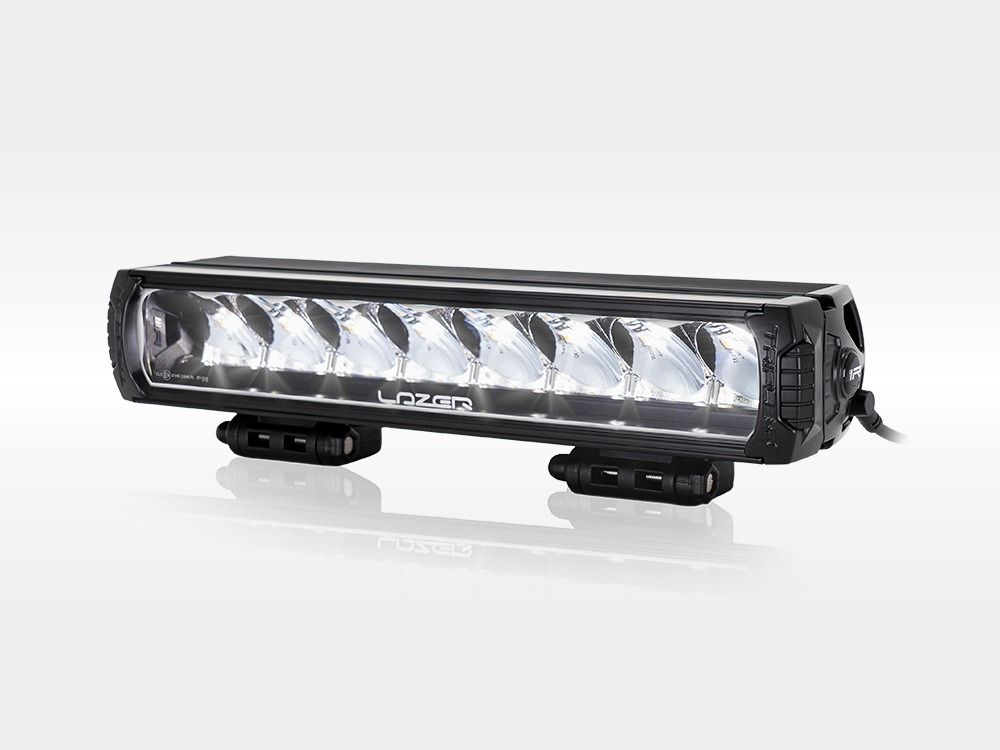

| 1x TRIPLE-R 1000 |
BOOST
MODE
|
LOW OUTPUT/
E-MARK MODE
|
| |
|
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hours |
| Weight |
1.7kg |
| |
| HIGH BEAM FUNCTION |
| Total Luminous Flux |
9,240 Lm |
1,848 Lm |
| Total Driver 'FOV' Flux † |
5,572 Lm |
1,114 Lm |
| Colour Temperature |
5000K |
| Power Consumption |
88 Watts |
17.6 Watts |
| Peak Current Draw |
7.2 Amps |
0.88 Amps |
| Current Draw (14.4V) |
6.1 Amps |
0.74 Amps |
| Connector |
6-Pin Superseal (+25cm Cable) |
| |

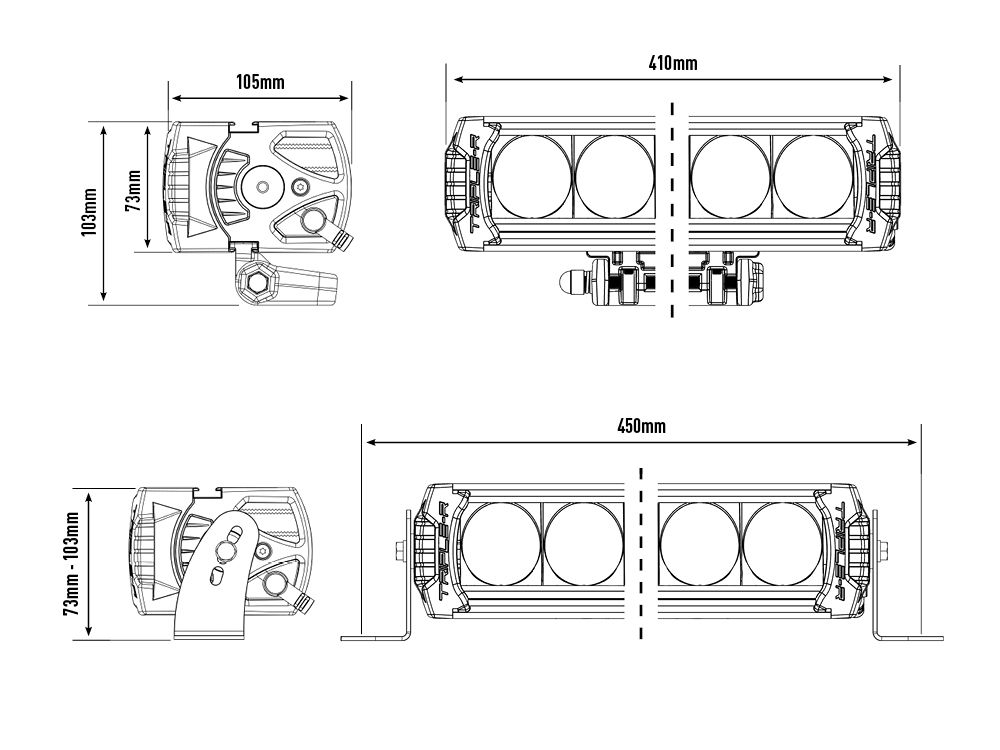

| DIMENSIONS |
| Width |
410mm |
| Depth |
105mm |
| Height |
73mm |
| |
| CERTIFICATION |
| IP Rating # |
IP68 |
| High Beam (E9 approval) |
ECE R149 - Ref: 12 .5 (in Low Output Mode only) |
| Position Light (white only) |
ECE R148 |
| EMC Certification |
ECE R10 |
| Salt Spray Test |
ISO 9227 |
| Dump Load Protection |
ISO 7637-2 |
| |

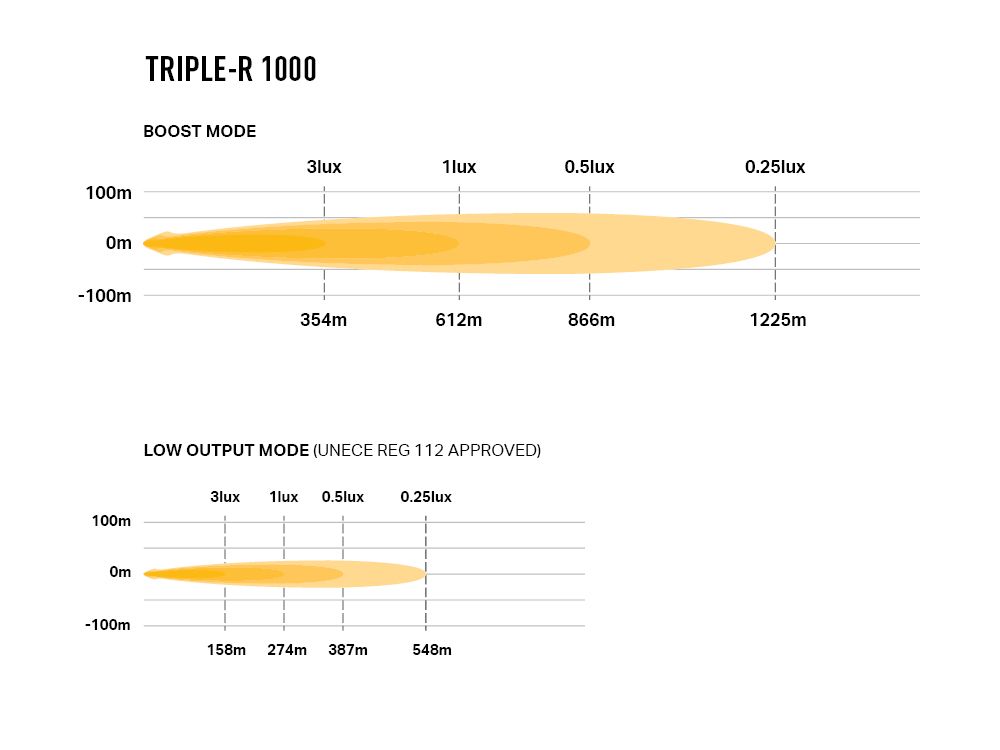

| PHOTOMETRIC DATA |
| Horizontal / Vertical Beam Angle |
28° / 16° |
| 0.25 Lux |
1225m |
548m |
| 0.5 Lux |
866m |
387m |
| 1 Lux |
612m |
274m |
| 3 Lux |
354m |
158m |
| |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
