Lazer Lamps VW Crafter (2017+) Triple-R 750 Grille Kit

Lazer Lamps VW Crafter (2017+) Triple-R 750 Grille Kit

£505.00 GBP
£505.00 GBP
Sale Sold out

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

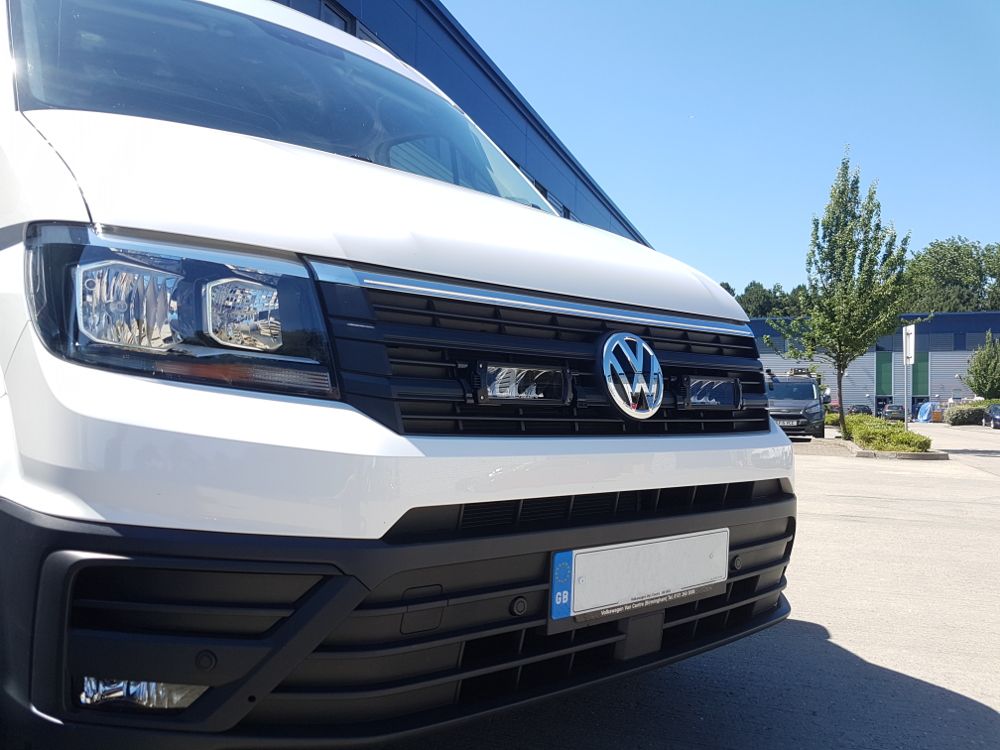

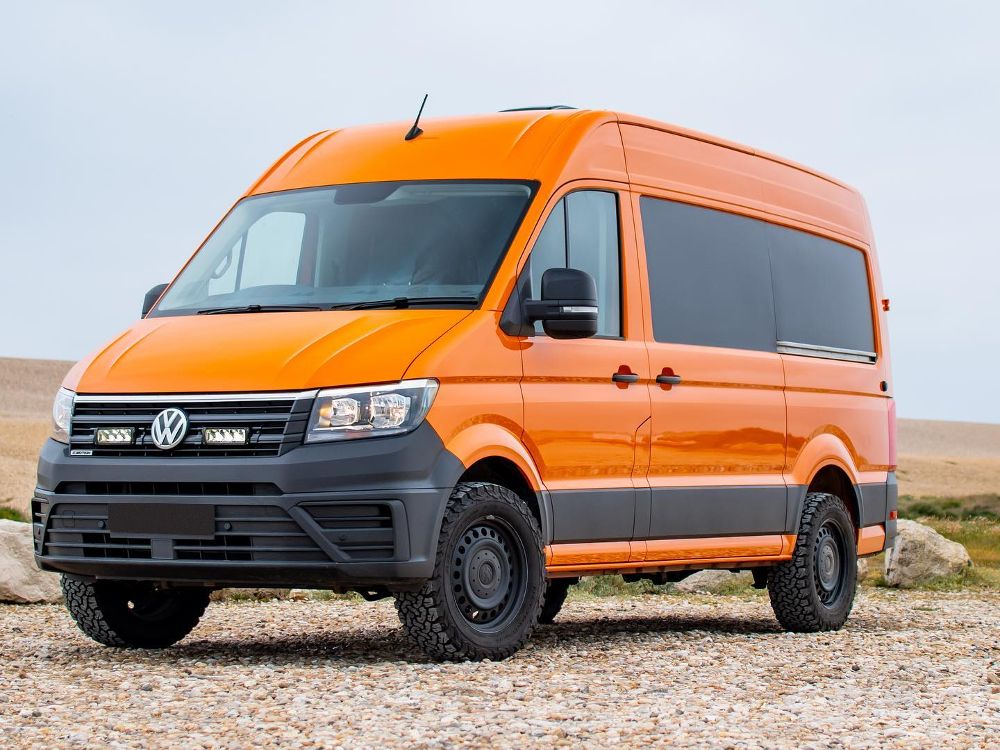

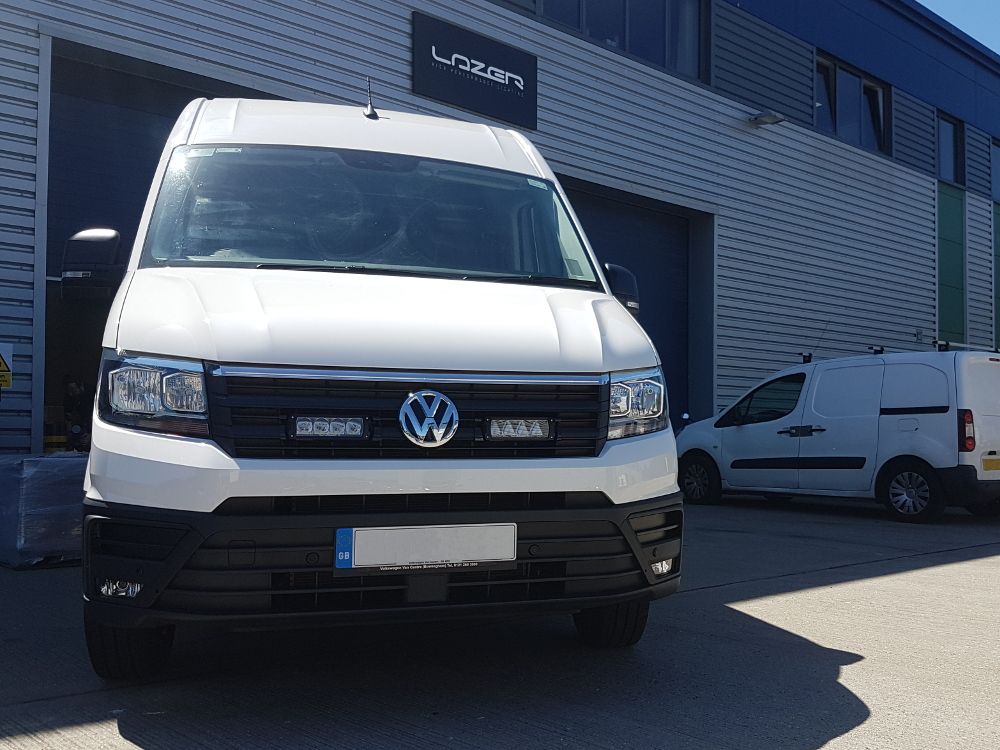

The VW Crafter kit, designed for MY17 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.

The Lazer Grille Integration Kit for the VW Crafter is optimised for use with Triple-R 750 High Performance LED Spotlights.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.


  • Bespoke vehicle integration kit for Lazer LED Spotlight installation
  • Custom fit for VW Crafter (2017+)

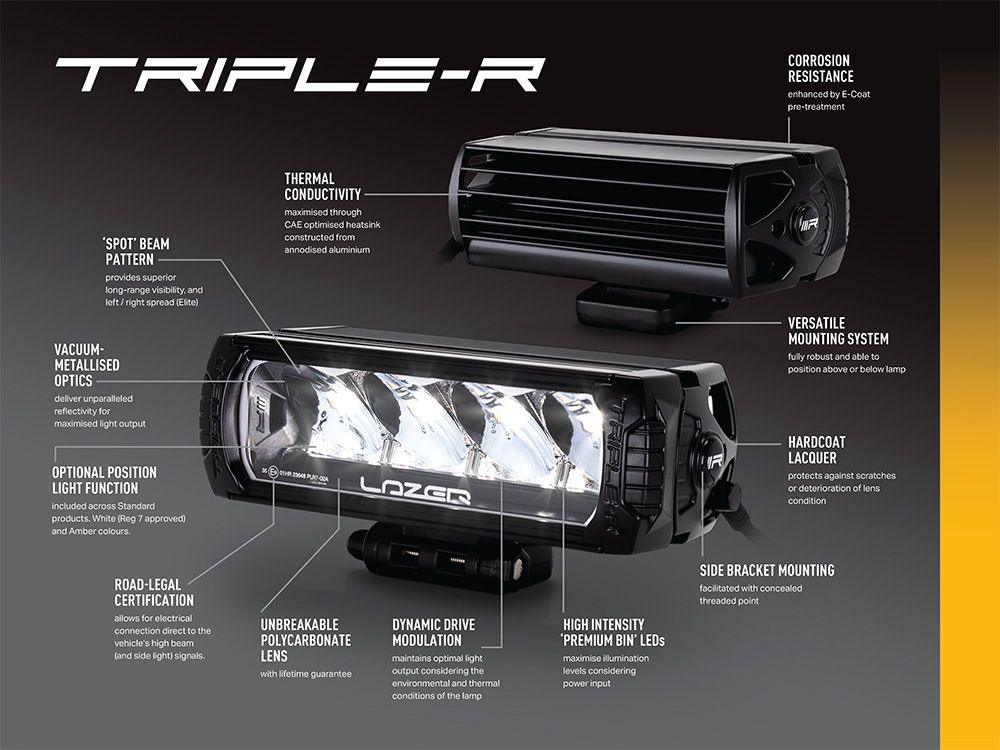

  • Designed for use with Triple-R 750 High Performance LED Spotlights
  • Added option for white or amber position/side light function (Standard model only)
  • Kit also includes bespoke mounting brackets and two-lamp wiring kit
  • Brackets made from high strength, UV -stable, ASA material
  • Fully road-legal
  • 5-year warranty
  • Made in Britain


What's included:
- x2 Triple-R 750 High Performance LED Spotlights

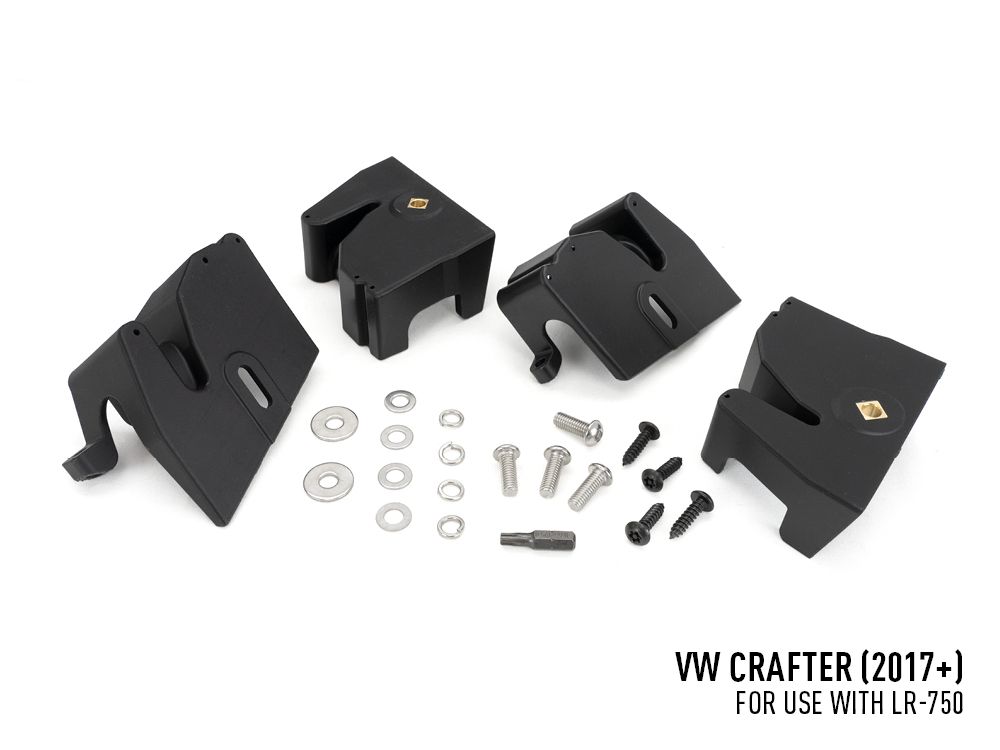

- x1 Mounting Kit (comprising 4x Brackets and fasteners)
- x1 Cutting Guide (comprising 4x Brackets)

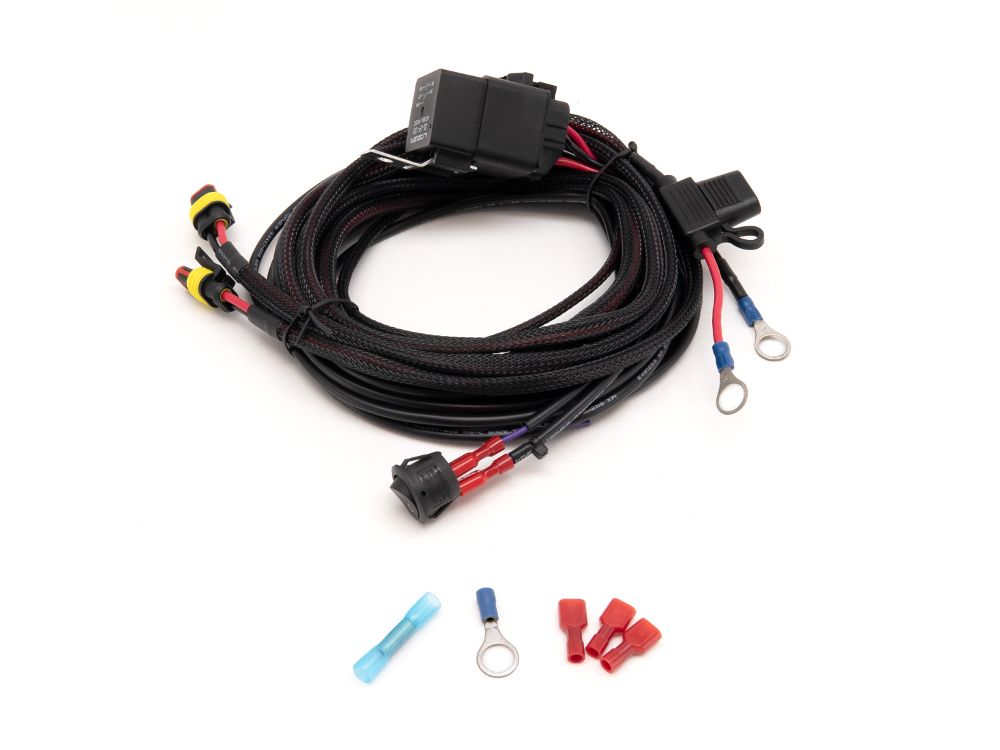

- x1 Two-Lamp Wiring Kit
- x1 Installation instructions


Technical Specifications:

2x
TRIPLE-750
WIDE

2x
TRIPLE-R 750

2x TRIPLE-R 750
BEACON
(BOOST MODE)

2x
TRIPLE-R 750 ELITE
(BOOST MODE)
Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg 2.6 kg 2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 9240 Lm 10800 Lm

10136 Lm
Total Driver 'FOV' Flux † 5266 Lm 5572 Lm 2484 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Power Consumption 88 Watts 88 Watts 104 Watts 104 Watts
Current Draw (14.4V) 6.2 Amps 6.2 Amps 7.4 Amps 7.2 Amps
Connector 2-Pin Superseal
(+25cm Cable)		 3-Pin Superseal
(+25cm Cable)		 6-Pin Superseal
(+25cm Cable)		 2-Pin Superseal
(+25cm Cable)
CERTIFICATION
IP Rating # IP68 IP68 IP68 IP68
High Beam
(E9 approval)		 ECE R149 - Ref: 2x 20 ECE R112 - Ref: 2x 35 ECE R149 - Ref: 2x 10 (Low Output Mode) ECE R112 - Ref: 2x 12.5
(Low Output Mode)
Position Light (White) N/A ECE R7 ECE R7 N/A
EMC Certification ECE R10 ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 40° / 20° 19° / 18° 28° / 16° 42° / 13°
0.25 Lux 829m 1225m 1249m 1358m
0.5 Lux 587m 866m 883m 960m
1 Lux 415m 612m 624m 679m
3 Lux 239m 354m 361m 392m



† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
