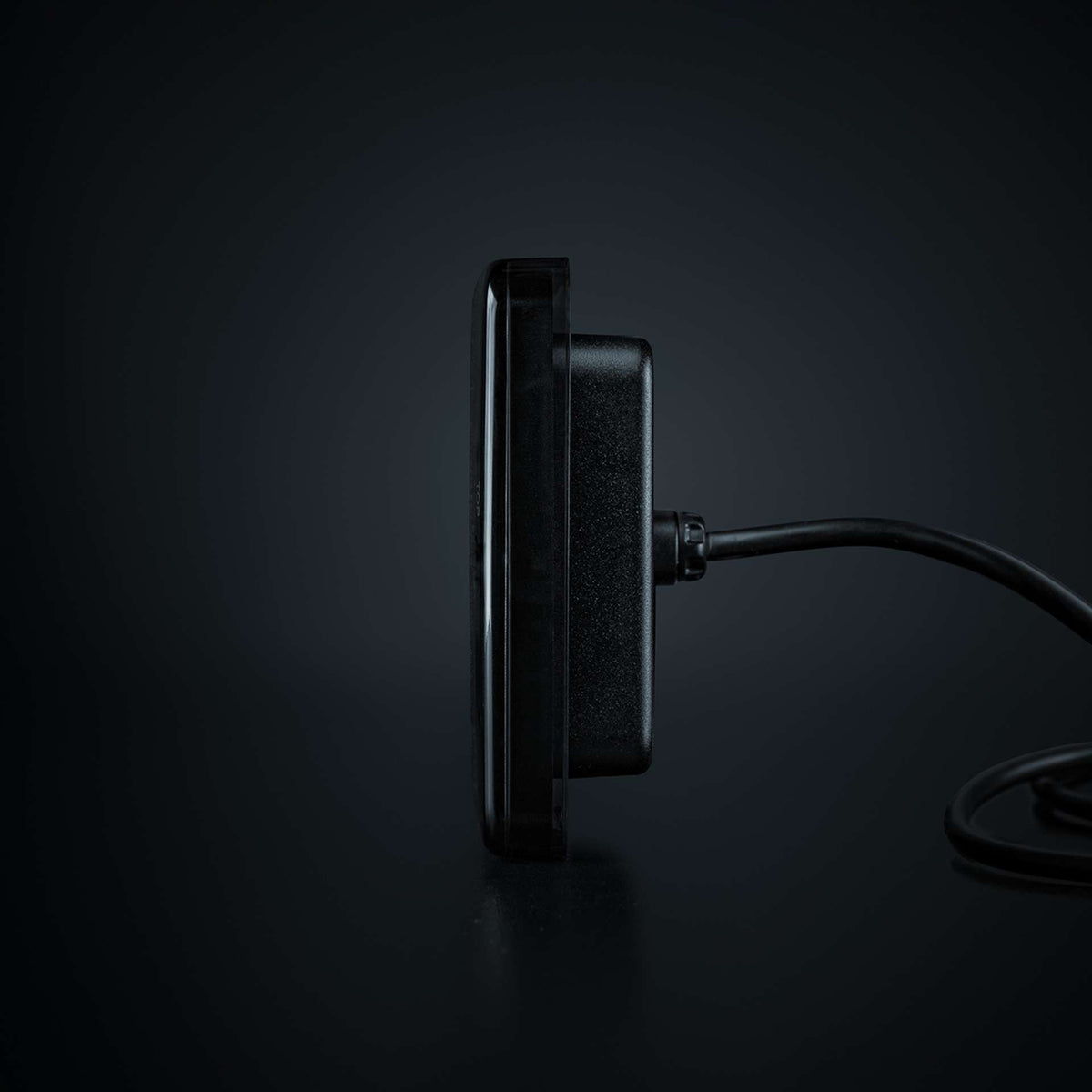

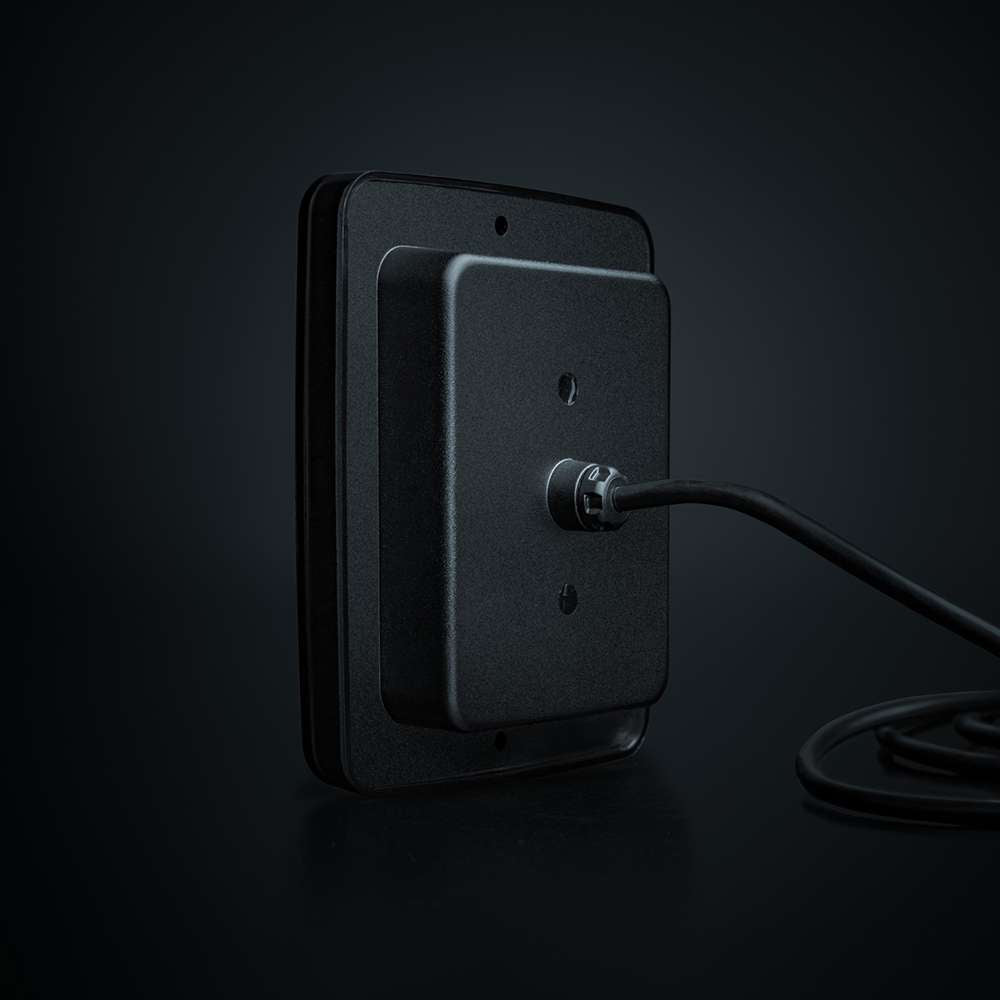

FOR9T ILLUSION 3 FUNC. TAIL LIGHT Horizontal / vertical approved SKU: 800655

Product Description

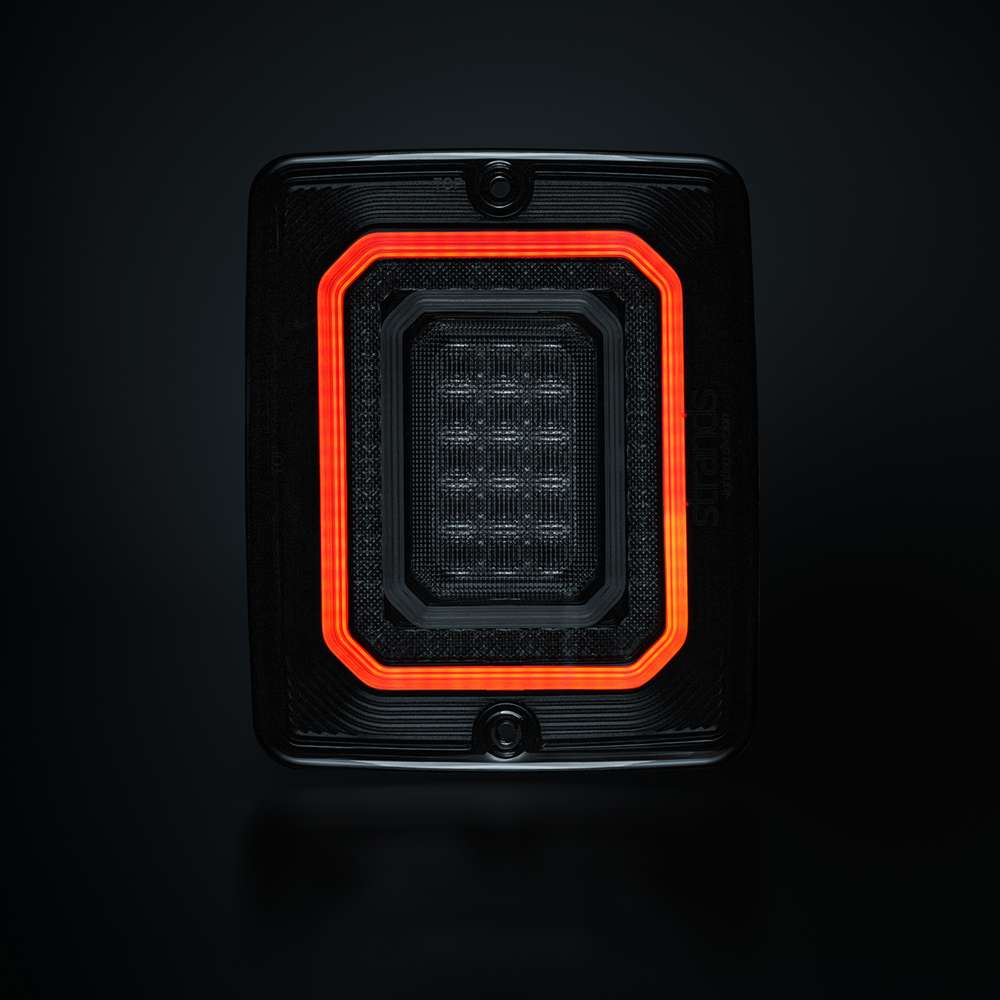

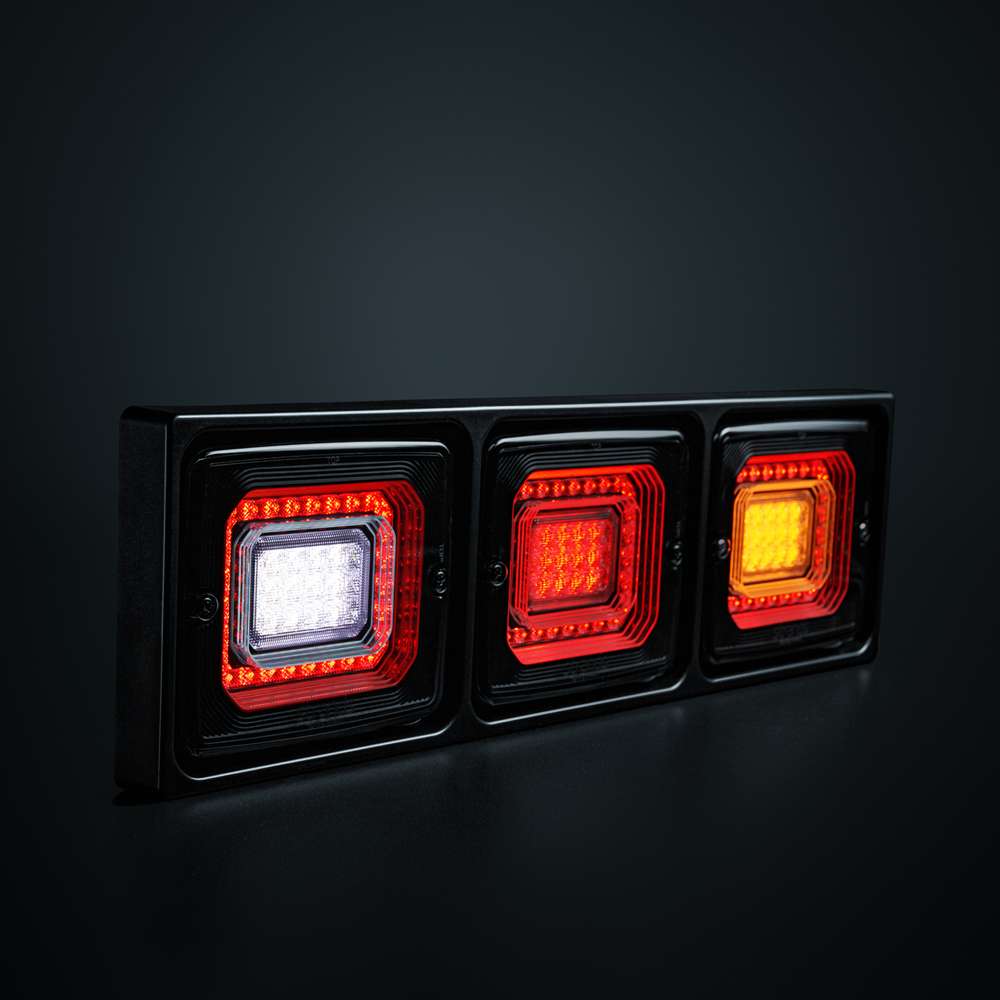

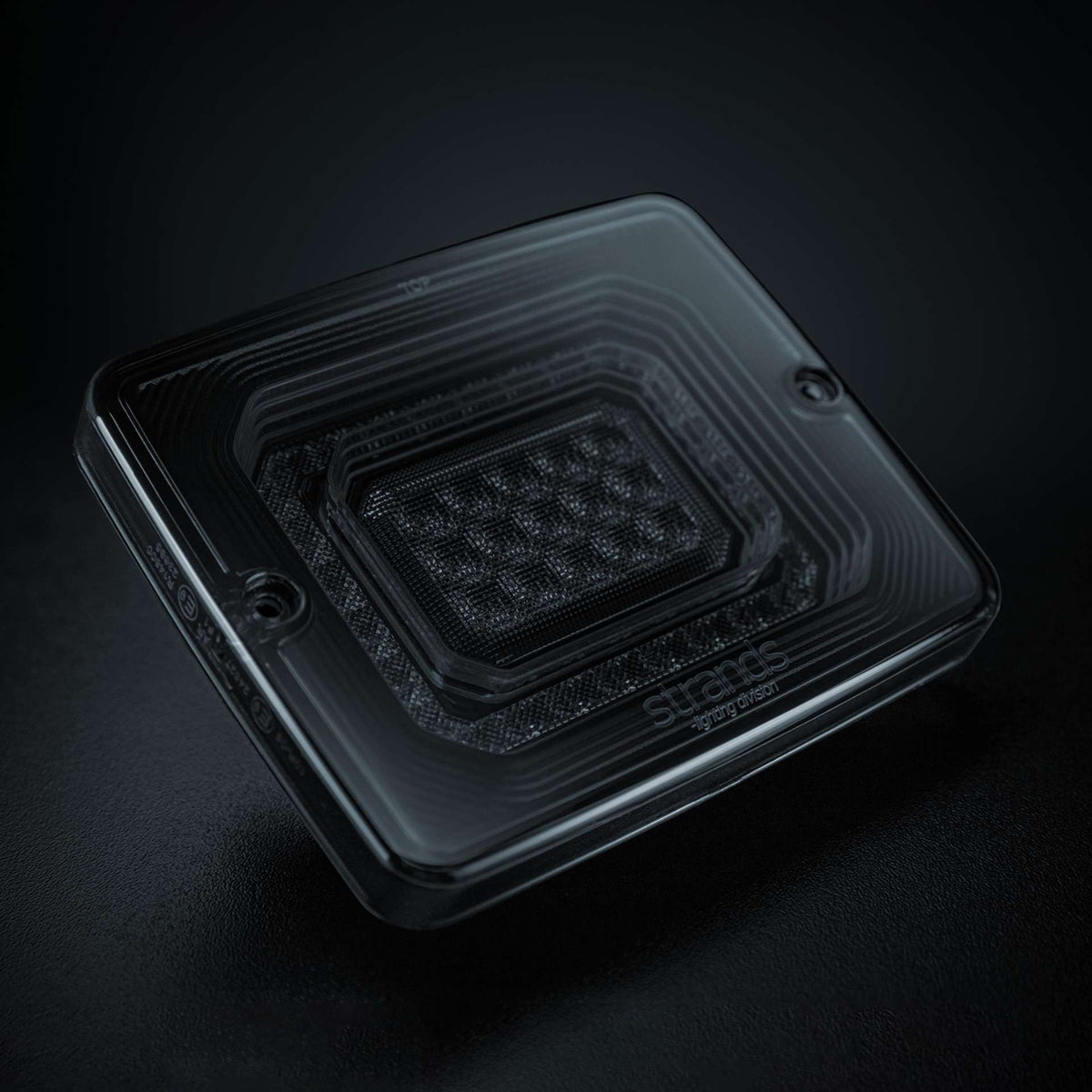

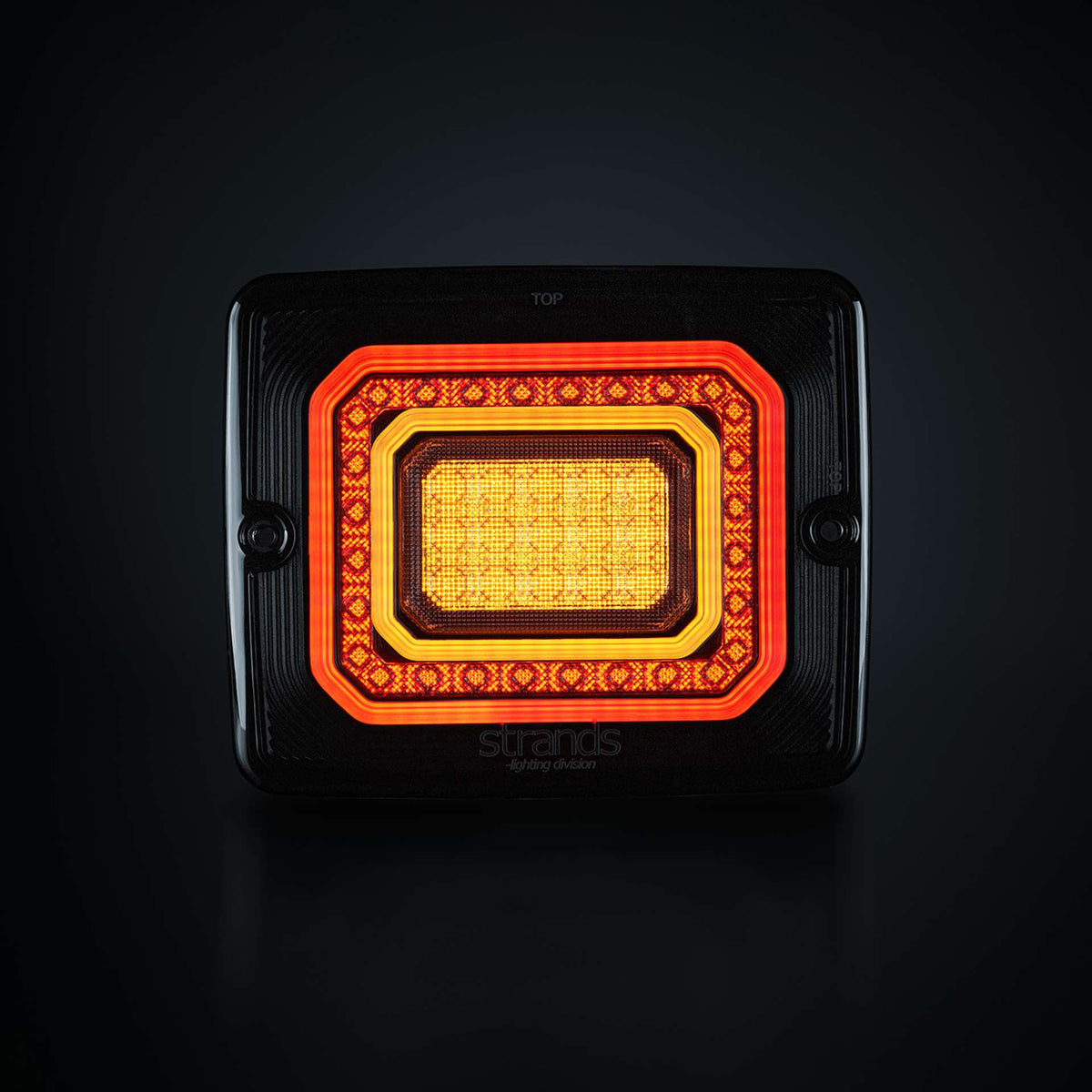

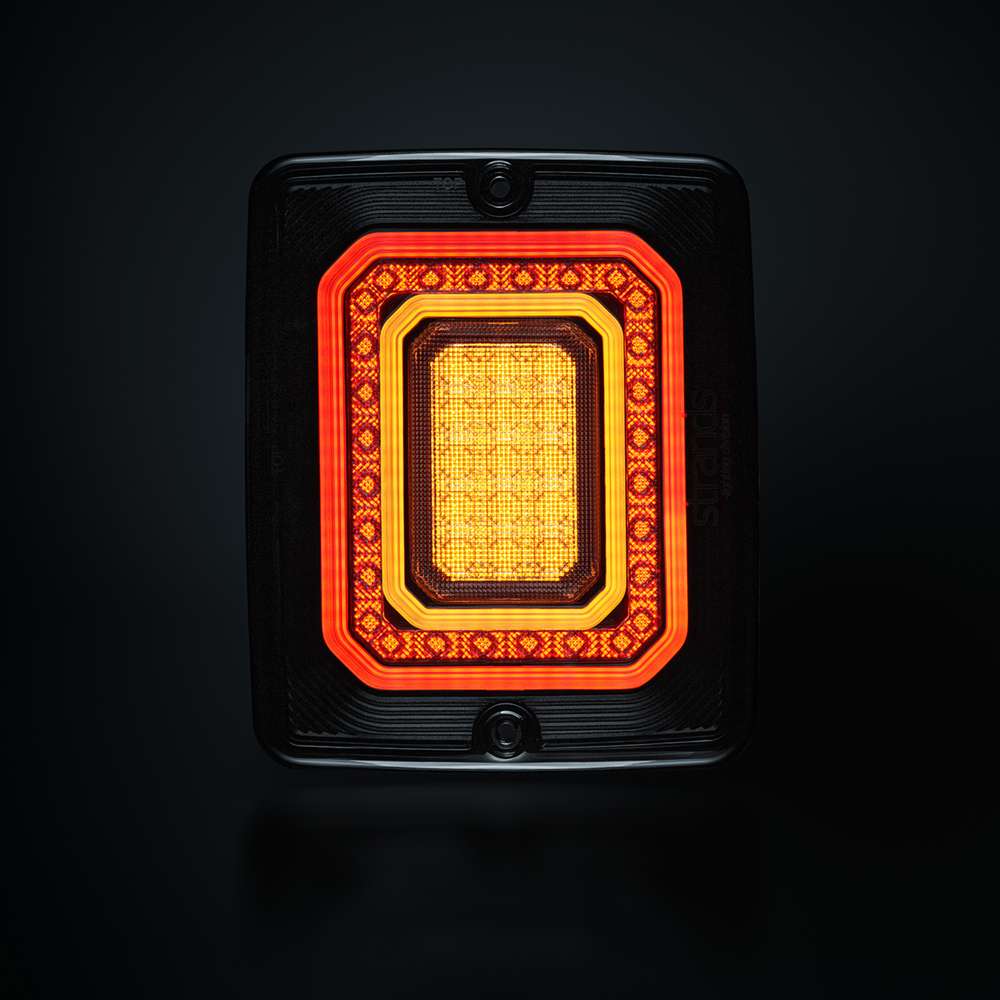

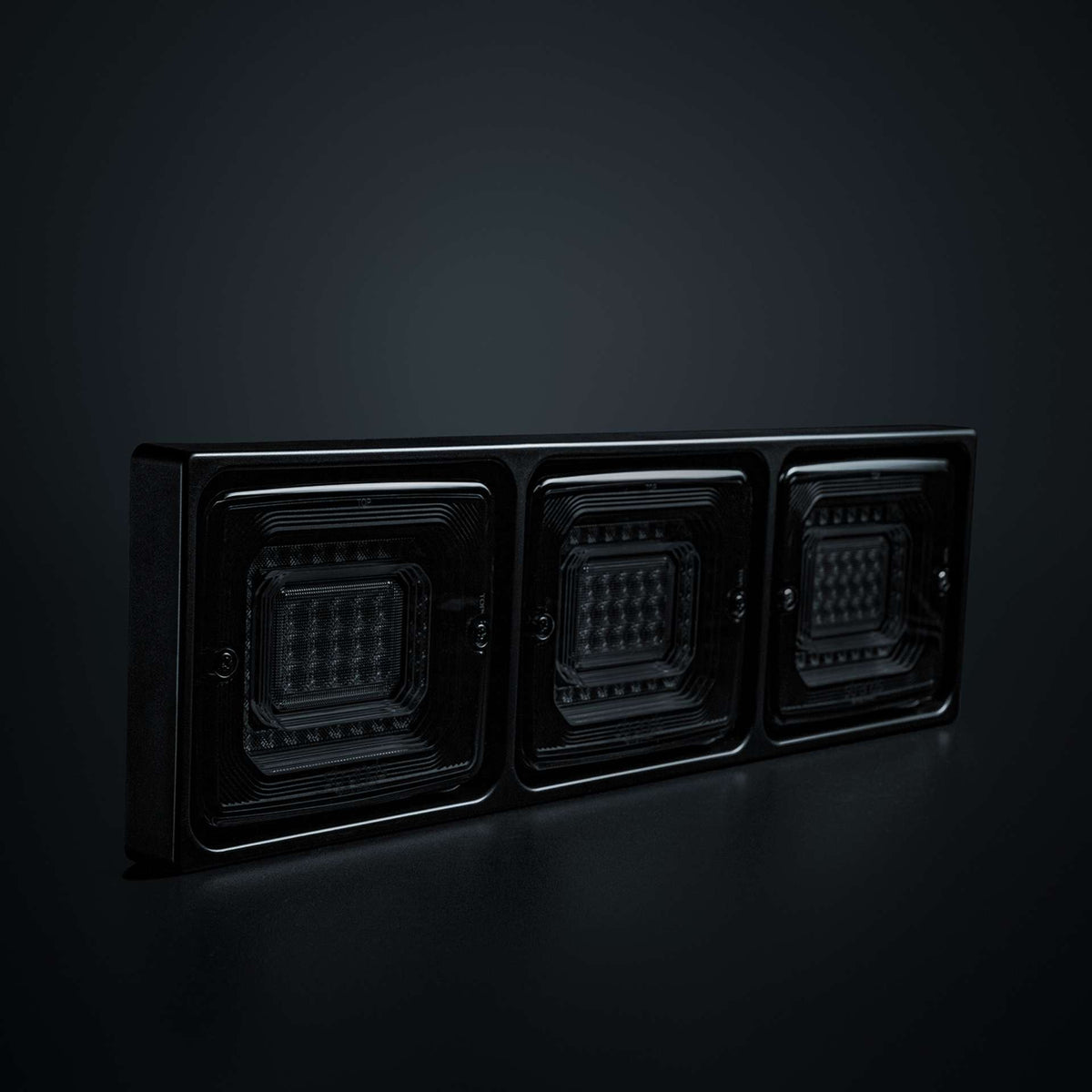

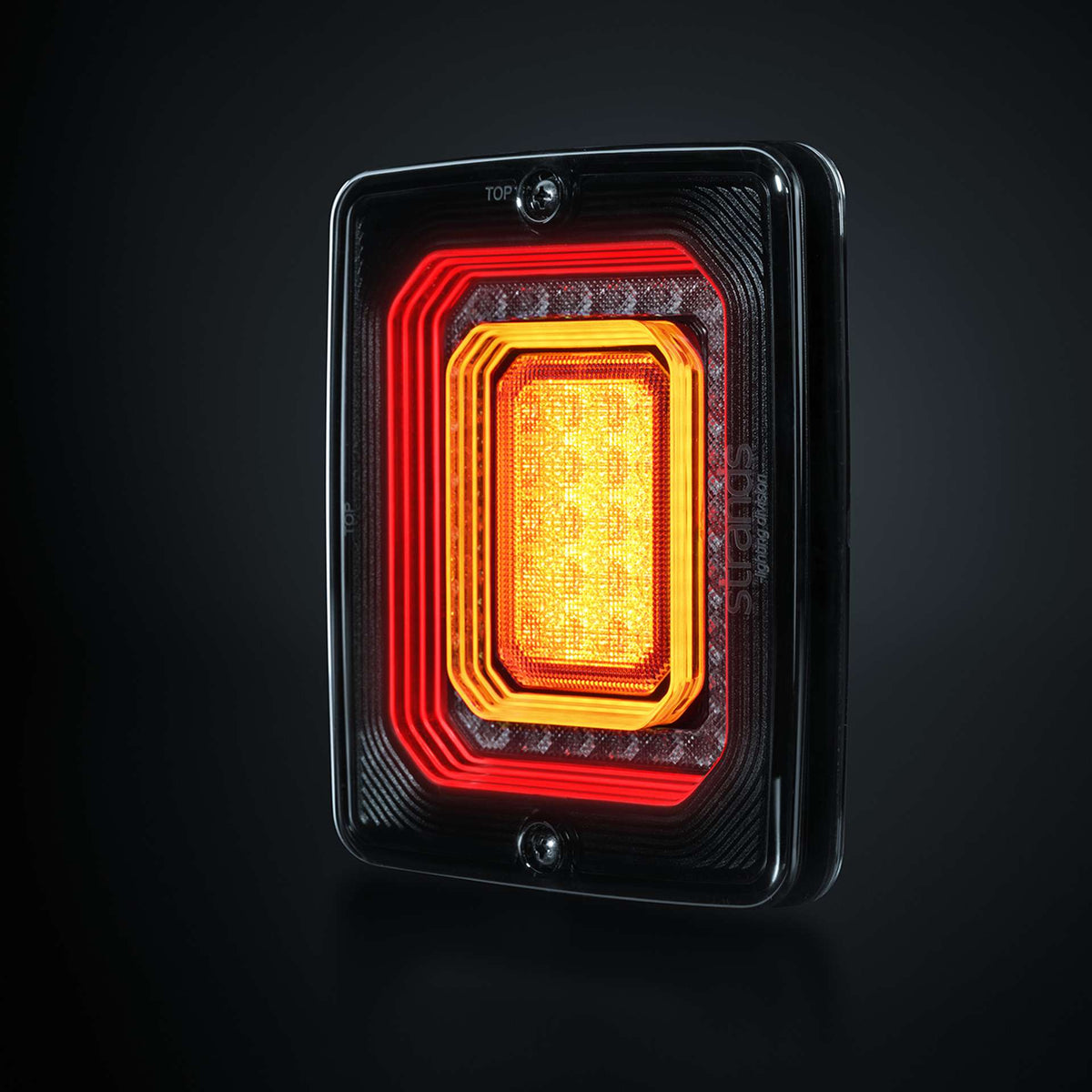

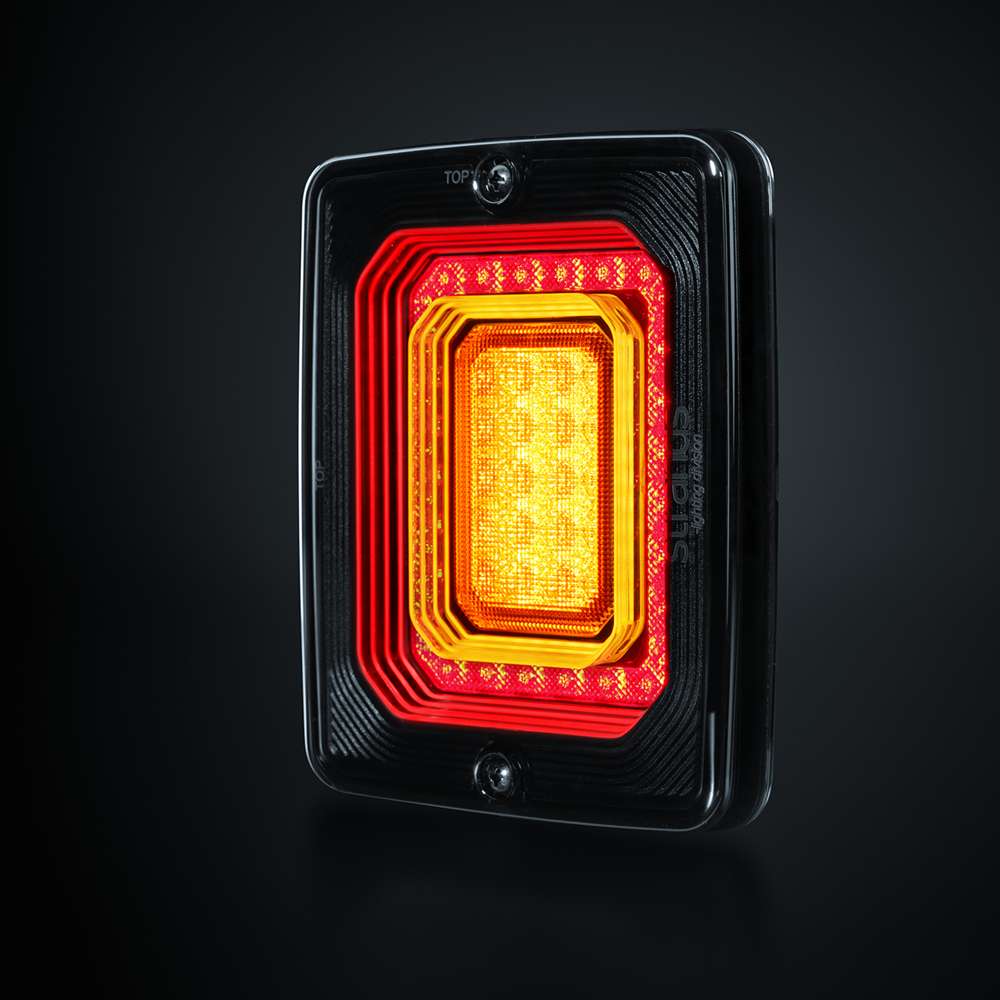

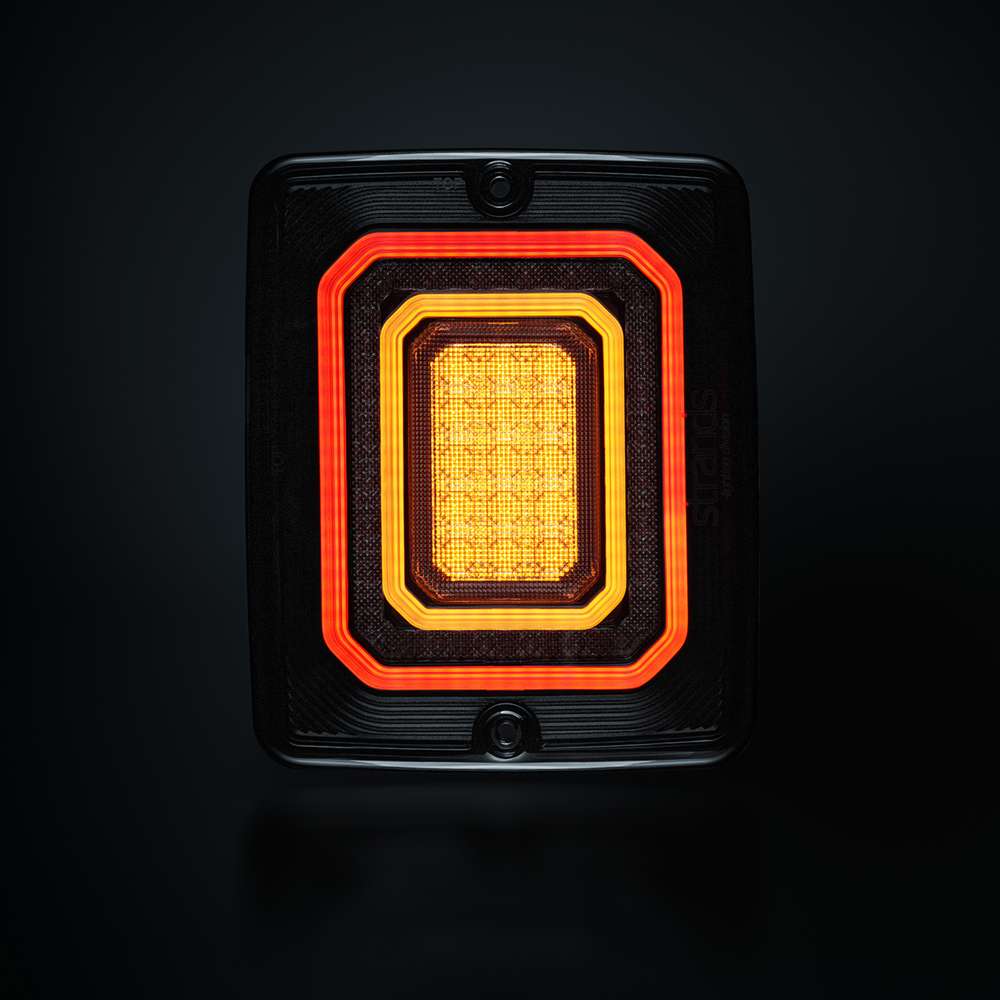

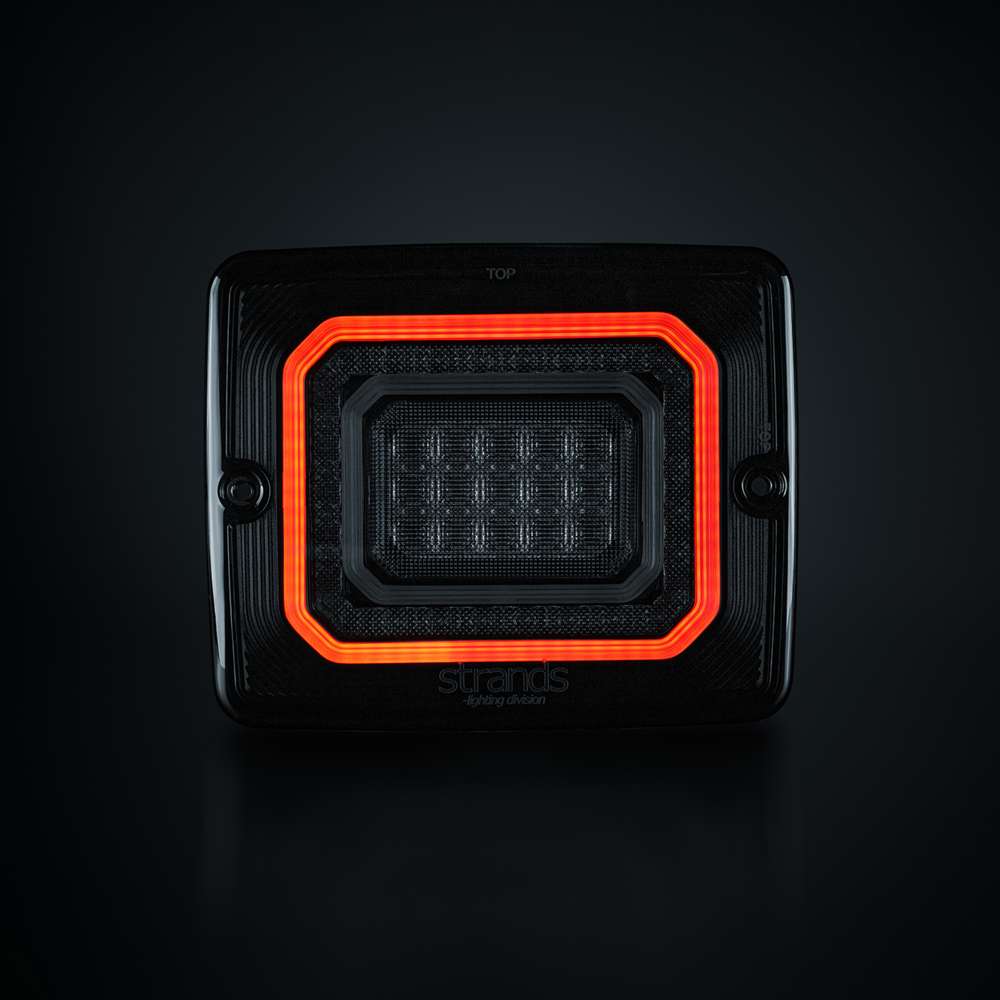

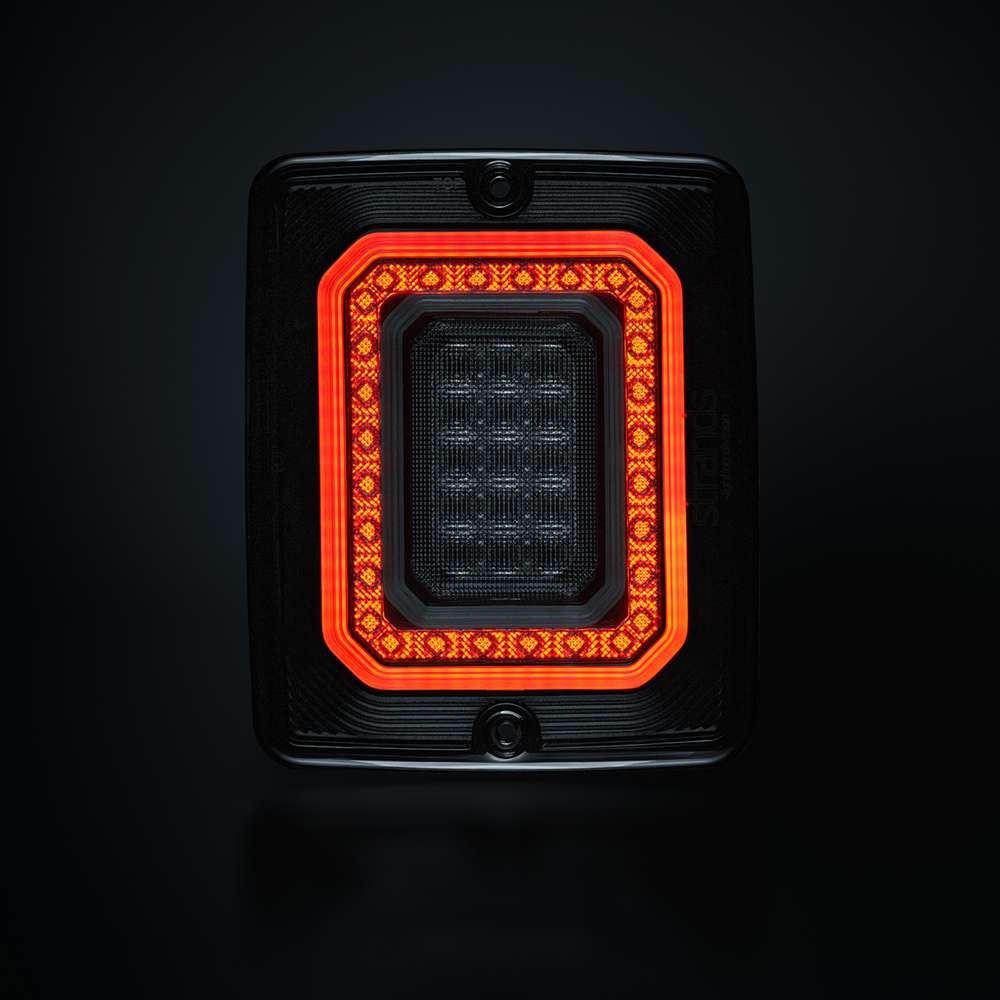

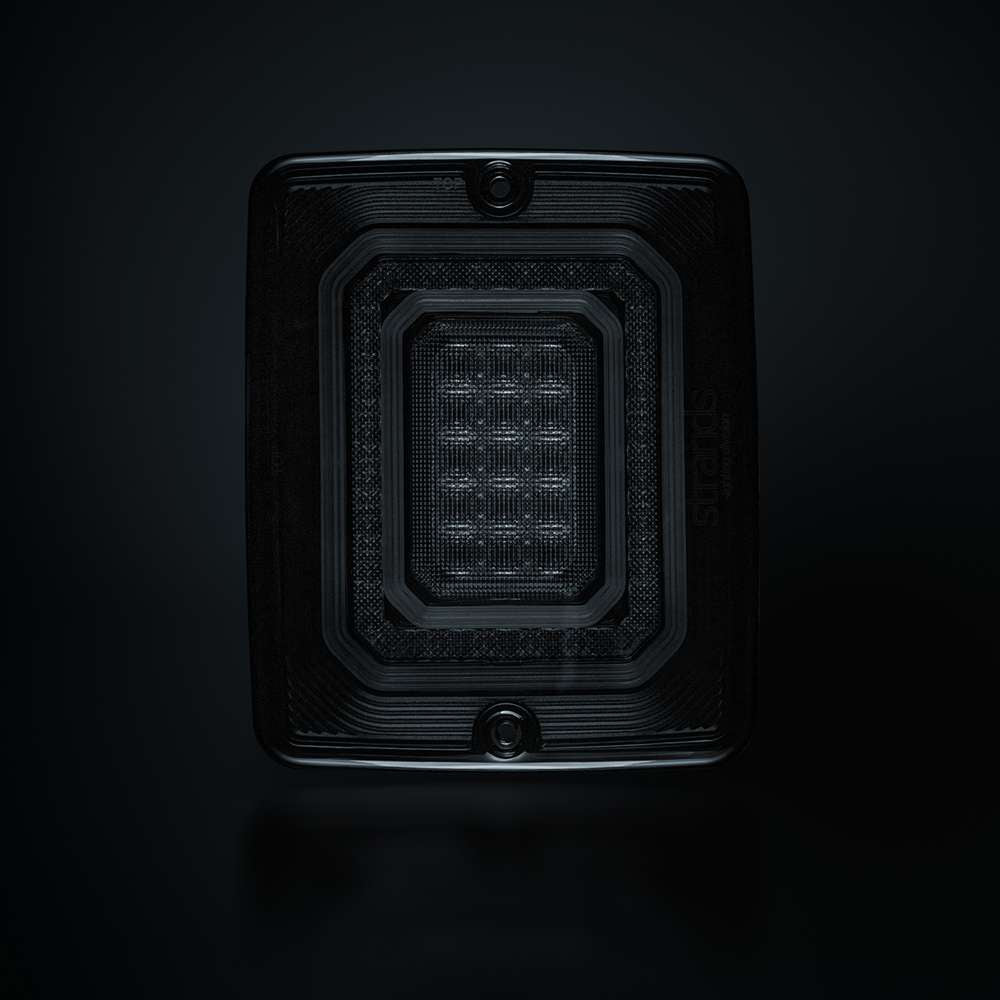

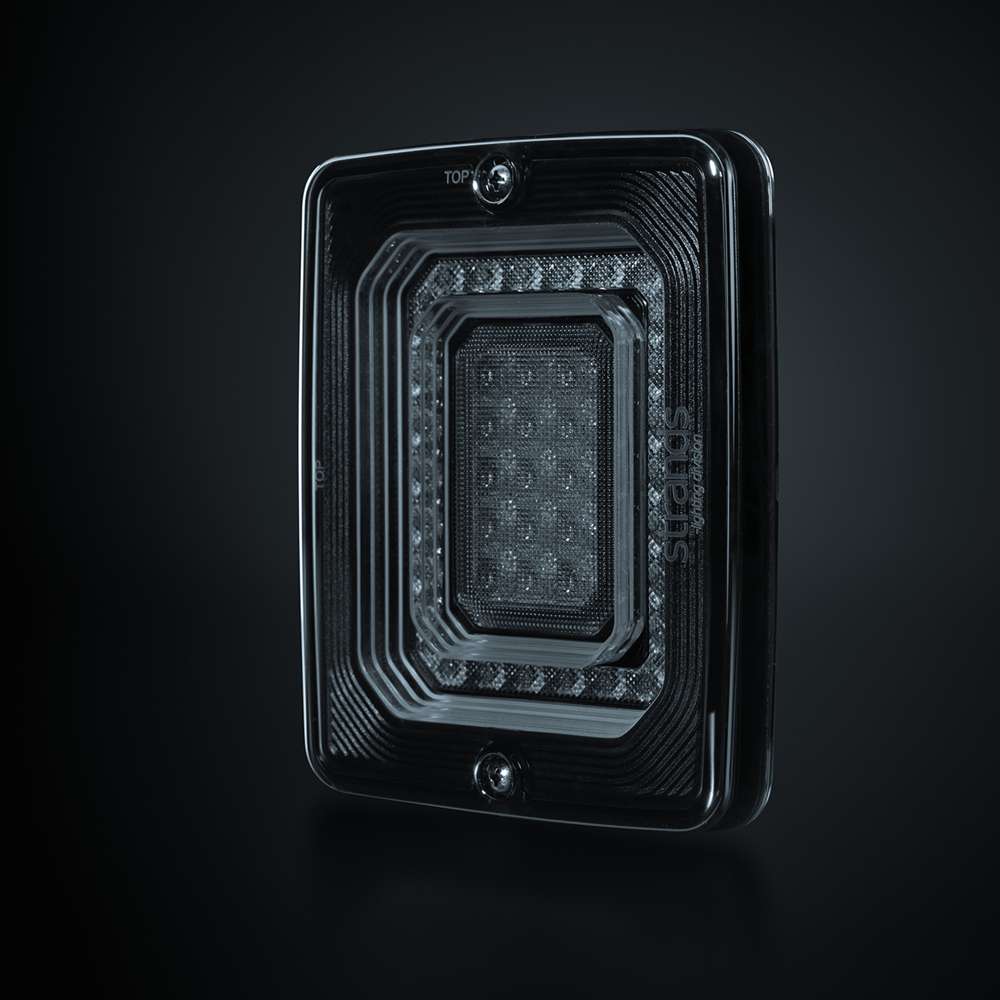

The FOR9T Illusion 3 function tail light perfectly combines the style of the unique and eye-catching FOR9T position lights with maximum functionality. These signature lights provide an undeniable and hypnotic look, contrasted against the dark lens. It features a tail light, brake light, and dynamic indicator light. Different areas of the light illuminate with different functions, creating a unique and striking effect in the FOR9T style. Thanks to the 115 mm CC and square shape, it fits all IZE LED frames (Part No. 800635-40) and rubber housings (Part No. 800112-13). This makes installation and retrofit straightforward, and upgrading your old lights simple. It’s built from durable materials, ensuring a long-lasting and resilient product. As an additional assurance of its durability, it’s backed by Strands' 3-year warranty. The Illusion is E-approved R148 for both vertical and horizontal installation. Screws, nuts, and nylon washers are included in the package.

Product Specification

• Product family
  FOR9T
• Unit
  PCS
• Voltage (DC)
  10-40V DC
• Theoretical effect
  20W
• Consumption
  15.5W
• Functions
  IndicatorBrake lightTail light
• Consumption specific function
  Brake 5WTail 4.5WIndicator 6W
• Connection
  Cable
• Cable length
  2500mm
• Color housing
  Black
• Color lens
  Dark
• Color LED's
  Red | Amber
• Material housing/chassi
  Polycarbonate
• Material lens
  Polycarbonate
• Length
  113mm
• Depth
  46mm
• Height
  110mm
• Weight
  0.37kg
• CC
  115mm
• IP-class
  IP67
• Operating temperature
  -30° - +65°C
• E-approved
  Yes
• ECE approval
  R10.06R148
