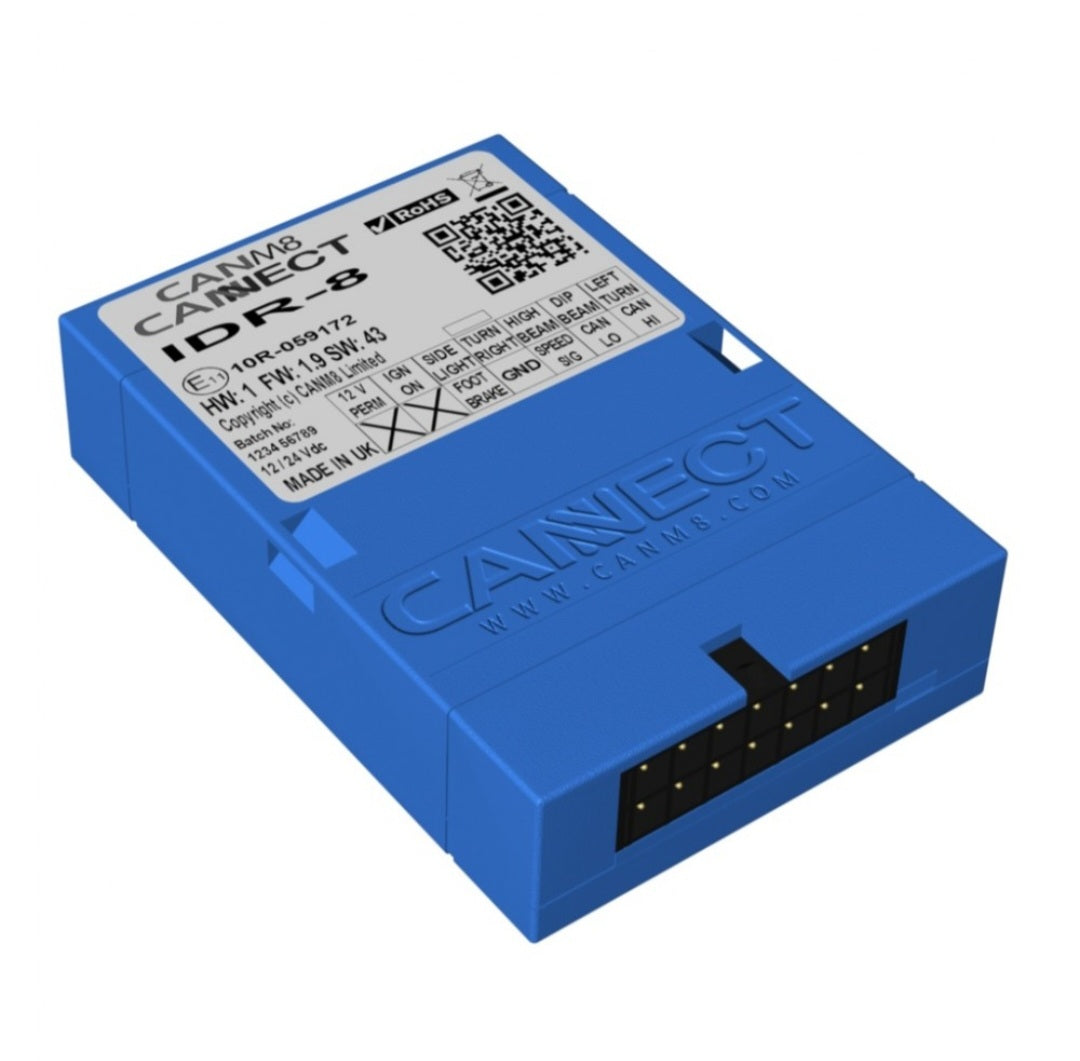

CanM8 Cannect IDR8-R
CanM8 Cannect IDR8-R
Regular price
£127.00 GBP
Regular price
Sale price
£127.00 GBP
Quantity
Couldn't load pickup availability
The CANM8 CANNECT IDR8 interface provides 8 of the most commonly used outputs on vehicles which feature CAN Bus wiring.
Outputs - Standard IDR8
| Speed Signal | > | 12v square pulsed output at approximately 4 pulses per 1 MPH. |
| Ignition On | > | 12v (1A max) when the ignition is switched on. |
| Left Indicator | > | 12v (1A max) when the left indicator is active. |
| Right Indicator | > | 12v (1A max) when the right indicator is active. |
| Service Brake | > | 12v (1A max) when the brake pedal is pressed. |
| Dipped Beam | > | 12v (1A max) when the dipped beam is active. |
| High Beam | > | 12v (1A max) when the high beam is active. |
| Side Lights | > | 12v (1A max) when the side lights are active |
Outputs - IDR8-R
| Speed Signal | > | 12v square pulsed output at approximately 4 pulses per 1 MPH. |
| Reverse | > | 12v (1A max) when Reverse Gear is selected. |
| Left Indicator | > | 12v (1A max) when the left indicator is active. |
| Right Indicator | > | 12v (1A max) when the right indicator is active. |
| Service Brake | > | 12v (1A max) when the brake pedal is pressed. |
| Dipped Beam | > | 12v (1A max) when the dipped beam is active. |
| High Beam | > | 12v (1A max) when the high beam is active. |
| Side Lights | > | 12v (1A max) when the side lights are active |
Applications
The CANM8 CANNECT IDR8 is ideal for use with Data Recording Systems or for any electronic device which requires multiple signal inputs. All outputs (with the exception of speed signal) are short circuit protected and rated at 1A.
