CANM8 CANNECT HIGHBEAM

01332 855031

0

CANM8 CANNECT HIGHBEAM

CAN Bus Highbeam

Installation Details

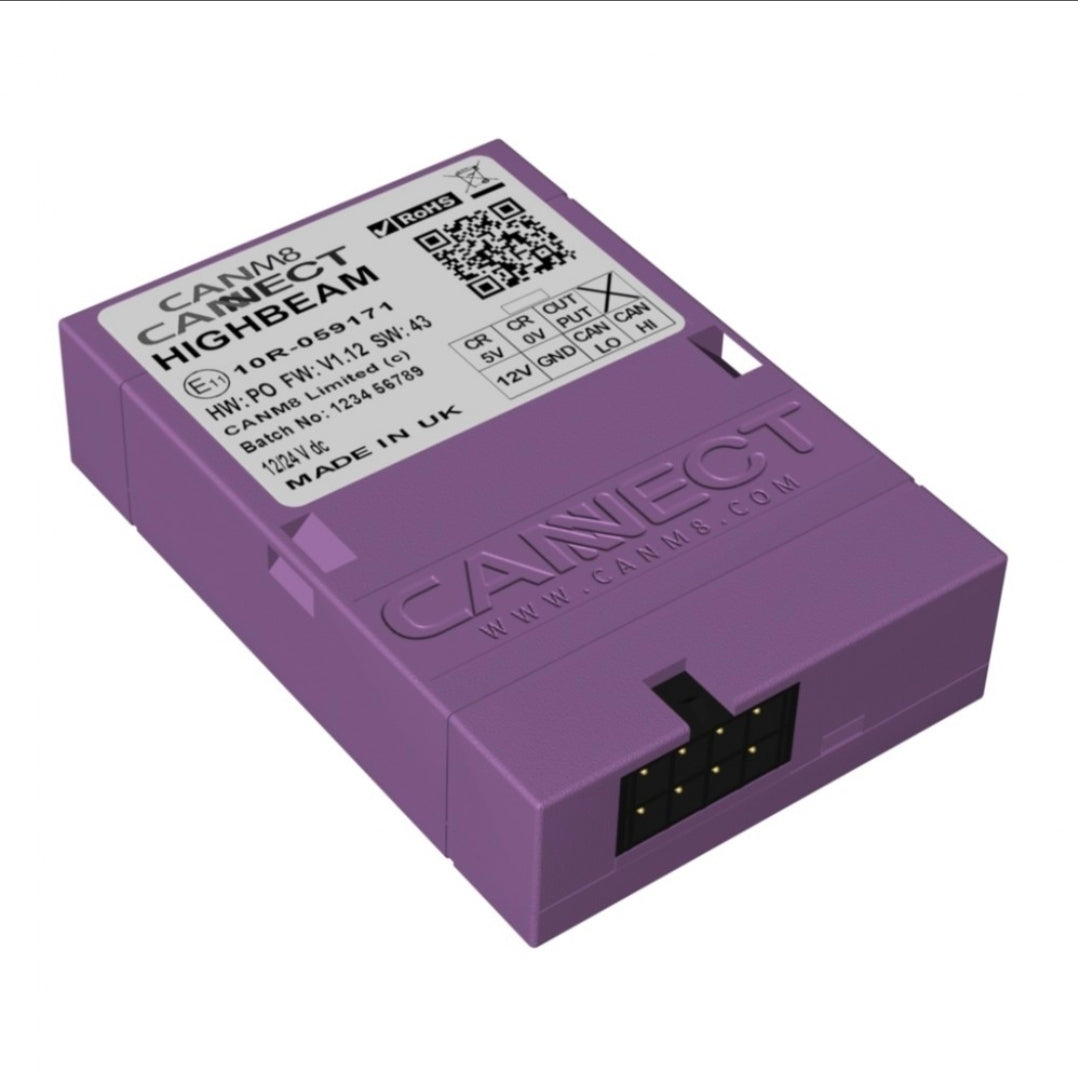

The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.



The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.





LED Status Details



 Flashing Red: Searching for CAN information.
Solid Red: CAN Data received but vehicle not yet identified.
Solid Green: CAN Data received and vehicle type recognised.
Flashing Green: Vehicle speed detected.





Wiring Harness Details



RED
>
 Connect via a 5A fuse to a PERMANENT 12v supply.
BLACK
>
 Connect to a good chassis GROUND point.
WHITE
>
 CAN HI Connection : Vehicle CAN HI wire.
BLUE
>
 CAN LO Connection : Vehicle CAN LO wire.
PURPLE
>
 High Beam Output : 12v (1A max) when the high beam is active.





The CANM8 CANNECT HIGHBEAM interface is a single output CAN Bus interface which provides a quick solution for detecting high beam activity on vehicles which feature CAN Bus wiring.


Outputs

High Beam   >   12v (1A max) when the high beam is active.



Applications

The CANM8 CANNECT HIGHBEAM is an ideal solution for vehicles which require the installation of additional driving lights (via a relay) which are switched on when the vehicle high beam is active. This interface allows quick and easy installation which integrates the control of additional driving lights with the vehicle's high beam control.
