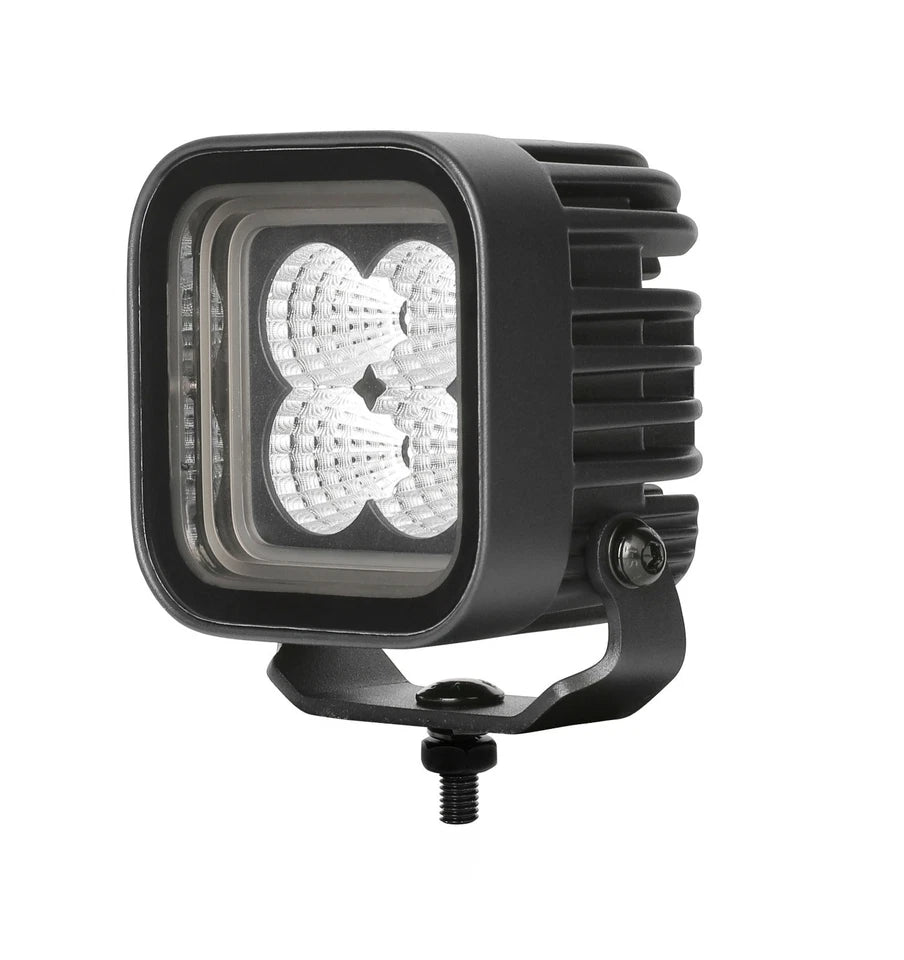

3D LED Amber Red DRL, Powerful work lamp 12v-24v CUBE

Compact LED halogen combining powerful work lighting and stylish outline in one device.
With an extremely robust housing, high protection class and E-mark (E9) and EMC ECE R10 certification, the lamp is suitable for professional use in the automotive, construction and agricultural sectors.

Main features

🔦 LED Lighting

• Work light: 30W diffused beam
• LED chips: SMD

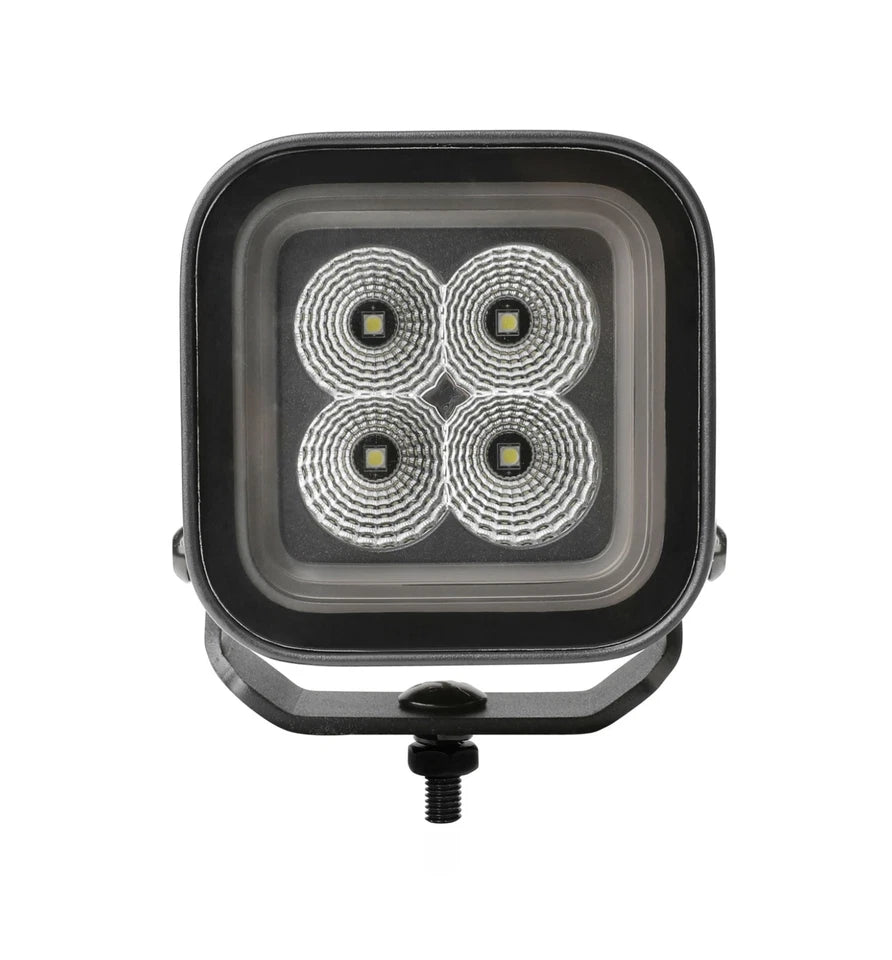

• LED quantity: 4 pcs. (working light) + 42 pcs. (clearance light)
• Theoretical luminous flux: 3400 lm
• Actual luminous flux: 2600 lm
• Light temperature: 6000–6500K (cool white)

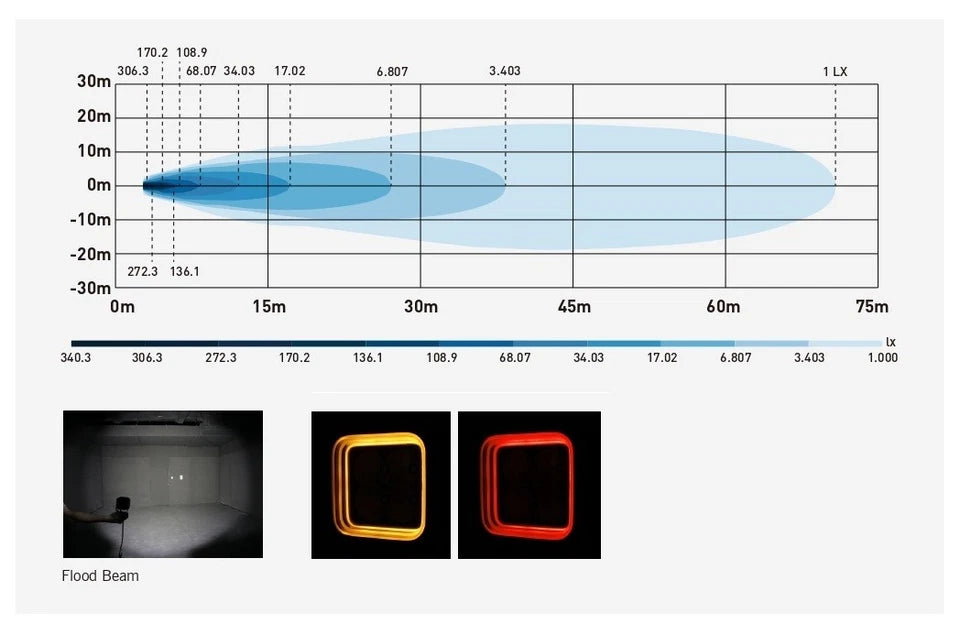

• Illumination: 1 lux / 70 m
• Operating voltage: 10V–30V DC
• Actual consumption: 32W at 13.5V

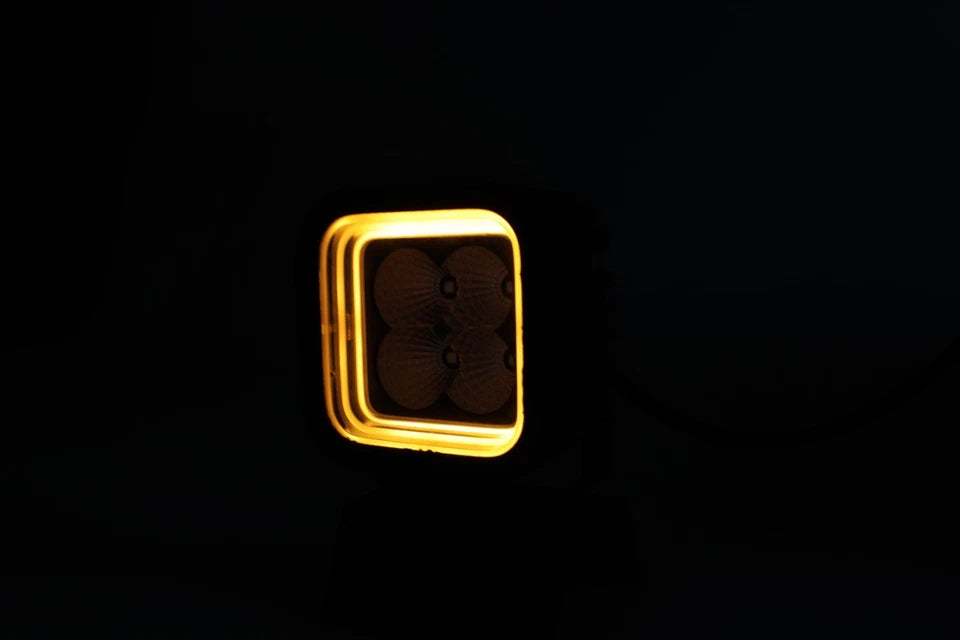

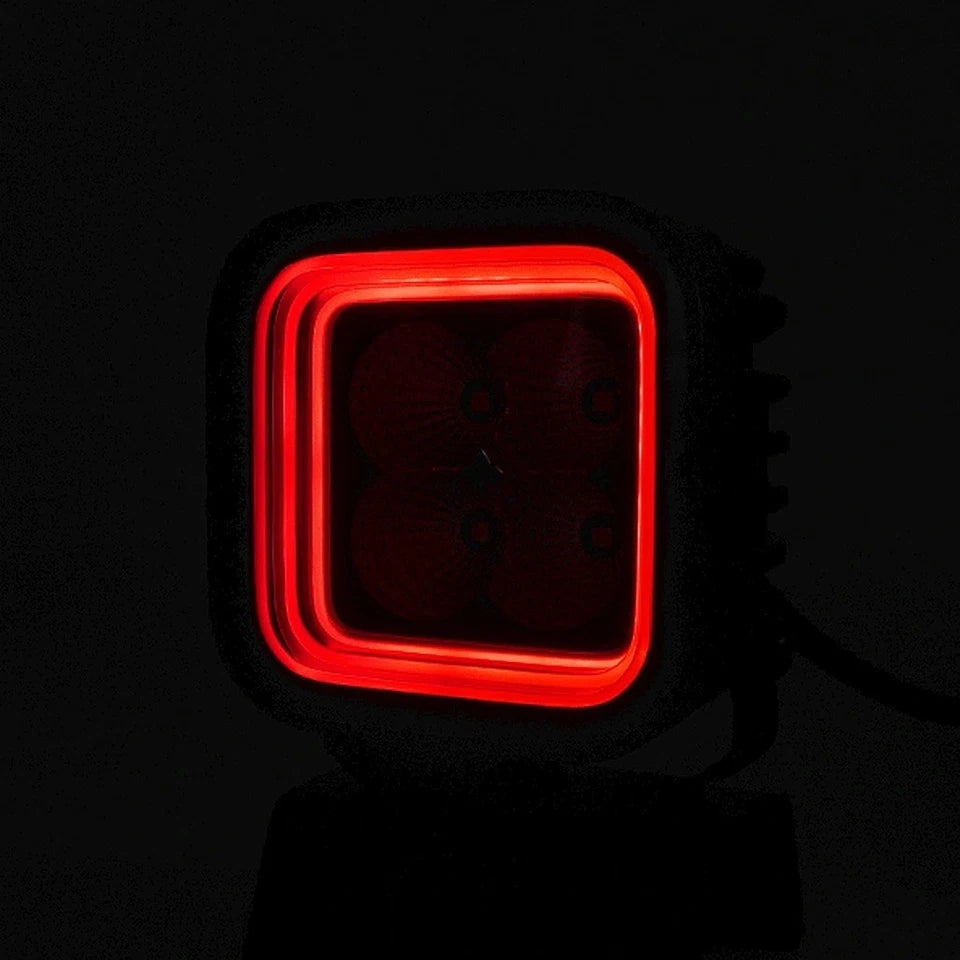

💡Two-tone marker light

• Colors: Yellow, Red
• Located on the periphery of the housing for maximum visibility and modern design

Materials and construction

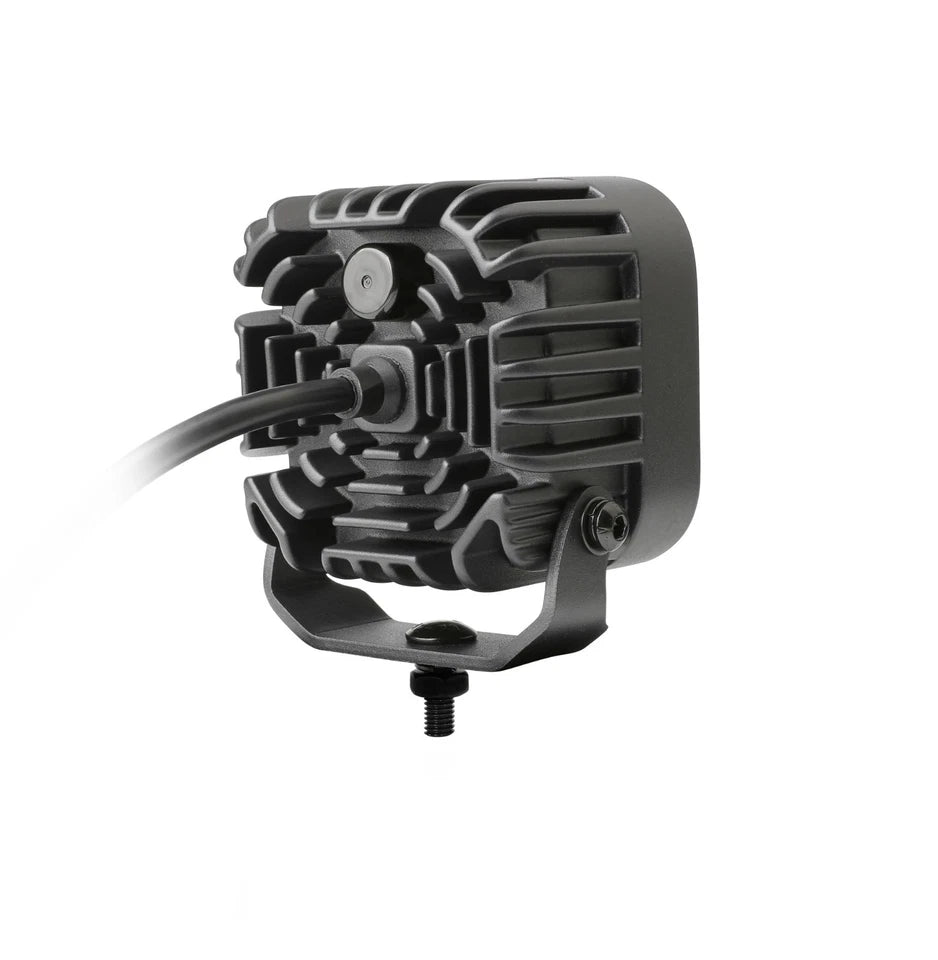

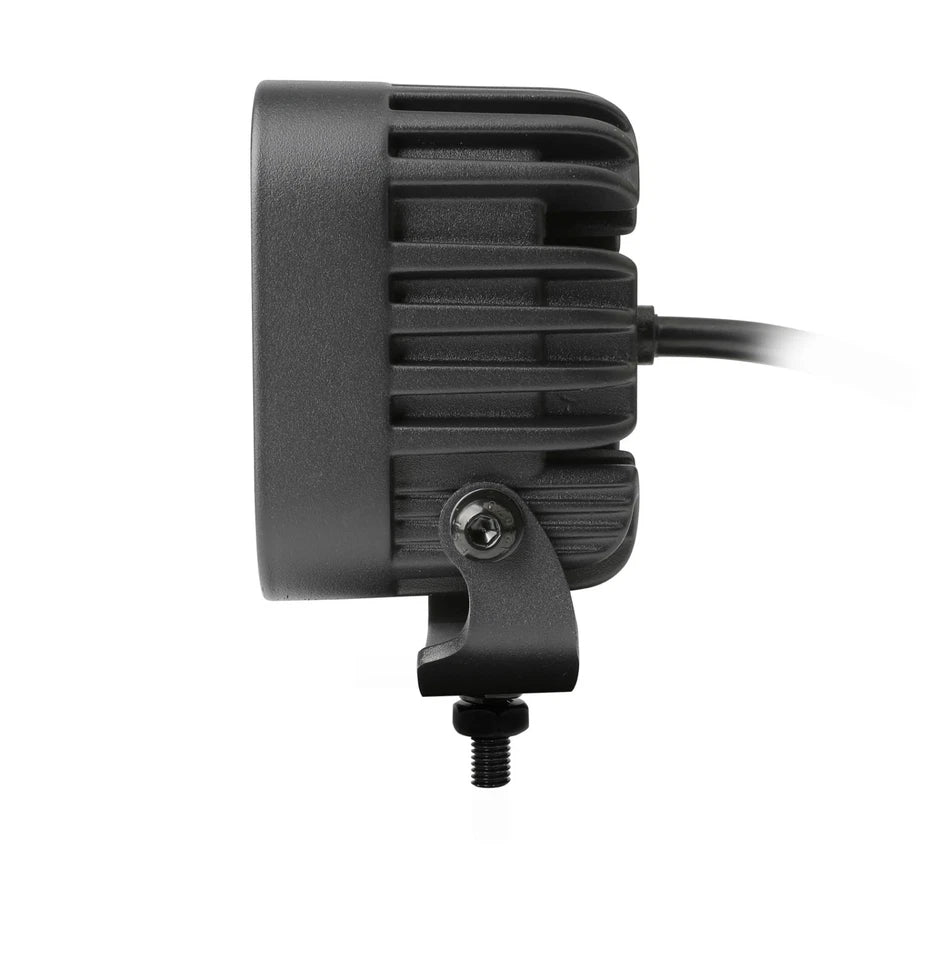

• Housing: Aluminum with cooling fins
• Bracket: Stainless steel
• Lens: Impact-resistant polycarbonate
• Connection: Cable (30–35 cm long)

Protection class

• IP67 & IP69K – complete protection against dust, water and high-pressure jets
• Operating temperature: –40°C to +60°C

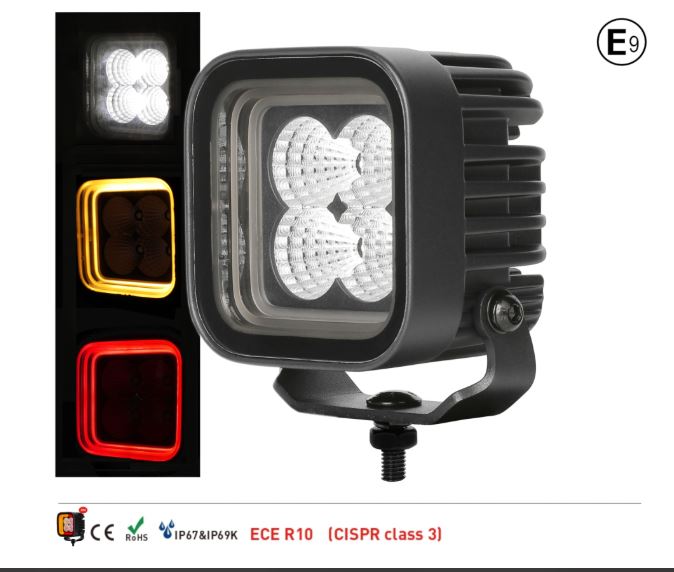

Certifications

• E-mark E9
• EMC ECE R10 (CISPR Class 3) – electromagnetic compatibility

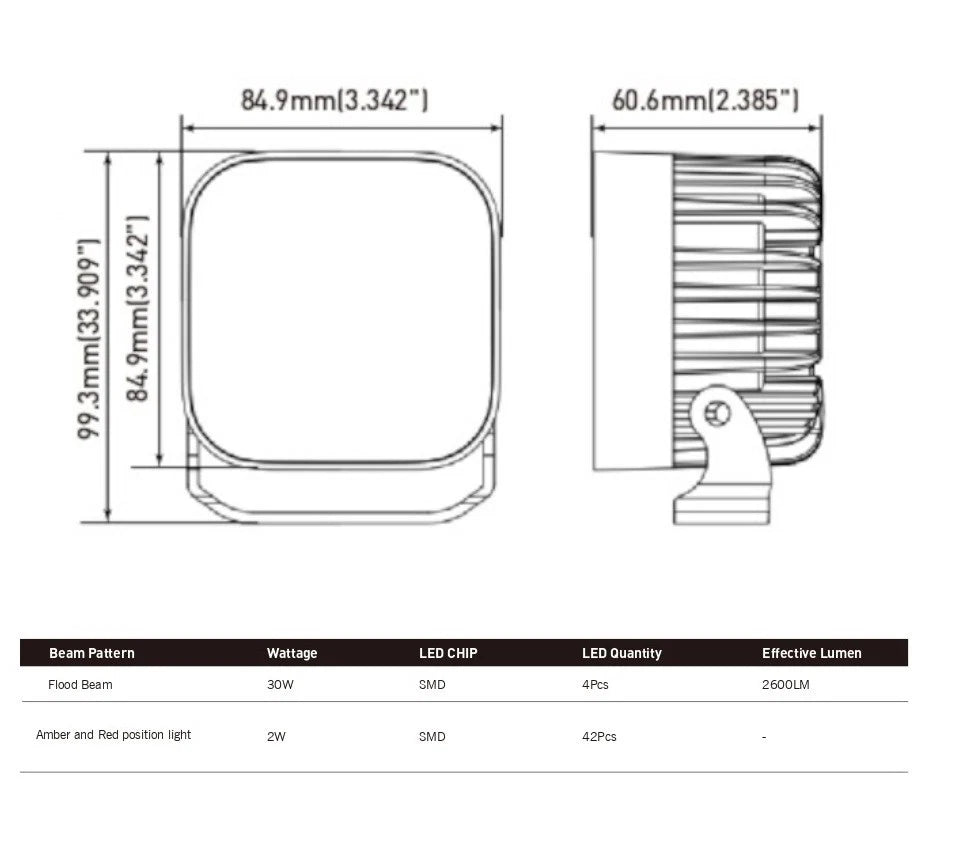

Dimensions

• Width: 84.9 mm
• Height: 99.3 mm
• Depth: 60.6 mm

The compact size and powerful flood beam provide wide and even illumination.
Suitable for work machines, SUVs, off-road vehicles, trucks and specialized equipment.
